Simonswerk Concealed

THE REVOLUTIONARY CONCEALED HINGE SYSTEM

TECTUS® System Features

No other hinge can do all of this.

• Easy Adjustment in 3 Dimensions: For precise and efficient installation and maintenance of flush doors.

• High Load Capacities: From 88 lbs. to 660 lbs. – with only two hinges installed.

• Wide Range of Premium Quality Finishes: 12 standard architectural finishes. Custom finishes possible.

• Mainenance-Free: Tested beyond 1,000,000 cycles without any wear. No oil or grease.

• 180° Opening Angle

• UL Listed Models: All but TE 240 3D provide 20 min./ TE 525 3D provides a 3-HOUR rating.

• Models for Doors with Cladding up to 8mm (~5/16"): For laminates (e.g. mirror, stone facing, etc.)

• Capability for Permanent Power Transfer: For electric lock and security systems – TECTUS® ENERGY.

• Complete Milling and Installation Support: Installation tools and templates are available from your dealer.

• Versatile: Works for wood, metal (with SZ Receiver) and casing frames (with FZ Fixing Plate).

• Engineered and Made in Germany by Simonswerk: Unquestionable manufacturing standards.

TECTUS® TE 240 3D – For unrebated & rebated flush residential doors

Specs

• Capacity: w/ 2 installed: 88 lbs [40 kg]
• Height: 6.1" [155mm]
• Widths: frame: 0.82"[21mm] / leaf: 0.7" [18]
• Depth: frame: 0.94"[24mm] / leaf: 1.06"[27]
• Min. Door Thickness: 1" [25mm]
• Router Bit Diameter: 16mm

Features

• For wood, casing, steel and alu frames
• Opening angle up to 180°
• UL listed: not currently rated
• Continuously adjustable in 3 dimensions
• Side: + /– 3 mm;  Height : + /– 3 mm;  Depth : + /– 1.5 mm

TECTUS® TE 340 3D – For unrebated residential doors

Specs

• Capacity: w/ 2 installed: 176 lbs [80 kg]
• Height: 6.3" [160mm]
• Widths: frame: 1.1"[28mm] / leaf: 1.1" [28]
• Depth: frame: 1.22"[31mm] / leaf: 1.32"[33.5]
• Min. Door Thickness: 1-3/8" [40mm]
• Router Bit Diameter: 24mm

Features

• For wood, casing, steel and alu frames
• Opening angle up to 180°
• UL listed : 20 minutes
• Continuously adjustable in 3 dimensions
• Side: + /– 3 mm;  Height : + /– 3 mm;  Depth : + /– 1 mm

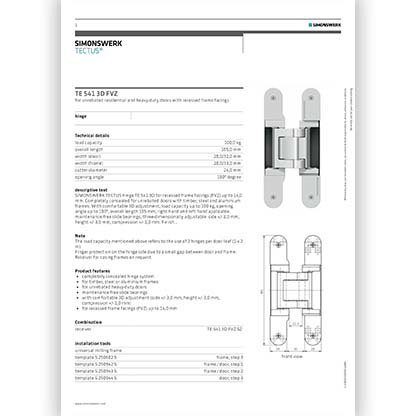

TECTUS® TE 540 3D – For unrebated heavy duty doors with casing frames

Specs

• Capacity: w/ 2 installed: 264 lbs [120 kg]
• Height: 7.874" [200mm]
• Widths: frame: 1.26"[32mm] / leaf: 1.26" [32]
• Depth: frame: 1.38"[35mm] / leaf: 1.44" [36.5]
• Min. Door Thickness: 1-5/8" [40mm]
• Router Bit Diameter: 24mm

Features

• For wood, casing, steel and alu frames
• Opening angle up to 180°
• UL listed : 20 minutes
• Continuously adjustable in 3 dimensions
• Side: + /– 3 mm;  Height : + /– 3 mm;  Depth : + /– 1 mm

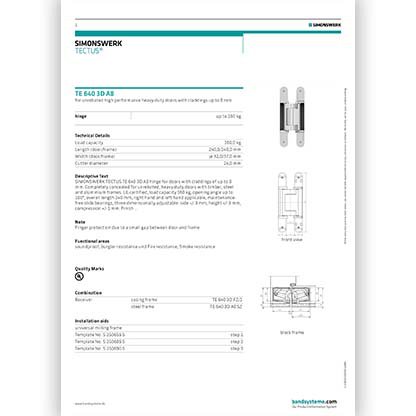

TECTUS® TE 640 3D – For unrebated high performance heavy duty doors

Specs

• Capacity: w/ 2 installed: 440 lbs [200 kg]
• Height: 9.4" [240mm]
• Widths: frame: 1.26"[32mm] / leaf: 1.26" [32]
• Depth: frame: 1.38"[35mm] / leaf: 1.44"[36.5]
• Min. Door Thickness: 1-9/16" [40mm]
• Router Bit Diameter: 24mm

Features

• For wood, casing, steel and alu frames
• Opening angle up to 180°
• UL listed: 20 minutes
• Continuously adjustable in 3 dimensions
• Side: + /– 3 mm;  Height : + /– 3 mm;  Depth : + /– 1 mm

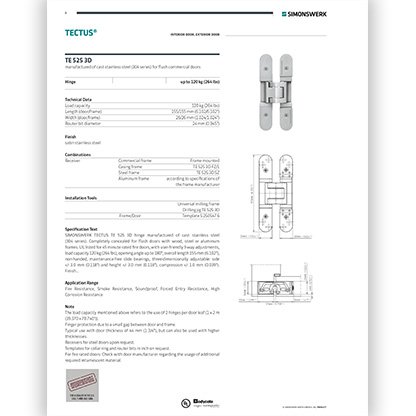

TECTUS® TE 525 3D Series – For flush commercial doors

Specs

• Capacity w/ 2 installed: 264 lbs [ 120 kg ]
• Height: 6.1" [ 155mm ]
• Widths: door & frame: ~1"/ [ 26mm ]
• Depth: door: 1.38" / frame: 1.44" [36/33mm]
• Min. Door Thickness: 1-1/4" [25mm]
• Router Bit Diameter: 24mm

Features

• TE 525 3D: Cast in Stainless Steel
• TE 526 3D: Die Cast from Stainless Steel
• TE 527 3D: Zinc-plated Mild Steel
• Superior corrosion resistance [maintenance-free]
• For wood, casing, steel and alu frames
• Opening angle up to 180°
• UL listed: 3-Hours
• Continuously adjustable in 3-dimensions
• Side: + /– 3 mm;  Height : + /– 3 mm;  Depth : + /– 1mm

TECTUS® Energy Models

Concealed Hinges with Permanent Power Transfer

ENERGY Hinges preserve all the technical and visual features of their counterparts in the TECTUS® hinge system, including high load capacities, hassel-free installation and maintenance, and good looks when in the open position. Other features include:

• Tamper-resistant cable is compatible with most designs for current electric locks, media devices, LED displays and other powered fittings.
• Easy-to-fit pluggable/unpluggable reverse-polarity-protected plug connection with integrated tension relief.
• Opening angle of 180° without pinching or damage during operation.
• Rugged cable supply : All Energy hinges feature a 16-wire integrated ribbon cable with plug connection to round cable at both ends. "Integrated" means that the cable is not visible at all (no funky wrap-arounds), and so resists anyone tampering with it.
• Cable set consists of 2 round cables both with reversepolarity-protected connecting socket for the special ribbon cables: one 3.0 m (118") round cable for frame ; one 3.0 m (118") round cable for door leaf.
• Max. Voltage : 60 V  /  Max. Current : 0.8 A
• Finishes : available in two standard finishes, F1-Satin Chrome Look and SSL-Stainless Steel Look.
• Other finishes available. Contact Penner for minimum quantities and leadtimes.
• Cable/Hinge System tested to 1,000,000 cycles.
