Sargent 10 Line

SARGENT® 10 Line is a heavy duty cylindrical key-in-lever handle lockset exceeds by five times the ANSI 156.2 Series 4000 Grade 1 standards.

At over 4 million cycles, the 10 Line beats the competitor by 30%. As for abusive force, this lock endures more than two times the standard without allowing entry.

The 10 line trim is designed to conform to national and state fire and handicapped requirements.

Functions
Designs

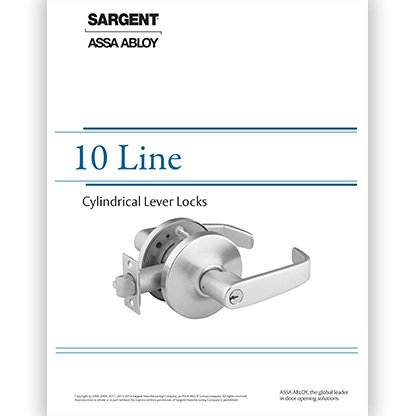

Specifications
Finishes
Downloads

Shaded lever in diagrams, indicates rigid at all times.

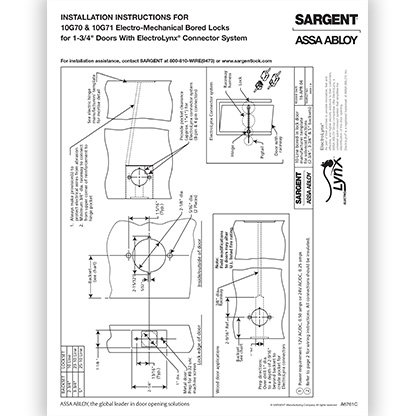

70 Electromechanical (Fail Safe)

10G70: Power OFF, unlocks outside lever
• Deadlocking latch
• Key retracts latch
• Inside lever always allows egress

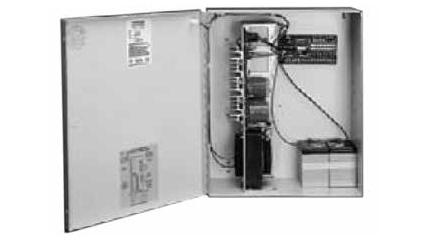

• Voltage requirements: 12VDC or 24VDC. Regulated; always specify voltage
• 250mA at 24VDC or 500mA at 12VDC
• Provided with ElectroLynx® 8-Pin Connector

71 Electromechanical (Fail Secure)

10G71: Power OFF, locks outside lever
• Deadlocking latch
• Key retracts latch
• Inside lever always allows egress
• Voltage requirements: 12VDC or 24VDC. Regulated; always specify voltage
• 250mA at 24VDC or 500mA at 12VDC
• Provided with ElectroLynx® 8-Pin Connector

04 Storeroom or Closet (F86)

• Deadlocking latch
• Latch by lever inside or key outside
• Outside lever rigid at all times

05 Entrance or Office (F109)

• Deadlocking latch
• Latch by either lever unless outside lever is locked by push/turn button in inside lever
• Push button released by key outside or lever inside
• Turn button must be released manually
• Key retracts latch when outside lever is locked

24 Entrance or Office (F82)

• Deadlocking latch
• Latch by either lever unless outside lever is locked by push button in inside lever
• Push button released by key or turning inside lever
• Closing door does not unlock outside lever or release button
• Key in outside lever retracts latch when outside lever is locked and releases inside push button

37 Classroom (F84)

• Deadlocking latch
• Latch by either lever unless outside lever is locked by key
• Key in outside lever locks or unlocks outside lever and retracts latch
• Inside lever always operative

44 Service Station (F92)

• Deadlocking latch
• Latch by either lever unless outside lever is locked by push button in inside lever
• Key retracts latch when outside lever is locked
• Push button released by turning inside lever, closing door, or by key in outside lever unless push button is fixed in locked position by turning coin slot in inside lever
• Slotted inside button must be manually released

50 Hotel, Dormitory or Apartment (F93)

• Deadlocking latch
• Latch by key outside and lever inside
• Outside lever always rigid
• Depressing push button when door is closed shuts out all keys except emergency key and projects visual occupancy indicator in cylinder face
• Push button released by turning inside lever automatically reactivating all keys and retracting visual occupancy indicator
• Lock out key fixes push button in locked position, shutting out all keys except emergency
• Push button fixed by lockout key must be released manually
• Lock out key provided

54 Corridor, Dormitory (F50)

• Deadlocking latch
• Latch by either lever unless outside lever is locked by push button inside or key outside
• Rotating inside lever or closing door releases inside button only, but does not unlock the outside lever if locked by key
• Key outside locks or unlocks outside lever and also retracts latchbolt when locked

16 Classroom Security, Apartment, Exit, Privacy (F88)

• Deadlocking latch
• Latch by either lever unless outside lever is locked by key in inside lever
• Key in outside lever retracts latch when outside lever is locked
• Inside lever always operative

17 Utility, Asylum or Institutional (F87)

• Deadlocking latch
• Both levers rigid at all times
• Latch by key either side
• Use only on rooms with more than one exit

26 Store or Storeroom (F91)

• Deadlocking latch
• Latch by either lever
• Key in either lever locks or unlocks both levers

30 Communicating (F80)

• Deadlocking latch
• Latch by either lever
• Key in either lever locks or unlocks its own lever only
• Use only on rooms with more than one exit

38 Classroom Security Intruder

• Deadlocking latch
• Latch by either lever unless outside lever is locked by key
• Key in either lever locks or unlocks outside lever
• Inside lever always operable
• Locked indication on inside rose standard with this function

13 Exit (F89)

• Deadlocking latch
• Latch by inside lever
• Outside lever rigid at all times

15 Passage (F75)

• Latch by either lever

15-3 Exit or Communicating

• Deadlocking latch
• Blank rose outside
• Latch by lever inside
• Minimum clearance of 1-1/8" on single doors and 2-1/4" between double doors

65 Privacy/Bathroom (F76)

• Latch by either lever unless outside lever is locked by push button in inside lever
• Turning inside lever or closing door releases button
• Emergency button in outside lever unlocks, with use of a blade screwdriver in outside lever and releases inside button

68 Hospital Privacy

• Latch by either lever unless outside lever is locked by push button in inside lever
• Turning inside lever or closing door releases button
• Rotating thumbturn in outside lever unlocks the outside lever and releases the inside button
• Not available in the “J” lever design

93 Single Lever Pull

• For wood or custom hollow metal doors
• Lever and rose attached by two through-bolts and two surface applied screws
• Requires special door preparation; consult Penner

94 Double Lever Pull

• For wood or custom hollow metal doors
• Lever and rose both sides by two through-bolts and four surface applied screws
• Requires special door preparation; consult Penner

94-2 Double Lever Pull

• Lever and rose attached by two through-bolts and four surface applied screws
• Dummy latch plate
• Requires special door preparation; consult Penner

B - lever

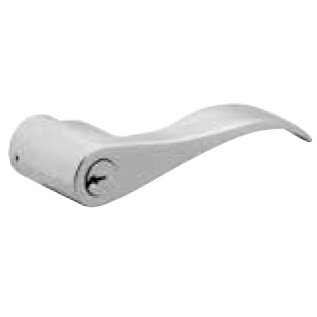

G - decorative lever

Gulfport design - Coastal Series

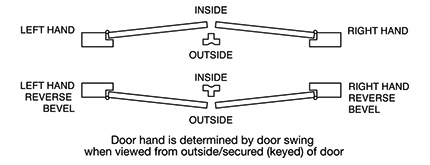

Handed

G - rose

Heavy wrought

3-1/2" diameter

3/8" rise

J - lever

L - lever

L - rose

Heavy wrought

3-1/2" diameter

5/8" rise

P - lever

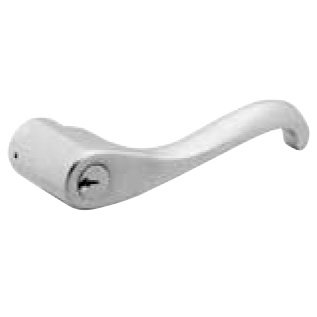

Y - decorative lever

Yarmouth design - Coastal Series

Handed

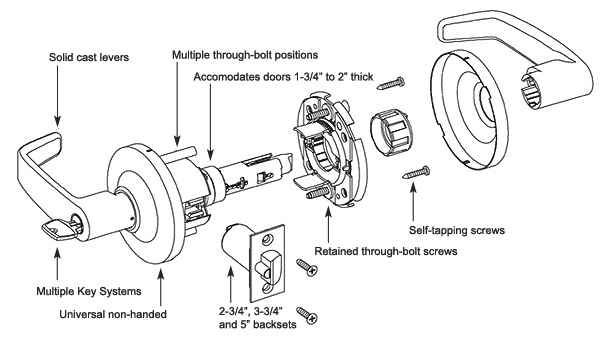

Sargent 10 Line Cylindrical Locks

Strength, Durability and Security

Cycle Test: Exceeds 5 times A156.2 Grade 1 requirements
Abusive Locked Lever Torque- without entry gained: Exceeds 1.5 times A156.2 Grade 1 requirements
7 YEAR LIMITED WARRANTY - no service required to maintain warranty

Convenience

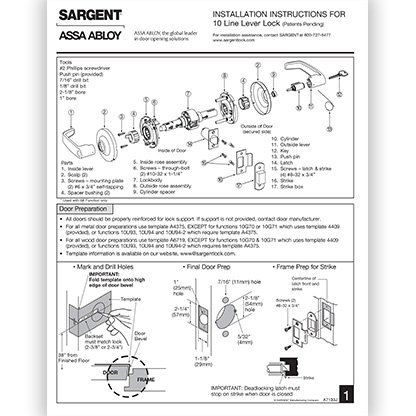

Installs in 1 minute or less
Quickly adapts to fit multiple through-bolt positions
User friendly packaging
User friendly instruction sheets
Convenient installation diagram on box

Design

Solid feel and precise lever action
Slim rose design available
Decorative levers — Coastal Series designs – Gulfport and Yarmouth
Levers are solid one piece cast construction, except “J” lever

Security

Torx® and spanner screws optional
Classroom security and multiple locking functions are available
Vandal resistant, Free Wheeling (FW) trim optional (not available with 70 or 71 functions)
Security key systems available (Signaturem Keso, BR-XC, XC)

Certification Compliance

Certified ANSI A156.2 Series 4000-Grade 1
UL listed to USA and Canadian safety standards. Listed for 3 hour doors (double doors require 41-option)
Note: Any retrofit or other field modification to a fire rated opening can potentially impact the fire rating of the opening, and Sargent Manufacturing Company makes no representations or warranties concerning what such impact may be in any specific situation. When retrofitting any portion of an existing fire rated opening, or specifying and installing a new fire-rated opening, please consult with a code specialist or local code official (Authority Having Jurisdiction) to ensure compliance with all applicable codes and ratings.
Positive Pressure: Meets UL 10C and UBC 7-2 (1997)
All levers conform to ADA requirement for barrier-free accessibility
Levers (L,J & P) conform to California Administrative Code Title 19 and 24
All individual components of a total door opening are required to comply with each code (Hurricane code)
Conforms to national & state fire and handicapped requirements

Flexibility

Fits a variety of door preparations with adaptable through-bolt positioning
Accommodates retrofit applications with optional 2-3/8", 3-3/4", and 5" backset latches
6 ADA lever styles to complement a wide array of design applications
Levers (B, L, J & P) are non-handed for efficient warehousing and for ease of installation
11 architectural grade finishes
21 functions
SARGENT uses engineered solutions and flexible manufacturing processes to accommodate special applications

Solutions

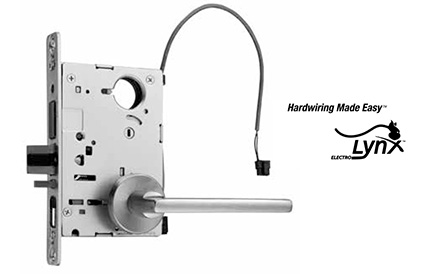

ElectroLynx™: The New Standard in Door Wiring

The plug-in connector system that allows installers to quickly and easily connect SARGENT electromechanical locks with CECO and Graham doors and frames, McKINNEY hinges and other ASSA ABLOY products.

The plug-in universal connectors and easy, color-coded wire system eliminate matching wires. Wiring is a snap and completely fool-proof. This pre-wired opening system – standard on most SARGENT electromechanical products – features Molex® connectors that snap together, attaching the door, hinge and lock to the building’s power source. Whether you use the system now, or plan to upgrade in the future, changing the components is as easy as plugging a phone into a wall jack.

MicroShield™ Hardware Finish Coating

MicroShield is a revolutionary new hardware finish coating which permanently suppresses the growth of bacteria, algae, fungus, mold and mildew.

Supresses microbes
Long lasting
Non-toxic
Available on most SARGENT product lines
Lasts for the life of the hardware
State-of-the-art protection and peace of mind 24/7

MicroShield treated hardware reduces bacterial growth quickly!

MicroShield products are ideal for installation in countless hardware applications where vigilance in the war against bacteria and mould is critical, such as hospitals, assisted living facilities, clinics, laboratories, offices, schools and daycare facilities.

The Agion antimicrobial compound is a silver-based antimicrobial agent that is incorporated into the MicroShield coating. This coating is effective against a broad spectrum of bacteria. (Consult Penner for specific test results.)

Tornado and Hurricane Resistant Products

SARGENT® leads the industry in developing products that withstand vigorous hurricane and tornado codes and standards. We have a broad selection of products designed to meet the needs in the most vulnerable locations in the country.

SARGENT products are tested to meet these codes and standards: FEMA (Federal Emergency Management Agency), NSSA (National Storm Shelter Association), IBC (International Building Code), FBC (Florida Building Code), including the Florida HVHZ (High Velocity Hurricane Zone), and ANSI A250.13.

Options/Prefixes:

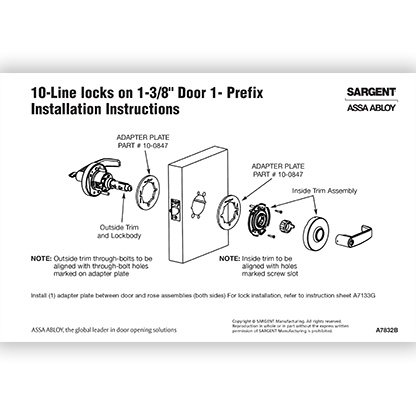

1 - 1-1/16" (27mm) wide front for 1-3/8" (35mm) doors
10 - SARGENT Signature key system
10-21 - SARGENT Signature construction key system (lost ball)
10-63 - SARGENT Signature removable core cylinder
11 - SARGENT XC key system
11-21 - XC construction key system (lost ball)
11-60 - Device to accept XC permanent removable core, disposable plastic core provided
11-63 - Device provided with XC removable core cylinder (includes masterkeying and grand masterkeying)
11-64 - Device provided with keyed construction core to accept XC removable permanent core (ordered separately)
11-65-73-7P - Device provided to accept XC uncombined 7-pin SFIC permanent core (10 line J lever not available)
11-70-7P - Device to accept XC 7-pin SFIC permanent cores, plastic disposable core provided (10 line J lever not available)
11-72-7P - Device to accept XC SFIC, 7-pin keyed construction core provided, permanent core cylinder ordered separately (10 line J lever not available)
11-73-7P - Device supplied with XC 7-pin SFIC (includes masterkeying, grand masterkeying; 10 line J lever not available)
20 - 2-3/8" (60mm) Backset
21 - SARGENT Lost Ball Construction Key System
22 - SARGENT Split Key Key System (existing systems only)
23 - 3-3/4 Inch (95mm) Backset
25 - 5" (127mm) backset
28 - Curved Lip Strike (#808)
30 - Lever to accept Schlage Cylinder; no cylinder provided
36 - 6 lobe security head screws
37 - Spanner Head Screws
41 - 3/4" (19mm) throw latch x 2-3/4" (70mm) backset
60 - SARGENT Removable Disposable Construction Core
63 - SARGENT Removable Core Cylinder
64 - Sargent Removable Core Construction Core Cylinder
6573 - Small Format Interchangeable Core 6-pin uncombinated core
65737P - Small Format Interchangeable Core 7-pin uncombinated core
70 - Small Format Interchangeable Disposable Plastic Construction Core
72 - Small Format Interchangeable Core 6-pin Construction Core Cylinder
73 - Small Format Interchangeable Core 6-pin
737P - Small Format Interchangeable Core 7-pin Construction Core Cylinder
74 - Lead Lining or Wrapping
75 - Tactile Warning: Handicap warning milled on backside of inside lever
76 - Milled Outside Lever (Mortise and Exits) Handicap Warning on Outside Lever (Cylindrical)
77 - Milled Both Levers (Mortise) Handicap Warning on Both Levers (Cylindrical)Abrasive Strip on rail, abrasive coating on lever (Exits)
80 - Levers to accept Keso and Keso F1 Cylinders - No cylinder provided
82 - SARGENT Keso Security Cylinder (existing systems only)
85 - Abrasive Coating inside lever (mortise & 10 line); Tactile warning (exit devices).Not available with Studio Levers.
86 - Abrasive Coating, outside lever (Not available with Studio Levers)
87 - Abrasive Coating both levers (mortise &10 line); Abrasive strip on rail & abrasive coating on lever (exits). Not available with Studio Levers
BR - Bump Resistant Cylinder
DG1- - Degree Key System, Level 1. Utility patented with protection against bumping and picking. For mortise, rim and LFIC.
DG1-21- - Degree Level 1 Construction Master Keying
DG1-65- - Degree Level 1 Unassembled/Uncombined Core
DG2- - Degree Key System, level 2. Utility patented with patented side bar locking. Geographic exclusivity. For use with mortise, rim and LFIC.
DG2-21- - Degree Level 2 Construction Master Keying
DG2-65- - Degree Level 2 Unassembled/Uncombined Core
DG3- - Degree Key System, level 3. Certified to UL437. Superior resistance to physical attack and protection against unauthorized key duplication. Available for mortise, rim and LFIC.
DG3-21- - Degree Level 3 Construction Master Keying
DG3-65- - Degree Level 3 Unassembled/Uncombined Core
F182 - Lock provided with SARGENT Keso F1 Security Cylinder
FW - Freewheeling Lever Feature
LC- - Less Cylinder

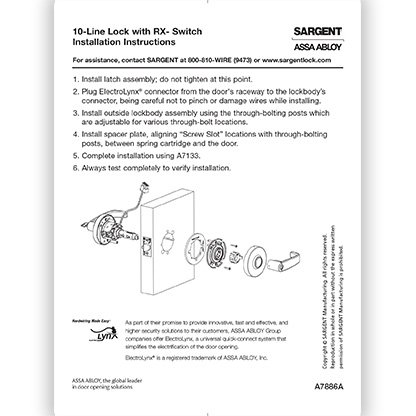

RX - Request to Enter/Exit - Monitors inside lever rotation
SC - Schlage 'C' Keyway Cylinder '0' Bitted
SE - Schlage 'E' Keyway Cylinder '0' Bitted
SF - Lever to accept Medeco Keymark & Schlage Large Format Interchangeable Core – No core provided
SG - MicroShield™ antimicrobial clear powder coat (on metal components only)
WBS - Wrought Box Strike
