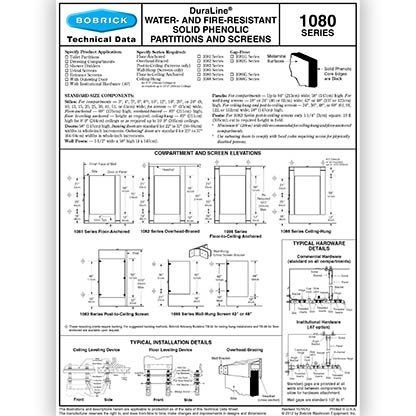

Solid Phenolic

Standard-Size Components

Stiles:  For compartments – 3", 4'', 5'', 6'', 8'' [minimum 8'' (20cm) wide stile recommended for ceiling-hung and floor-anchored compartments], 10'', 12'', 16'', 20'', or 24'' (8, 10, 13, 15, 20, 25, 30, 41, 51, or 61cm) wide; for screens – 6'' (15cm) wide. Floor-anchored – 69'' (175cm) high; overhead-braced – 83'' (211cm) high; floor-to-ceiling anchored – height as required; ceiling-hung – 83'' (211cm) high for 8' 0'' (244cm) ceilings or as required, up to 10' 0'' (305cm) ceilings.

Doors:  58'' (147cm) high. Inswing doors are standard for 22'' to 37'' (56–94cm) widths in whole-inch increments. Outswing doors are standard for 25'' to 37'' (64–94cm) widths in whole-inch increments. (Use outswing doors to comply with local codes requiring access for physically disabled persons.)

Wall Posts:  1-1/2'' wide x 58'' high (4 x 147cm).

Panels:  For compartments – Up to 84'' (213cm) wide; 58'' (147cm) high. For wall-hung screens – 18'' or 24'' (46 or 61cm) wide; 42'' or 48" (107 or 122cm) high. For ceiling-hung and post-to-ceiling screens – 24'', 36'', 48'', or 60'' (61, 91, 122, or 152cm) wide; 58'' (147cm) high.

Posts:  For 1083 Series post-to-ceiling screens only. 1-1/4'' (3cm) square. 10 ft (305cm); cut to required height in field.

Materials

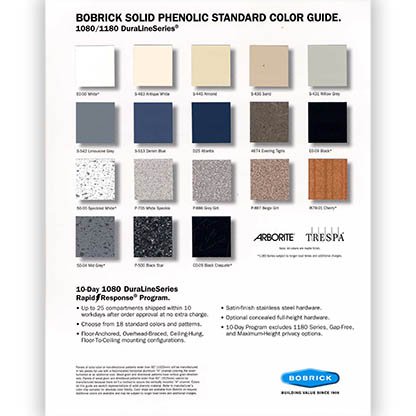

Stiles:  3/4'' (19mm) thick, solidly fused plastic laminate with matte-finish melamine surfaces, colored face sheets, and black phenolic-resin core that are integrally bonded. Edges are black.

Leveling Device:  3/16" (5mm) thick, corrosion-resistant, chromate-treated, double zinc-plated steel angle leveling bar bolted to stile; furnished with 3/8'' (10mm) diameter threaded rods, hex nuts, lock washers, flat washers, spacer sleeves, expansion anchors, and shoe retainers.

Shoe: 18-8 S, type-304, 22-gauge (0.8mm) stainless steel with satin finish; 4'' (102mm) high. * Stiles for 1086 Series floor-to-ceiling anchored have a leveling device at each end.

Panels:  1/2'' (13mm) thick, solidly fused plastic laminate with matte-finish melamine surfaces, colored face sheets, and black phenolic-resin core that are integrally bonded. Edges are black.

Urinal Screens:  3/4" (19mm) thick, solidly fused plastic laminate with matte-finish melamine surfaces, colored face sheets, and black phenolic-resin core that are integrally bonded. Edges are black.

Doors:  3/4'' (19mm) thick, solidly fused plastic laminate with matte-finish melamine surfaces, colored face sheets, and black phenolic-resin core that are integrally bonded. Edges are black.

Posts (for 1083 Series screens only):  1-1/4'' (32mm) square tubing; 18-8 S, type-304, 18-gauge (1.2mm) stainless steel with satin finish. Floor and ceiling connections are constructed of 18-8 S, type-304, heavy-gauge stainless steel. Furnished in 10-ft (305-cm) lengths; to be cut in field to job specifications.

Headrail (for 1082 Series compartments only):  Extruded anodized aluminum with satin finish. Enclosed construction with sloping top. Face has raised grip-resistant edge. Designer's Notes: Headrails with integral curtain tracks and hooks are available for compartments without doors. Optional vinyl curtains are available. Benches are available as an optional accessory for dressing compartments and shower dividers: 1/2'' (13mm) thick, solidly fused plastic laminate with matte-finish melamine surfaces, colored face sheets, and black phenolic-resin core that are integrally bonded, 10'' (25cm) deep, 18'' or 24'' (46 or 61cm) wide; furnished with two stainless steel support brackets for mounting to wall or divider panel.

Wall Posts:  1" x 1-1/2" (25 x 38mm) tubing; 18-8 S, type-304, 16-gauge (1.6mm) stainless steel with satin-finish. 58" (147cm) high, pre-drilled for door hardware.

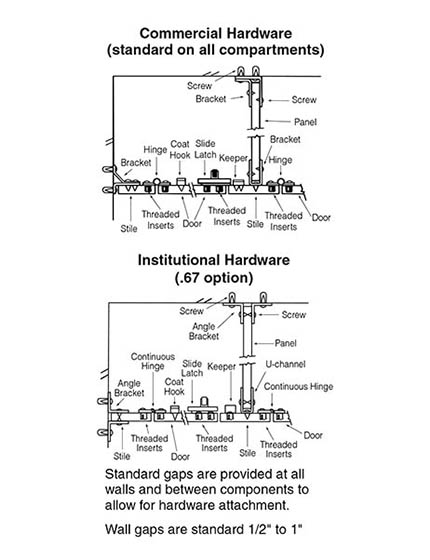

Commercial Hardware (standard):  Hinges, door latches, door keepers, clothes hooks, and mounting brackets are constructed of 18-8 S, type-304, heavy-gauge stainless steel with satin finish. Threaded inserts are factory installed for securing hinges and door latches. Theft-resistant, stainless steel pin-in-head, torx screws are furnished for door hardware and all mounting brackets. Black rubber bumper on the latch serves as door bumper for inswing door. Balanced hinge is adjustable to hold door of unoccupied toilet compartment partially open or fully closed. Toilet compartment door is locked from inside by sliding door latch into keeper. A locked compartment may be opened from outside by lifting door to disengage latch from keeper. Track of door latch prevents inswing door from swinging out beyond stile; on outswing door, the door keeper prevents it from swinging in beyond stile.

Institutional Hardware (.67 option):  Hinges, door latches, door keepers, clothes hook, U-channels, and angle brackets are constructed of 18-8 S, type-304, heavy gauge stainless steel with satin finish: one-piece, full-height hinge is 16 gauge (1.6mm); one-piece door keeper is 11 gauge (3.2mm); one-piece, full-height U-channels and angle brackets are 18 gauge (1.2mm). U-channels secure panels to stiles, and angle brackets secure panels and stiles to walls. Optional two door stops (#1002510) prevent door from being kicked in/out beyond stile by vandals. A locked compartment may be opened from outside by lifting door to disengage latch from keeper. Theft resistant, stainless steel pin-in-head, torx screws are furnished for door hardware, U-channels, and angle brackets. Doors are equipped with a self-closing hinge. Threaded inserts are factory installed to secure door hinge and latch. Track of door latch prevents inswing door from swinging out beyond stile; on outswing door, the door keeper prevents it from swinging in beyond stile.
To specify institutional hardware, add suffix .67 to series number. Example: specify 1082.67 for overhead-braced partitions furnished with institutional hardware, including factory installed threaded inserts for door hardware attachment.

Installation Notes

Bobrick installation instructions are packed with each shipment, and available in advance on request.

1. Ceiling-hung and floor-to-ceiling toilet compartments require structural members (not furnished by Bobrick) in ceiling. For suggested types of ceiling support systems, see Mounting Systems, Ceiling-Hung in Downloads tab.
2. Wall backing is required to secure the mounting brackets of panels, stiles, and wall posts. For suggested wall backing, see Mounting Systems, Floor-Anchored & Overhead-Braced in Downloads tab.
3. Floor-anchored stiles are furnished with expansion shields and threaded rods. The expansion shields require minimum 2'' (50mm) penetration into minimum 3'' (75mm) thick structural concrete.
4. Bobrick stainless steel partition-mounted washroom accessories are available for mounting in panels between two compartments. See current Bobrick Catalog in Downloads tab, for description of accessories. Cutouts in panels can be pre-cut for Bobrick models at factory if location and size of all cutouts and Bobrick model numbers are furnished at time of order.
5. When the cam has been set at the desired free resting position, "either closed or open" the top of the affixed components will be aligned.

Guarantee:  Bobrick toilet partitions including all hardware and mounting brackets are guaranteed to be free from defects in material and workmanship for a period of one year from date of purchase. Any products returned to Bobrick under this guarantee will be repaired or replaced at no charge.

15-Year Warranty:  Bobrick extends a 15-year limited warranty from date of purchase for DuraLineSeries solid phenolic partition panels, doors, and stiles against breakage, corrosion, delamination, and defects in factory workmanship when materials are properly installed, then used and serviced normally.
