Sargent 4870 Series

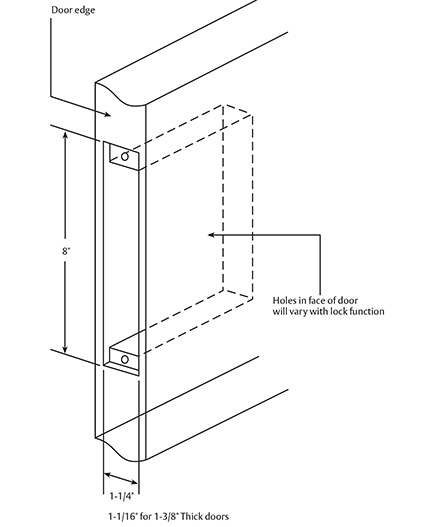

Sargent 4870 Series Heavy Duty Mortise Lock Specifications

• For Doors 1-3/4" (44 mm) standard (For thicker doors, consult factory)

• 2-3/4" (70mm) backset only

• Strike: #480, 3-1/2"(89mm) x 1-1/8"(29mm). For strike box, specify WBS when ordering

• Bolt: Laminated Stacked Steel Deadbolt with Hardened Pin and a 1" throw

• Cylinder: Brass 6-pin. Two nickel silver keys per lock (control key must be ordered separately, when required)

• Cylinder ring: 97 Rosette (standard with #41 cylinder), 1 KB rosette available on order

• Case: Heavy wrought steel; .093 thick, protected with a zinc dichromate finish

• Outside Front Plate: Brass, bronze, stainless steel, 4-5/8 in. x 1-1/ 8". Adjustable for flat or beveled doors (bevel adjustment 1/8", in 2 in)

• Non-handed, completely reversible (except for 74-)

• Thumb-turn:130W ADA thumb turn (standard); optional larger thumb turn (specify LB-)

• UL/cUL Listed: Listed for use on fire doors

• Note: Any retrofit or other field modification to a fire rated opening can potentially impact the fire rating of the opening, and Sargent Manufacturing Company makes no representations or warranties concerning what such impact may be in any specific situation. When retrofitting any portion of an existing fire rated opening, or specifying and installing a new fire-rated opening, please consult with a code specialist or local code official (Authority Having Jurisdiction) to ensure compliance with all applicable codes and ratings.

Solutions

MicroShield™ Hardware Finish Coating

MicroShield is a revolutionary new hardware finish coating which permanently suppresses the growth of bacteria, algae, fungus, mold and mildew.

• Supresses microbes
• Long lasting
• Non-toxic
• Available on most SARGENT product lines
• Lasts for the life of the hardware
• State-of-the-art protection and peace of mind 24/7

MicroShield treated hardware reduces bacterial growth quickly!

MicroShield products are ideal for installation in countless hardware applications where vigilance in the war against bacteria and mould is critical, such as hospitals, assisted living facilities, clinics, laboratories, offices, schools and daycare facilities.

The Agion antimicrobial compound is a silver-based antimicrobial agent that is incorporated into the MicroShield coating. This coating is effective against a broad spectrum of bacteria. (Consult Penner for specific test results.)

Options/Prefixes:

• 10 - SARGENT Signature key system
• 10-21 - SARGENT Signature construction key system (lost ball)
• 10-63 - SARGENT Signature removable core cylinder
• 11 - SARGENT XC key system
• 11-21 - XC construction key system (lost ball)
• 11-60 - Device to accept XC permanent removable core, disposable plastic core provided
• 11-63 - Device provided with XC removable core cylinder (includes masterkeying and grand masterkeying)
• 11-64 - Device provided with keyed construction core to accept XC removable permanent core (ordered separately)
• 11-65-73-7P - Device provided to accept XC uncombined 7-pin SFIC permanent core (10 line J lever not available)
• 11-70-7P - Device to accept XC 7-pin SFIC permanent cores, plastic disposable core provided (10 line J lever not available)
• 11-73-7P - Device supplied with XC 7-pin SFIC (includes masterkeying, grand masterkeying; 10 line J lever not available)
• 21 - SARGENT Lost Ball Construction Key System
• 22 - SARGENT Split Key Key System (existing systems only)
• 60 - SARGENT Removable Disposable Construction Core
• 63 - SARGENT Removable Core Cylinder
• 64 - Sargent Removable Core Construction Core Cylinder
• 6573 - Small Format Interchangeable Core 6-pin uncombinated core
• 65737P - Small Format Interchangeable Core 7-pin uncombinated core
• 70 - Small Format Interchangeable Disposable Plastic Construction Core
• 72 - Small Format Interchangeable Core 6-pin Construction Core Cylinder
• 73 - Small Format Interchangeable Core 6-pin
• 737P - Small Format Interchangeable Core 7-pin Construction Core Cylinder
• 82 - SARGENT Keso Security Cylinder (existing systems only)
• BR - Bump Resistant Cylinder
• F182 - Lock provided with SARGENT Keso F1 Security Cylinder
• SC - Schlage 'C' Keyway Cylinder '0' Bitted
• SE - Schlage 'E' Keyway Cylinder '0' Bitted
• SG - MicroShield™ antimicrobial clear powder coat (on metal components only)
