OvalTek Collection

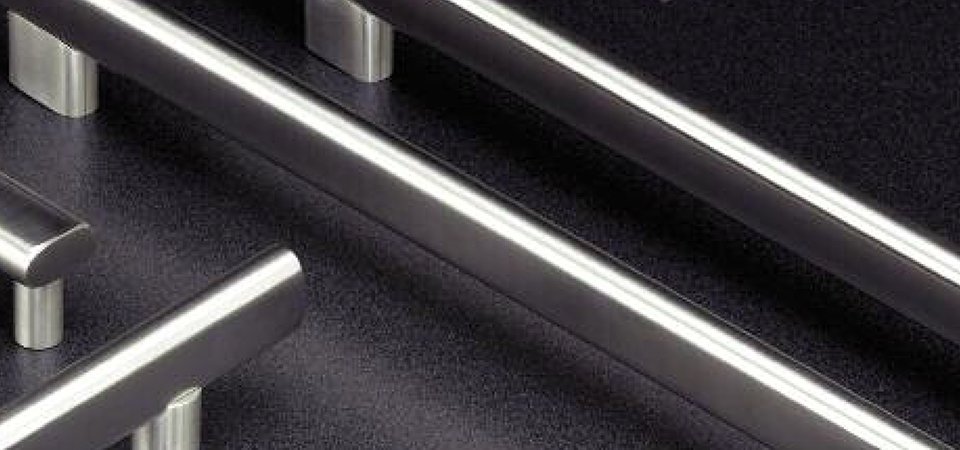

Flat Oval Grip

The comfortable and attractive 3/4" x 1-1/2" flat oval shape is available with three styles of mounting posts and in full-length versions.

This sturdy, sleek shape creates a beautiful pull and is available with a leather cover (English bridle leather).

Flat oval combines the ergonomics of true oval with the trim lines of rectangular tubing.

True Oval Grip

The grip of Rockwood's true oval shape conforms to the natural contour of one's hand, defining the standard in comfort
for the user.

This design is complimented by the oval shaped mounting posts. The pulls are available in regular and full height lengths.

The push bar features oval tubing that is practically positioned to expose the broad pushing surface.

Available in two cross section sizes, the
oval pulls and push bars are the most ergonomically correct door hardware.

Designs
Specifications
Finishes
Downloads

RM2300 - straight pull

1" x 1-1/2" true oval grip

8", 11", 16", up to 96" CTC

Over 96" CTC on select finishes

3" projection

RM2302 - push bar

1" x 1-1/2" true oval grip

Specify CTC length

2-7/32" projection

RM2305 - push-pull set

1" x 1-1/2" true oval grip

Specify push/pull CTC length

RM2310 - straight pull

1" x 1-7/8" true oval grip

11", 16", 20", up to 96" CTC

Over 96" CTC on select finishes

3-3/8" projection

RM2312 - push bar

1" x 1-7/8" true oval grip

Specify CTC length

2-7/32" projection

RM2315 - push-pull set

1" x 1-7/8" true oval grip

Specify push/pull CTC length

RM2320 - offset pull

1" x 1-1/2" true oval grip

8", 11", 16"; 3-4', 4-6', 6-8' CTC

RM2330 - offset pull

1" x 1-7/8" true oval grip

11", 16", 20"; 3-4', 4-6', 6-8' CTC

RM2400 - straight pull, sm round posts

3/4" x 1-1/2" flat oval grip

8", 11", 16", up to 96" CTC

Over 96" CTC on select finishes

2-3/4" projection

RM2402 - push bar, lg round posts

3/4" x 1-1/2" flat oval grip

Specify push CTC

2" projection

RM2410 - straight pull, lg round posts

3/4" x 1-1/2" flat oval grip

8", 11", 16", up to 96" CTC

3-1/4" projection

RM2420 - straight pull, oblong posts

3/4" x 1-1/2" flat oval grip

8", 11", 16", up to 96" CTC

Over 96" CTC on select finishes

2-3/4" projection

OvalTek Collection Specifications

Most of Rockwood's products are available in a wide variety of architectural finishes. The photographs generally show only one finish for aesthetic reasons, but all traditional architectural finishes are available. The base metal for the OvalTek Collection is stainless steel.

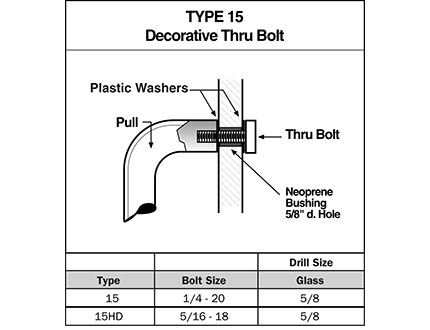

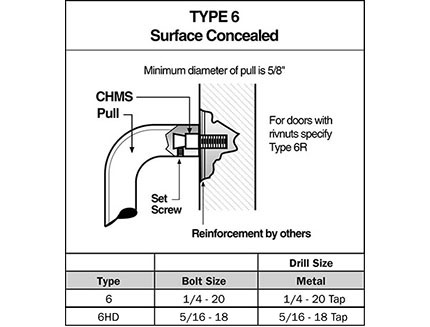

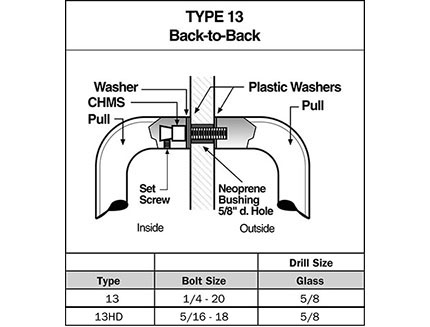

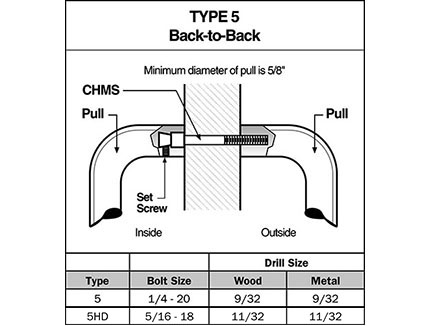

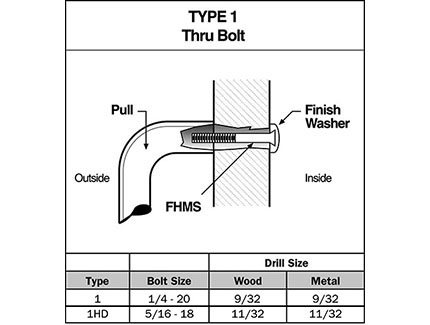

Rockwood Door Pulls – Mounting Types

Rockwood mounting systems firmly attach the pull to the door and are guaranteed for the life of the door. Choose from thrubolt, back-to-back or concealed mountings for wood, metal and glass doors.

Please note the following:

Y base plates are recommended on wood or glass doors to make a stable and durable mounting.
Heavy Duty (HD) mounting features hex drive for positive tightening and large overall size for superior strength. (Recommended for high frequency and rough service openings.)

Options:

For optional mid-post, suffix the product number with "MP" (example: RM2420MP).
Mid-post recommended for maximum rigidity on pulls over 80".
Over 96" available on select finishes.

Application Suggestions

True Oval Straight Pulls

RM2300 Specifications:

Base Metal: Stainless Steel
Material: 1" x 1-1/2"
Lengths: 8", 11", 16", up to 96" CTC available (center-to-center measurement between mounts)
Projection: 3"
Finishes: US32/BHMA 629 - Bright Stainless Steel; or US32D/BHMA 630 - Satin Stainless Steel

RM2310 Specifications:

Base Metal: Stainless Steel
Material: 1" x 1-7/8"
Lengths: 11", 16", 20", up to 96" CTC available (center-to-center measurement between mounts)
Projection: 3-3/8"
Finishes: US32/BHMA 629 - Bright Stainless Steel; or US32D/BHMA 630 - Satin Stainless Steel

True Oval Offset Pulls

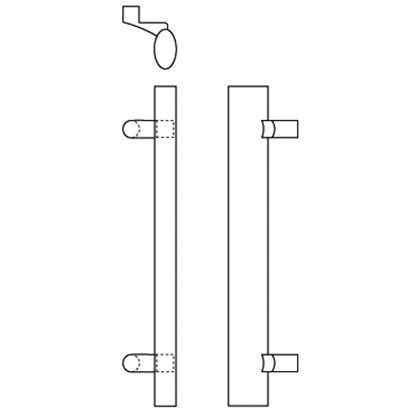

RM2320 Specifications:

Base Metal: Stainless Steel
Material: 1" x 1-1/2"
Lengths: 8", 11", 16"; 3-4', 4-6', 6-8' CTC (center-to-center measurement between mounts)
Finishes: US32/BHMA 629 - Bright Stainless Steel; or US32D/BHMA 630 - Satin Stainless Steel

RM2330 Specifications:

Base Metal: Stainless Steel
Material: 1" x 1-7/8"
Lengths: 11", 16", 20"; 3-4', 4-6', 6-8' CTC (center-to-center measurement between mounts)
Finishes: US32/BHMA 629 - Bright Stainless Steel; or US32D/BHMA 630 - Satin Stainless Steel

True Oval Push-Pull Set

RM2305 Specifications:

Base Metal: Stainless Steel
Material: 1" x 1-1/2"
Lengths: Specify push/pull CTC (center-to-center measurement between mounts)
Finishes: US32/BHMA 629 - Bright Stainless Steel; or US32D/BHMA 630 - Satin Stainless Steel

RM2315 Specifications:

Base Metal: Stainless Steel
Material: 1" x 1-7/8"
Lengths: Specify push/pull CTC (center-to-center measurement between mounts)
Finishes: US32/BHMA 629 - Bright Stainless Steel; or US32D/BHMA 630 - Satin Stainless Steel

True Oval Push Bars

RM2302 Specifications:

Base Metal: Stainless Steel
Material: 1" x 1-1/2"
Length: Specify CTC (center-to-center measurement between mounts)
Projection: 2-7/32"
Finishes: US32/BHMA 629 - Bright Stainless Steel; or US32D/BHMA 630 - Satin Stainless Steel

RM2312 Specifications:

Base Metal: Stainless Steel
Material: 1" x 1-7/8"
Length: Specify CTC (center-to-center measurement between mounts)
Projection: 2-7/32"
Finishes: US32/BHMA 629 - Bright Stainless Steel; or US32D/BHMA 630 - Satin Stainless Steel

Flat Oval Straight Pulls - Small Round Posts

RM2400 Specifications:

Base Metal: Stainless Steel
Material: 3/4" x 1-1/2"
Lengths: 8", 11", 16", up to 96" CTC available (center-to-center measurement between mounts)
Projection: 2-3/4"
Finishes: US32/BHMA 629 - Bright Stainless Steel; or US32D/BHMA 630 - Satin Stainless Steel

Flat Oval Push Bar - Large Round Posts

RM2402 Specifications:

Base Metal: Stainless Steel
Material: 3/4" x 1-1/2"
Length: Specify CTC (center-to-center measurement between mounts)
Projection: 2"
Finishes: US32/BHMA 629 - Bright Stainless Steel; or US32D/BHMA 630 - Satin Stainless Steel

Flat Oval Straight Pulls - Large Round Posts

RM2410 Specifications (HD Mounting):

Base Metal: Stainless Steel
Material: 3/4" x 1-1/2"
Lengths: 8", 11", 16", up to 96" CTC available (center-to-center measurement between mounts)
Projection: 3-1/4"
Finishes: US32/BHMA 629 - Bright Stainless Steel; or US32D/BHMA 630 - Satin Stainless Steel

Flat Oval Straight Pulls - Oblong Posts

RM2420 Specifications (HD Mounting):

Base Metal: Stainless Steel
Material: 3/4" x 1-1/2"
Lengths: 8", 11", 16", up to 96" CTC available (center-to-center measurement between mounts)
Projection: 2-3/4"
Finishes: US32/BHMA 629 - Bright Stainless Steel; or US32D/BHMA 630 - Satin Stainless Steel

General Warranty: Rockwood Manufacturing Company warrants that its products when properly delivered, installed and maintained, under normal use and service conditions, will be free from defects in material and workmanship for a period of one year from the date of delivery. Because of variations in atmospheric and climatic conditions, Rockwood does not warrant that its products will maintain a “like new” appearance for any length of time, so this warranty does not extend to the appearance of Rockwood’s products. Rockwood shall have no responsibility other than the repair or replacement of defective products.
