NeoMetrix Collection

The NeoMetrix line features "GripZone" –
a satin finished grip area contrasting to
the bright mirror finish at the ends.

Not only visually appealing, this winning design is practical as well.

The satin finish hides small marks and scratches caused by rings, jewelry, and keys.

On push bars, the GripZone identifies which side of the door swings open.

Designs
Specifications
Finishes
Downloads

RM3010 - straight pull

1" diameter

12", 18" CTC

3-1/2" projection

RM3012 - push bar, 7" grip

1" diameter

Specify CTC

2-1/2" projection

RM3015 - straight push-pull

1" diameter

12" pull CTC

Specify bar CTC

RM3020 - straight pull

1-1/4" diameter

12", 18", 24" CTC

3" projection

RM3022 - push bar, 7" grip

1-1/4" diameter

Specify CTC

3" projection

RM3025 - straight push-pull

1-1/4" diameter

12" pull CTC

Specify bar CTC

RM3030 - straight pull

1-1/2" diameter

12", 18", 24" CTC

3-1/2" projection

RM3032 - push bar, 7" grip

1-1/2" diameter

Specify CTC

3-1/2" projection

RM3035 - straight push-pull

1-1/2" diameter

12" pull CTC

Specify bar CTC

RM3040 - offset pull

1" diameter

12", 18" CTC

3-1/2" projection

RM3045 - offset push-pull

1" diameter

12" pull CTC

Specify bar CTC

RM3050 - offset pull

1-1/4" diameter

12", 18", 24" CTC

3" projection

RM3055 - offset push-pull

1-1/4" diameter

12" pull CTC

Specify bar CTC

RM3060 - offset pull

1-1/2" diameter

12", 18", 24" CTC

3-1/2" projection

RM3065 - offset push-pull

1-1/2" diameter

12" pull CTC

Specify bar CTC

NeoMetrix Collection Specifications

Most of Rockwood's products are available in a wide variety of architectural finishes. The photographs generally show only one finish for aesthetic reasons, but all traditional architectural finishes are available. The base metal options for the NeoMax Collection are stainless steel, brass or bronze.

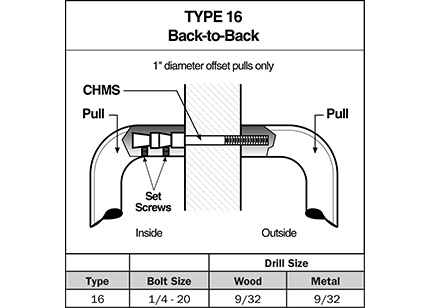

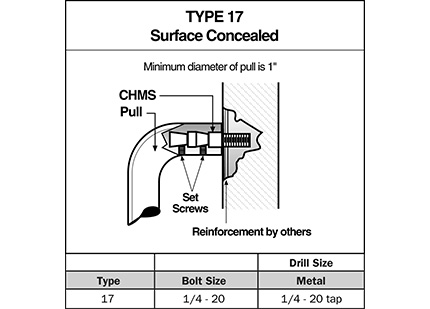

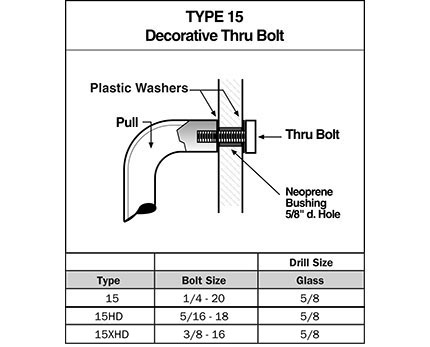

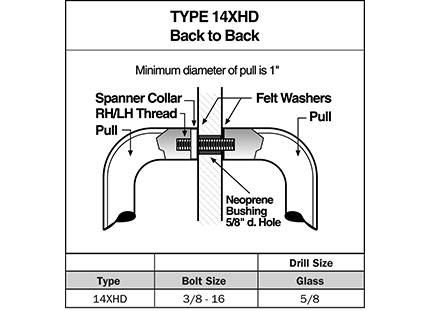

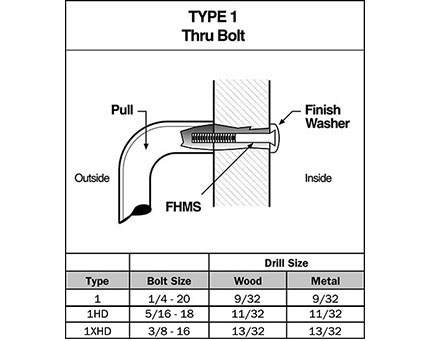

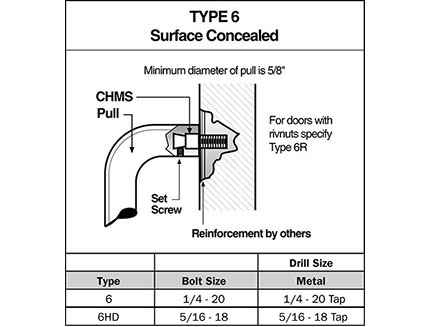

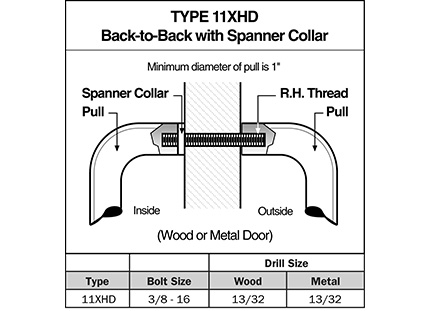

Rockwood Door Pulls – Mounting Types

Rockwood mounting systems firmly attach the pull to the door and are guaranteed for the life of the door. Choose from thrubolt, back-to-back or concealed mountings for wood, metal and glass doors.

Please note the following:

Y base plates are recommended on wood or glass doors to make a stable and durable mounting.
Heavy Duty (HD) mounting features hex drive for positive tightening and large overall size for superior strength. (Recommended for high frequency and rough service openings.)
To specify multi-bar sets, suffix -2 or -3 to pull number (example: RM3015-2).
Note: Phantom lines depict optional multi-bar sets (see Designs tab).

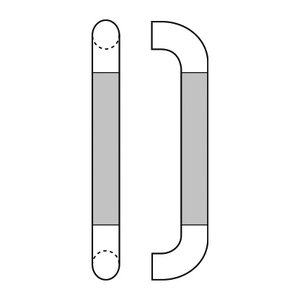

Straight Pull - Bent Ends (with GripZone)

RM3010 Specifications:

Base Metal: Stainless Steel, Brass, Bronze
Diameter: 1"
Lengths: 12", 18" CTC (center-to-center measurement between mounts)
Projection: 3-1/2"
Finishes: US32316; US32 / BHMA 629; US9 / BHMA 611; US3 / BHMA 605

RM3020 Specifications:

Base Metal: Stainless Steel, Brass, Bronze
Diameter: 1-1/4"
Lengths: 12", 18", 24" CTC (center-to-center measurement between mounts)
Projection: 3"
Finishes: US32316; US32 / BHMA 629; US9 / BHMA 611; US3 / BHMA 605

RM3030 Specifications:

Base Metal: Stainless Steel, Brass, Bronze
Diameter: 1-1/2"
Lengths: 12", 18", 24" CTC (center-to-center measurement between mounts)
Projection: 3-1/2"
Finishes: US32 / BHMA 629; US9 / BHMA 611; US3 / BHMA 605

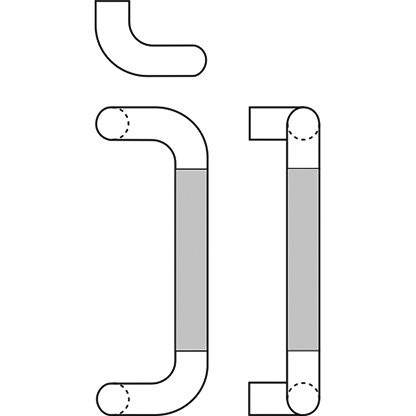

Offset Pull - Bent Ends (with GripZone)

RM3040 Specifications:

Base Metal: Stainless Steel, Brass, Bronze
Diameter: 1"
Lengths: 12", 18" CTC (center-to-center measurement between mounts)
Projection: 3-1/2"
Finishes: US32 / BHMA 629; US9 / BHMA 611; US3 / BHMA 605

RM3050 Specifications:

Base Metal: Stainless Steel, Brass, Bronze
Diameter: 1-1/4"
Lengths: 12", 18", 24" CTC (center-to-center measurement between mounts)
Projection: 3"
Finishes: US32 / BHMA 629; US9 / BHMA 611; US3 / BHMA 605

RM3060 Specifications:

Base Metal: Stainless Steel, Brass, Bronze
Diameter: 1-1/2"
Lengths: 12", 18", 24" CTC (center-to-center measurement between mounts)
Projection: 3-1/2"
Finishes: US32 / BHMA 629; US9 / BHMA 611; US3 / BHMA 605

Straight Push-Pull Set (with GripZone)

RM3015 Specifications:

Base Metal: Stainless Steel, Brass, Bronze
Diameter: 1"
Length: 12" pull CTC (center-to-center measurement between mounts)
Ordering: Specify bar CTC
Finishes: US32316; US32 / BHMA 629; US9 / BHMA 611; US3 / BHMA 605

RM3025 Specifications:

Base Metal: Stainless Steel, Brass, Bronze
Diameter: 1-1/4"
Length: 12" pull CTC (center-to-center measurement between mounts)
Ordering: Specify bar CTC
Finishes: US32316; US32 / BHMA 629; US9 / BHMA 611; US3 / BHMA 605

RM3035 Specifications:

Base Metal: Stainless Steel, Brass, Bronze
Diameter: 1-1/2"
Length: 12" pull CTC (center-to-center measurement between mounts)
Ordering: Specify bar CTC
Finishes: US32 / BHMA 629; US9 / BHMA 611; US3 / BHMA 605

Offset Push-Pull Set (with GripZone)

RM3045 Specifications:

Base Metal: Stainless Steel, Brass, Bronze
Diameter: 1"
Length: 12" pull CTC (center-to-center measurement between mounts)
Ordering: Specify bar CTC
Finishes: US32 / BHMA 629; US9 / BHMA 611; US3 / BHMA 605

RM3055 Specifications:

Base Metal: Stainless Steel, Brass, Bronze
Diameter: 1-1/4"
Length: 12" pull CTC (center-to-center measurement between mounts)
Ordering: Specify bar CTC
Finishes: US32 / BHMA 629; US9 / BHMA 611; US3 / BHMA 605

RM3065 Specifications:

Base Metal: Stainless Steel, Brass, Bronze
Diameter: 1-1/2"
Length: 12" pull CTC (center-to-center measurement between mounts)
Ordering: Specify bar CTC
Finishes: US32 / BHMA 629; US9 / BHMA 611; US3 / BHMA 605

Push Bar - 7 inch Grip (with GripZone)

RM3012 Specifications:

Base Metal: Stainless Steel, Brass, Bronze
Diameter: 1"
Length: Specify CTC (center-to-center measurement between mounts)
Projection: 2-1/2"
Finishes: US32316; US32 / BHMA 629; US9 / BHMA 611; US3 / BHMA 605

RM3022 Specifications:

Base Metal: Stainless Steel, Brass, Bronze
Diameter: 1-1/4"
Length: Specify CTC (center-to-center measurement between mounts)
Projection: 3"
Finishes: US32316; US32 / BHMA 629; US9 / BHMA 611; US3 / BHMA 605

RM3032 Specifications:

Base Metal: Stainless Steel, Brass, Bronze
Diameter: 1-1/2"
Length: Specify CTC (center-to-center measurement between mounts)
Projection: 3-1/2"
Finishes: US32316; US32 / BHMA 629; US9 / BHMA 611; US3 / BHMA 605

General Warranty: Rockwood Manufacturing Company warrants that its products when properly delivered, installed and maintained, under normal use and service conditions, will be free from defects in material and workmanship for a period of one year from the date of delivery. Because of variations in atmospheric and climatic conditions, Rockwood does not warrant that its products will maintain a “like new” appearance for any length of time, so this warranty does not extend to the appearance of Rockwood’s products. Rockwood shall have no responsibility other than the repair or replacement of defective products.
