Heavy Duty C-104

Crowder C-Series Single Track Systems Specifications

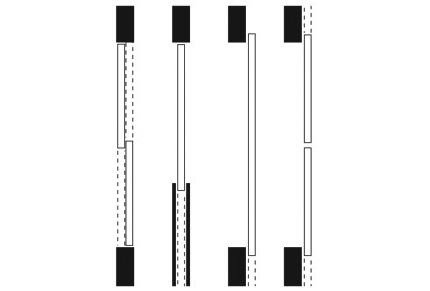

COMPLETE KITS AVAILABLE FOR 24” TO 72” WIDE DOORS. FOR BY-PASSING DOOR APPLICATIONS, USE TWO COMPLETE KITS.

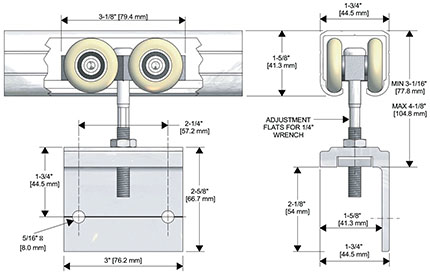

C-103 Top & Face Mount Hanger with C-104 Sliding Track

Four precision ball bearing, nylon tire wheels per hanger. Designed for top and face mounting to the door. Provides a secure grip for heavy loads.

• Residential, Office, Institutional, Hotel, Industrial, Commercial Applications
• Medium and Heavy Duty
• 200 LBS (2 Hangers)
• Adjustable Nylon Wheel Hanger

1 - C-104 TRACK LENGTH: 2 X DOOR WIDTH
(EXAMPLE: 36” DOOR = 72” TRACK)

2 - C-103-4 HANGERS COMPLETE WITH SCREWS, BOLTS, WASHERS & NUTS

2 - C-100HD IN-TRACK STOP COMPLETE WITH SCREWS

1 - C-914 GUIDE CHANNEL LENGTH: EQUAL TO DOOR WIDTH
(EXAMPLE: 36” DOOR = 36” GUIDE CHANNEL)

1 - C--913 FLOOR GUIDE COMPLETE WITH SCREWS


C-105 Top Mount Concealed Hanger with C-104 Sliding Track

Four precision ball bearing, nylon tire wheels per hanger. Kerf door 2" deep to receive hanger plate, allowing minimum head clearance. Continuous Hanger for full door widths also available.

• Residential, Office, Institutional, Hotel, Industrial, Commercial Applications
• Medium and Heavy Duty
• 200 LBS (2 Hangers) or 400 LBS (2 hangers)
• Continuous Hanger

1 - C-104 TRACK LENGTH: 2 X DOOR WIDTH
(EXAMPLE: 36” DOOR = 72” TRACK)

2 - C-105-4 OR C-105-8 HANGERS COMPLETE WITH BOLT(S), WASHER(S) & NUT(S)

2 - C-100HD IN-TRACK STOP COMPLETE WITH SCREWS

1 - C-914 GUIDE CHANNEL LENGTH: EQUAL TO DOOR WIDTH
(EXAMPLE: 36” DOOR = 36” GUIDE CHANNEL)

1 - C-913 FLOOR GUIDE COMPLETE WITH SCREWS


See Downloads tab for additional information and installation instructions.
