Flat Bar HD

K.N. Crowder has produced precision high quality track for over 65 years.

Extensive cycle testing (one cycle = one opening and closing of door) ensures long lasting product performance. Crowder track hardware has been quality tested for 150,000 cycles.

These heavy duty barn track systems are engineered for maximum glide and minimum noise, for luxury design applications.

Designs
Specifications
Finishes
Downloads

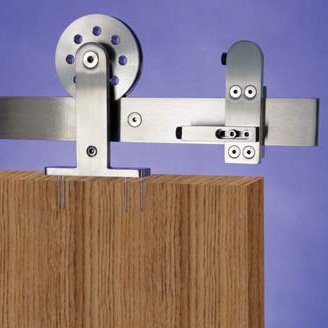

CFT-201 - top mount

Complete kit for 1-3/8" wood door

Specify CFT-200 flat track length and finish

CFT-202 - strap mount

Complete kit for 1-3/4" wood door

Specify CFT-200 flat track length and finish

Door slab requires two 3/4” holes per hanger

K.N. Crowder Flat Barn Track Specifications

CFT-200 Series with Solid Flat Bar Track

For Heavy 1-3/8" Wood Doors

Crowdertrack Flat Bar Track (CFT) series starts with our basic Top Mount Hanger for wood doors. Mimicking the traditional flat track system used in barns, of steel rollers on a steel bar, this series is ideal for industrial style barn doors. The CFT series is available in polished 304 satin stainless steel or cold rolled steel with a black finish. Other finishes are available upon request.

Flat Bar Track Load Capacity:

300 lbs. (two hangers)
450 lbs. (three hangers)
600 lbs. (four hangers)

CFT-200-SS Track: Polished 304 Satin Stainless Steel 1/4” [6.4mm] x 2” [50.8mm] Solid Flat Bar weighing 1.72 pounds per foot.

CFT-200-BP Track: Black Finish Cold Rolled Steel 1/4” [6.4mm] x 2” [50.8mm] Solid Flat Bar weighing 1.70 pounds per foot.

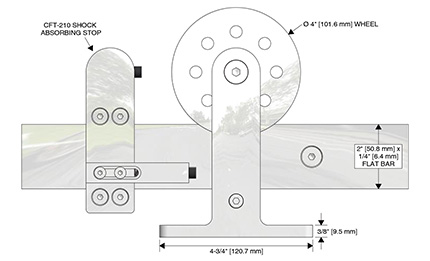

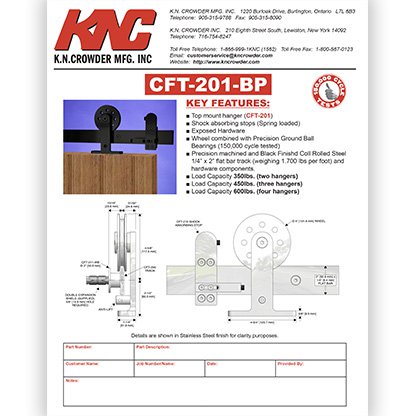

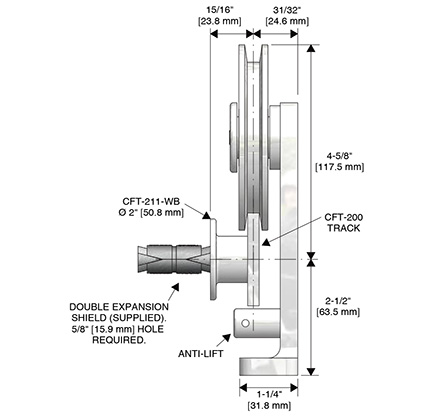

CFT-201 Top Mount: Complete Kit: (for one 1-3/8" wood door)

2 - CFT-201 top mount hangers complete with anti-lift and screws
2 - CFT-210 shock absorbing stops (clamps around 2" [50.8 mm] x 1/4" [6.4 mm] flat bar)
CFT-211-WB wall mount (quantity is based on kit size); complete with 5/16" - 18 flat head socket screws and expansion shields
1 - CFT-200 (2” [50.8mm] x 1/4” [6.4mm] Flat bar track) x length based on kit size (eg. 72" [1829mm] Kit for 36" [914mm] wide door)
1 - C-914 aluminum guide channel x length based on kit size (eg. 72" [1829mm] Kit = 36" [914mm] long guide channel)
1 - C-913 floor guide complete with screws

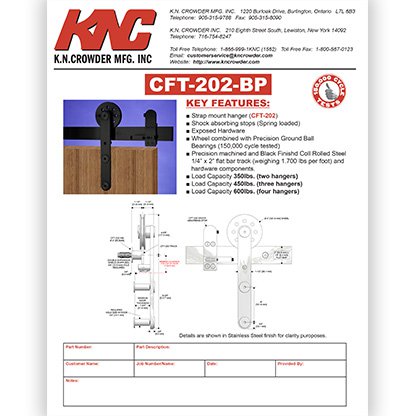

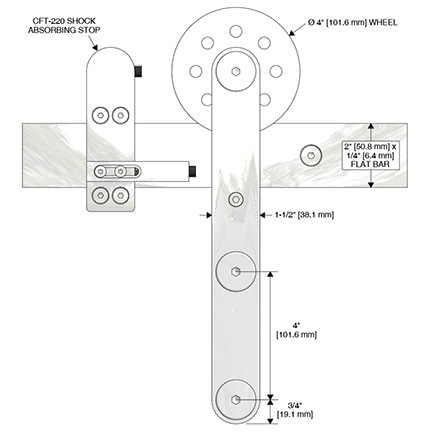

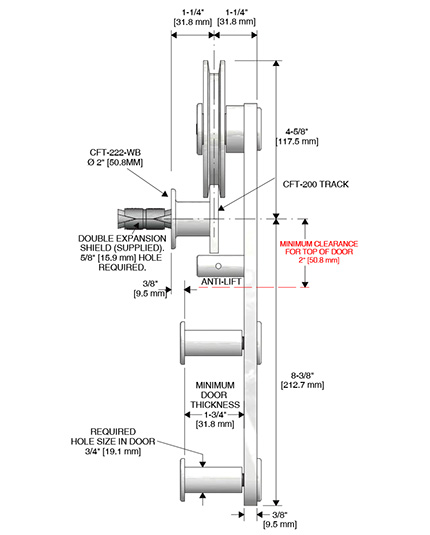

CFT-202 Strap Mount: Complete Kit: (for one 1-3/4" wood door)

Note: CFT-202 system requires two 3/4” [19.1mm] holes per hanger in order to clamp the wood door to the hanger.

2 - CFT-202 strap mount hangers complete with anti-lift and custom mounting screws
2 - CFT-220 shock absorbing stops (clamps around 2" [50.8 mm] x 1/4" [6.4 mm] flat bar)
CFT-222-WB wall mount brackets for flat bar track (quantity is based on kit size); complete with 5/16" - 18 flat head socket screws and expansion shields
1 - CFT-200 (2” [50.8mm] x 1/4” [6.4mm] Flat bar track) x length based on kit size (eg. 72" [1829mm] Kit for 36" [914mm] wide door)
1 - C-914 aluminum guide channel x length based on kit size (eg. 72" [1829mm] Kit = 36" [914mm] long guide channel)
1 - C-913 floor guide complete with screws

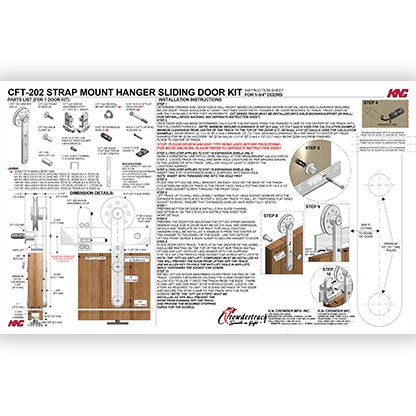

See Downloads tab for additional information and installation instructions.
