Residential & Multi-family > Exterior Doors > Artisan

1/2 Lite

A variety of homes can be complemented using 1/2 lite door glass. Available in both steel or fiberglass with 22" x 36" inserts or choose a fiberglass flush glazed door to give a clean look with a larger viewing area. Also available without glass to coordinate with other entryways in your home.

Choose from an extensive selection of decorative or textured glass to suit your home's style.

  • Designs
  • Specifications
  • Downloads
  • All
    ×
  • Smooth White Composite
  • Oak Woodgrain Textured Composite
  • All
    ×
  • Avant
  • Avenue
  • Attraction
  • Alys
  • Azur
  • Bistro
  • Blanca
  • Clear Low-E
  • Cruz
  • Crosswalk
  • Cumulus
  • Courtyard
  • Chanelle
  • Cachet
  • Celeste
  • Chord
  • Chelsea
  • Enclosed Blinds
  • Edge
  • Element
  • Fluid
  • Focus
  • Grille - 9 lite Internal
  • Grille - Prairie Internal
  • Geo-Tex
  • Georgian
  • Impressions
  • Kallima
  • Liano
  • Linen
  • Mistral
  • Majestic - Patina
  • Majestic - Satin Nickel
  • Mosaic
  • Micro-Granite
  • Marco
  • Naples
  • Nouveau - Patina
  • Nouveau - Satin Nickel
  • Oak Park
  • Opal
  • Paris
  • Pearl
  • Pear
  • Quill
  • Renewed Impressions
  • Radiant Hues
  • Rozet
  • Rhythm
  • Rain
  • Streamed
  • Soft
  • Sandblast
  • St. James
  • Tanglewood
  • Topaz
  • Vapour
  • Vent
  • Waterside
  • Zenith
  • All
    ×
  • 2/8 (32")
  • 2/10 (34")
  • 3/0 (36")
  • All
    ×
  • Avenue
  • Avant
  • Attraction
  • Azur
  • Blanca
  • Bistro
  • Chanelle
  • Celeste
  • Cachet
  • Cumulus
  • Crosswalk
  • Courtyard
  • Cruz
  • Edge
  • Enclosed Blinds
  • Fluid
  • Georgian
  • Grille - 9 Lite Internal
  • Geo-Tex
  • Impressions
  • Kallima
  • Liano
  • Linen
  • Marco
  • Micro-Granite
  • Majestic Patina
  • Majestic Satin Nickel
  • Mistral
  • Mosaic
  • Naples
  • Oak Park
  • Opal
  • Pearl
  • Paris
  • Quill
  • Radiant Hues
  • Rhythm
  • Sandblast
  • Streamed
  • Soft
  • Topaz
  • Vapour
  • Waterside
  • Zenith
  • All
    ×
  • 6/8 (80")
  • 8/0 (96")

1/2 Lite 1 Panel Flush Glazed

27



Close

27

1/2 Lite 1 Panel Flush Glazed

A variation of door panel with flush glazing gives a clean look with larger viewing area. No need for screw-in inserts. An extensive selection of 22" x 36" inserts are available to choose from. Matching glass in flush glazed 1/2 or full panelled sidelites are used with these systems.

For product pairing and brand options, please refer to the ’Specifications’ tab.

Door Options Smooth White Fiberglass
Frame Premium Wood Frame, Smooth White Composite
Width 2/8 (32"), 2/10 (34"), 3/0 (36")
Height 6/8 (80")
Configuration Door Door-Sidelite Sidelite-Door-Sidelite Door-Transom Door-Sidelite-Transom Sidelite-Door-Sidelite-Transom
Door Glass Click swatch to change preview Alys Azur Attraction Avant Avenue Blanca Bistro Chelsea Chord Clear Low-E Courtyard Chanelle Crosswalk Cumulus Cachet Celeste Cruz Element Edge Focus Fluid Grille - Prairie Internal Georgian Geo-Tex Grille - 9 lite Internal Impressions Kallima Linen Liano Micro-Granite Majestic - Patina Majestic - Satin Nickel Mistral Mosaic Marco Nouveau - Patina Nouveau - Satin Nickel Naples Oak Park Opal Pear Pearl Paris Quill Rain Renewed Impressions Radiant Hues Rozet Rhythm St. James Streamed Sandblast Soft Topaz Tanglewood Vapour Waterside Zenith
Sidelite Glass Click swatch to change preview Alys Attraction Avant Azur Avenue Blanca Bistro Chelsea Chord Clear Low-E Cumulus Celeste Cachet Cruz Crosswalk Courtyard Chanelle Direct Glaze - Frosted Direct Glaze - Clear Low-E Element Edge Fluid Grille - Prairie Internal Geo-Tex Georgian Grille - 9 Lite Internal Impressions Kallima Linen Liano Micro-Granite Majestic Patina Majestic Satin Nickel Mistral Mosaic Marco Nouveau - Patina Nouveau - Satin Nickel Naples Oak Park Opal Pear Pearl Paris Quill Rain Renewed Impressions Rhythm Radiant Hues Streamed Sandblast Soft Topaz Vapour Waterside Zenith

1/2 Lite 2 Panel Flush Glazed

23



Close

23

1/2 Lite 2 Panel Flush Glazed

Choosing a flush glazed door gives a clean look with larger viewing area. No need for screw-in inserts. An extensive selection of 22" x 36" inserts are available to choose from. Matching glass in 1/2 or full panelled sidelites are used with these systems.

For product pairing and brand options, please refer to the ’Specifications’ tab.

Door Options Smooth White Fiberglass
Frame Premium Wood Frame, Smooth White Composite
Width 2/8 (32"), 2/10 (34"), 3/0 (36")
Height 6/8 (80")
Configuration Door Door-Sidelite Sidelite-Door-Sidelite Door-Transom Door-Sidelite-Transom Sidelite-Door-Sidelite-Transom
Door Glass Click swatch to change preview Alys Azur Attraction Avant Avenue Blanca Bistro Chelsea Chord Clear Low-E Courtyard Chanelle Crosswalk Cumulus Cachet Celeste Cruz Element Edge Focus Fluid Grille - Prairie Internal Georgian Geo-Tex Grille - 9 lite Internal Impressions Kallima Linen Liano Micro-Granite Majestic - Patina Majestic - Satin Nickel Mistral Mosaic Marco Nouveau - Patina Nouveau - Satin Nickel Naples Oak Park Opal Pear Pearl Paris Quill Rain Renewed Impressions Radiant Hues Rozet Rhythm St. James Streamed Sandblast Soft Topaz Vapour Waterside Zenith
Sidelite Glass Click swatch to change preview Alys Attraction Avant Azur Avenue Blanca Bistro Chelsea Chord Clear Low-E Cumulus Celeste Cachet Cruz Crosswalk Courtyard Chanelle Direct Glaze - Frosted Direct Glaze - Clear Low-E Element Edge Fluid Grille - Prairie Internal Geo-Tex Georgian Impressions Kallima Linen Liano Micro-Granite Majestic Patina Majestic Satin Nickel Mistral Mosaic Marco Nouveau - Patina Nouveau - Satin Nickel Naples Oak Park Opal Pear Pearl Paris Quill Rain Renewed Impressions Rhythm Radiant Hues Streamed Sandblast Soft Topaz Vapour Waterside Zenith

1/2 Lite 2 Panel Insert

28



Close

28

1/2 Lite 2 Panel Insert

An affordable option to match all the doors in your home, available with or without glass. An extensive selection of 22" x 36" inserts are available to choose from. Matching 1/2 or full panelled sidelites are used in these systems.

For product pairing and brand options, please refer to the ’Specifications’ tab.

Door Options High Definition Steel, Smooth White Fiberglass
Frame Premium Wood Frame, Smooth White Composite
Width 2/8 (32"), 2/10 (34"), 3/0 (36")
Height 6/8 (80")
Configuration Door Door-Sidelite Sidelite-Door-Sidelite Door-Transom Door-Sidelite-Transom Sidelite-Door-Sidelite-Transom
Door Glass Click swatch to change preview Alys Azur Attraction Avant Avenue Blanca Bistro Chelsea Chord Clear Low-E Courtyard Chanelle Crosswalk Cumulus Cachet Celeste Cruz Element Edge Enclosed Blinds Focus Fluid Grille - Prairie Internal Georgian Geo-Tex Grille - 9 lite Internal Impressions Kallima Linen Liano Micro-Granite Majestic - Patina Majestic - Satin Nickel Mistral Mosaic Marco Nouveau - Patina Nouveau - Satin Nickel Naples Oak Park Opal Pear Pearl Paris Quill Rain Renewed Impressions Radiant Hues Rozet Rhythm St. James Streamed Sandblast Soft Topaz Vapour Vent Waterside Zenith
Sidelite Glass Click swatch to change preview Alys Attraction Avant Azur Avenue Blanca Bistro Cumulus Chelsea Chord Clear Low-E Celeste Cachet Cruz Crosswalk Courtyard Chanelle Direct Glaze - Frosted Direct Glaze - Clear Low-E Element Edge Enclosed Blinds Fluid Grille - Prairie Internal Geo-Tex Georgian Grille - 9 Lite Internal Impressions Kallima Linen Liano Micro-Granite Majestic Patina Majestic Satin Nickel Mistral Mosaic Marco Nouveau - Patina Nouveau - Satin Nickel Naples Oak Park Opal Pear Pearl Paris Quill Rain Renewed Impressions Rhythm Radiant Hues Streamed Sandblast Soft Topaz Vapour Waterside Zenith

1/2 Lite 6 Panel Insert

62



Close

62

1/2 Lite 6 Panel Insert

Coordinate all entry ways in your home by using a 6 panel slab with or without glass. An extensive selection of 22" x 36" inserts are available to choose from. Matching 1/2 or full panelled sidelites are used in these systems.

For product pairing and brand options, please refer to the ’Specifications’ tab.

Door Options High Definition Steel, Smooth White Fiberglass
Frame Premium Wood Frame, Smooth White Composite
Width 2/6 (30"), 2/8 (32"), 2/10 (34"), 3/0 (36")
Height 6/8 (80")
Configuration Door Door-Sidelite Sidelite-Door-Sidelite Door-Transom Door-Sidelite-Transom Sidelite-Door-Sidelite-Transom
Door Glass Click swatch to change preview Alys Azur Attraction Avant Avenue Blanca Bistro Chelsea Chord Clear Low-E Courtyard Chanelle Crosswalk Cumulus Cachet Celeste Cruz Element Edge Enclosed Blinds Focus Fluid Grille - Prairie Internal Georgian Geo-Tex Grille - 9 lite Internal Impressions Kallima Linen Liano Micro-Granite Majestic - Patina Majestic - Satin Nickel Mistral Mosaic Marco Nouveau - Patina Nouveau - Satin Nickel Naples Oak Park Opal Pear Pearl Paris Quill Rain Renewed Impressions Radiant Hues Rozet Rhythm St. James Streamed Sandblast Soft Topaz Vapour Vent Waterside Zenith
Sidelite Glass Click swatch to change preview Alys Attraction Avant Azur Avenue Blanca Bistro Cumulus Chelsea Chord Clear Low-E Celeste Cachet Cruz Crosswalk Courtyard Chanelle Direct Glaze - Frosted Direct Glaze - Clear Low-E Element Edge Enclosed Blinds Fluid Grille - Prairie Internal Geo-Tex Georgian Grille - 9 Lite Internal Impressions Kallima Linen Liano Micro-Granite Majestic Patina Majestic Satin Nickel Mistral Mosaic Marco Nouveau - Patina Nouveau - Satin Nickel Naples Oak Park Opal Pear Pearl Paris Quill Rain Renewed Impressions Rhythm Radiant Hues Streamed Sandblast Soft Topaz Vapour Waterside Zenith

1/2 Lite 6 Panel Insert Woodgrain

68



Close

68

1/2 Lite 6 Panel Insert Woodgrain

Coordinate all entry ways in your home by using a 6 panel slab with or without glass. The oak woodgrain fiberglass door system accept either paint or stain to match your home's exterior. An extensive selection of 22" x 36" inserts are available to choose from. Matching 1/2 or full panelled sidelites are used in these systems.

For product pairing and brand options, please refer to the ’Specifications’ tab.

Door Options Oak Woodgrain Textured Fiberglass
Frame Oak Woodgrain Textured Composite
Width 2/8 (32"), 2/10 (34"), 3/0 (36")
Height 6/8 (80"), 8/0 (96")
Configuration Door Door-Sidelite Sidelite-Door-Sidelite Door-Transom Door-Sidelite-Transom Sidelite-Door-Sidelite-Transom
Door Glass Click swatch to change preview Alys Azur Attraction Avant Avenue Blanca Bistro Chelsea Chord Clear Low-E Courtyard Chanelle Crosswalk Cumulus Cachet Celeste Cruz Element Edge Enclosed Blinds Focus Fluid Grille - Prairie Internal Georgian Geo-Tex Grille - 9 lite Internal Impressions Kallima Linen Liano Micro-Granite Majestic - Patina Majestic - Satin Nickel Mistral Mosaic Marco Nouveau - Patina Nouveau - Satin Nickel Naples Oak Park Opal Pear Pearl Paris Quill Rain Renewed Impressions Radiant Hues Rozet Rhythm St. James Streamed Sandblast Soft Topaz Vapour Vent Waterside Zenith
Sidelite Glass Click swatch to change preview Alys Attraction Avant Azur Avenue Blanca Bistro Cumulus Chelsea Chord Clear Low-E Celeste Cachet Cruz Crosswalk Courtyard Chanelle Direct Glaze - Frosted Direct Glaze - Clear Low-E Element Edge Enclosed Blinds Fluid Grille - Prairie Internal Geo-Tex Georgian Grille - 9 Lite Internal Impressions Kallima Linen Liano Micro-Granite Majestic Patina Majestic Satin Nickel Mistral Mosaic Marco Nouveau - Patina Nouveau - Satin Nickel Naples Oak Park Opal Pear Pearl Paris Quill Rain Renewed Impressions Rhythm Radiant Hues Streamed Sandblast Soft Topaz Vapour Waterside Zenith

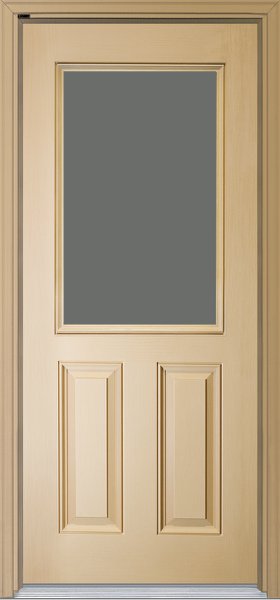

1/2 Lite 2 Panel Flush Glazed Woodgrain

23



Close

23

1/2 Lite 2 Panel Flush Glazed Woodgrain

A 2 panel slab provides an affordable option. Choosing a flush glazed door gives a clean look wiht larger viewing area. No need for screw-in inserts. An extensive selection of 22" x 36" inserts are available to choose from. The oak woodgrain fiberglass door system accepts either paint or stain to match your home's exterior. Matching 1/2 or full panelled sidelites are used in these systems.

For product pairing and brand options, please refer to the ’Specifications’ tab.

Door Options Oak Woodgrain Textured Fiberglass
Frame Oak Woodgrain Textured Composite
Width 2/8 (32"), 2/10 (34"), 3/0 (36")
Height 6/8 (80")
Configuration Door Door-Sidelite Sidelite-Door-Sidelite Door-Transom Door-Sidelite-Transom Sidelite-Door-Sidelite-Transom
Door Glass Click swatch to change preview Alys Azur Attraction Avant Avenue Blanca Bistro Chelsea Chord Clear Low-E Courtyard Chanelle Crosswalk Cumulus Cachet Celeste Cruz Element Edge Focus Fluid Grille - Prairie Internal Georgian Geo-Tex Grille - 9 lite Internal Impressions Kallima Linen Liano Micro-Granite Majestic - Patina Majestic - Satin Nickel Mistral Mosaic Marco Nouveau - Patina Nouveau - Satin Nickel Naples Oak Park Opal Pear Pearl Paris Quill Rain Renewed Impressions Radiant Hues Rozet Rhythm St. James Streamed Sandblast Soft Topaz Vapour Waterside Zenith
Sidelite Glass Click swatch to change preview Alys Attraction Avant Azur Avenue Blanca Bistro Cumulus Chelsea Chord Clear Low-E Celeste Cachet Cruz Crosswalk Courtyard Chanelle Direct Glaze - Frosted Direct Glaze - Clear Low-E Element Edge Fluid Grille - Prairie Internal Geo-Tex Georgian Grille - 9 Lite Internal Impressions Kallima Linen Liano Micro-Granite Majestic Patina Majestic Satin Nickel Mistral Mosaic Marco Nouveau - Patina Nouveau - Satin Nickel Naples Oak Park Opal Pear Pearl Paris Quill Rain Renewed Impressions Rhythm Radiant Hues Streamed Sandblast Soft Topaz Vapour Waterside Zenith

Artisan Series Features

  • Available in 6'8" or 8'0" heights* and 2'8", 2'10" or 3'0" widths* (*3'6" width and 8/0 height available for select designs)
  • 2x4 (4 9/16"), 2x6 (6 9/16"), or custom to 2x8 (8 7/8") construction, left or right hand, inswing or outswing
  • Wide variety of designs and styles
  • Optional direct glazed 12" or 14" sidelite/s or 14" transom
  • Complete with ball bearing hinges, extruded aluminum sill, 2" brickmould and weatherstrip
  • Single, double, deadbolt/pull, or multipoint drilling options available

Configurations

Artisan Series doors are available in 2/8, 2/10, 3/0, and 3/6 widths–as noted in design specifications for each product–with 2x4 (4 9/16"), 2x6 (6 9/16"), 2x8 (8 9/16") jamb construction, left hand or right hand application, and inswing or outswing.

Finished Frame Widths

Door dimensions are based on a 14" height rectangular transom and a 12" or 14" sidelite.

Finished Frame Heights

  • 6/8 Inswing – Finished Frame Height:  82"
  • 6/8 Outswing – Finished Frame Height:  81"
  • 8/0 Inswing – Finished Frame Height:  98"
  • 8/0 Outswing – Finished Frame Height:  97"

Rough Opening Measurements

To calculate rough opening, add 1" to width and add 1/2" to height of net frame.

Rough Opening Measurements to Include Transom

For all transoms, add 15 3/4" to height of net frame. For decorative transoms, add 3/4" to width of net frame.

OSM Brickmould

To calculate the outside measurement of the brickmould, add 2 1/2" to width and 1 1/4" to height of net frame.

Steel Doors

Madero's collection of high definition steel door systems provides you with the perfect choice to suit your needs, from general use to high-end quality and appearance. Our steel door systems feature high definition embossing with paintable primed or prefinished polytex white surfaces and the strength of internal wood blocking for a variety of hardware options.

Fiberglass Door

Smooth white pre-pigmented and woodgrain textured fiberglass doors are specifically designed to withstand the harsh Canadian climate. High definition impact-resistant fiberglass skins will not dent, expand, contract, bow, warp or twist and rigid internal structure of the door slab prevents the occurence of bowing and warping.

Wood vs. Composite Frames

Weather-Tight Solution

Finishing

Steel doors are supplied with either primed or factory white polytex finish, dependent on the product. Though painting may not be required to achieve full warranty, doors can be easily finished to match the style of your home.

Smooth white fiberglass doors are supplied in their natural pre-pigmented warm white finish. Though painting is not required, these doors will accept an array of paint colours to match the decor of your home.

Woodgrain fiberglass doors are supplied with factory almond finish, requiring paint or stain to achieve a realistic, rich appearance. Pre-finished stain options are available.

For dark coloured finishes, heat reflective paint is required to achieve a full warranty.

* Painted or stained doors are shown for marketing purposes only.

Pre-finishing Options

Finished to Suit Your Style

Madero has identified and selected some of the most popular paint and stain colours. Streamline the colour matching process for your project by selecting from Madero's popular colour choices. Contact your supplier for more details.

Brand Options

Glass Frame Options

Traditional Profile Insert

The most widely used design for door glass has been a traditional screw-in glass insert. Usually the lowest cost option, these frames provide excellent insulation and require little or no maintenance. Traditional profile frames do not require finishing, but can be painted to match your door colour.

Contemporary Profile Insert

With its clean profile, this frame is the ideal choice for the modern look door with multiple cut-outs, such as the 3 lite or narrow lite. The profile brings the focus on your door glass selection. The frame can be painted or stained.

Modern Profile Inserts - Spotlites

Door slab is cut out in manufacturing to accept modern profile spotlite inserts. Spotlite door glass frames are constructed in high performance Fibermate® moulded and textured, that work equally well for painting or staining. The textured grain is reminiscent of classic mid-century maple and birch furniture.

Flush Glazed Fiberglass Door Designs

Flush glazed fiberglass slabs provide sleek lines to give the perception of a more enhanced viewing area. The smooth grain pre-pigmented white or oak woodgrain slab is consistent from door edge to glass. The slab is manufactured as a one piece open and beaded mould with glass installed during the assembly process.

Direct Glazed Sidelites and Transoms

Consistent with the modern appeal of the flush glazed door design, direct glaze sidelites and transoms provide full unobscured glass coverage. Glass extends edge to edge, with no need for a sidelite door panel, allowing sunlight in to brighten your entryway.

Hardware Options

Hardware is not an afterthought, but an important design decision. Once you have chosen your door style, it is the time to give thought to what you will use for door hardware.

Choose your hardware from any selection of brands or styles. Please specify at the time of ordering: single drill (ideal for single lever or knob style hardware), double drill (ideal for handlesets, lever or knob with deadbolt), modern pull with deadbolt, or multipoint hardware for single door option.

View Madero's Residential Hardware Options



Hinge Options

Door hinges look their best when matched to the locksets and glass caming you plan to use. Madero's standard hinge finish is C-2G Zinc Plated, though we will change the finish based on the hardware or glass that you've chosen.

Artisan Series door systems feature 4" x 4" ball bearing hinges, available in 5 finishes:  C-2G Zinc Plated (standard hinge finish), C-4 Brushed Brass, C-10B Oil Rubbed Bronze, C-26D Brushed Chrome, and C-1D Matte Black.
