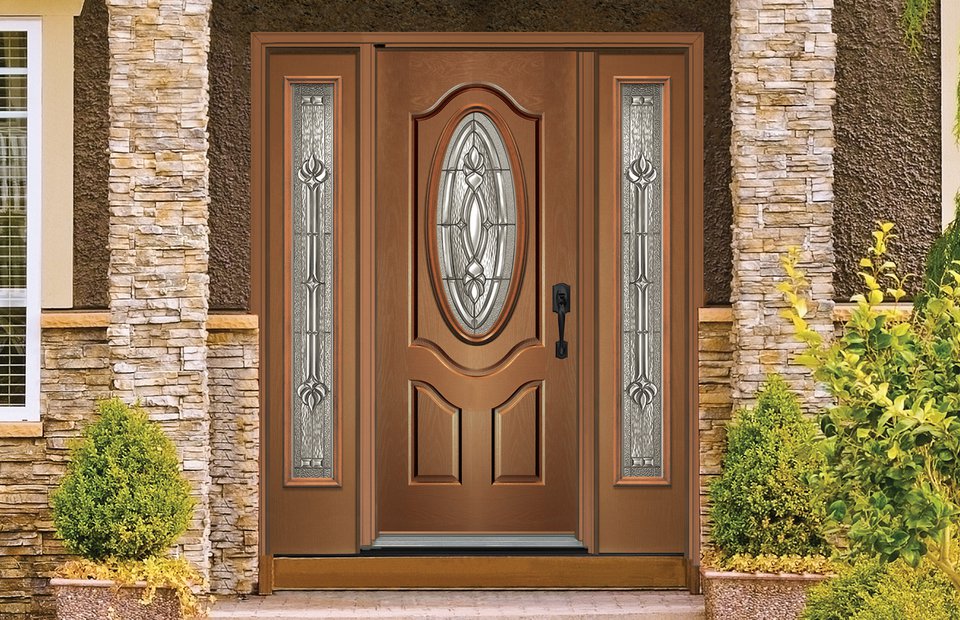

3/4 Oval

• Available in 6'8" or 8'0" heights* and 2'8", 2'10" or 3'0" widths* (*3'6" width and 8/0 height available for select designs)
• 2x4 (4 9/16"), 2x6 (6 9/16"), or custom to 2x8 (8 7/8") construction, left or right hand, inswing or outswing
• Wide variety of designs and styles
• Optional direct glazed 12" or 14" sidelite/s or 14" transom
• Complete with ball bearing hinges, extruded aluminum sill, 2" brickmould and weatherstrip
• Single, double, deadbolt/pull, or multipoint drilling options available

Artisan Series doors are available in 2/8, 2/10, 3/0, and 3/6 widths–as noted in design specifications for each product–with 2x4 (4 9/16"), 2x6 (6 9/16"), 2x8 (8 9/16") jamb construction, left hand or right hand application, and inswing or outswing.

Door dimensions are based on a 14" height rectangular transom and a 12" or 14" sidelite.

• 6/8 Inswing – Finished Frame Height:  82"
• 6/8 Outswing – Finished Frame Height:  81"
• 8/0 Inswing – Finished Frame Height:  98"
• 8/0 Outswing – Finished Frame Height:  97"

Rough Opening Measurements

To calculate rough opening, add 1" to width and add 1/2" to height of net frame.

Rough Opening Measurements to Include Transom

For all transoms, add 15 3/4" to height of net frame. For decorative transoms, add 3/4" to width of net frame.

OSM Brickmould

To calculate the outside measurement of the brickmould, add 2 1/2" to width and 1 1/4" to height of net frame.

Madero's collection of high definition steel door systems provides you with the perfect choice to suit your needs, from general use to high-end quality and appearance. Our steel door systems feature high definition embossing with paintable primed or prefinished polytex white surfaces and the strength of internal wood blocking for a variety of hardware options.

Smooth white pre-pigmented and woodgrain textured fiberglass doors are specifically designed to withstand the harsh Canadian climate. High definition impact-resistant fiberglass skins will not dent, expand, contract, bow, warp or twist and rigid internal structure of the door slab prevents the occurence of bowing and warping.

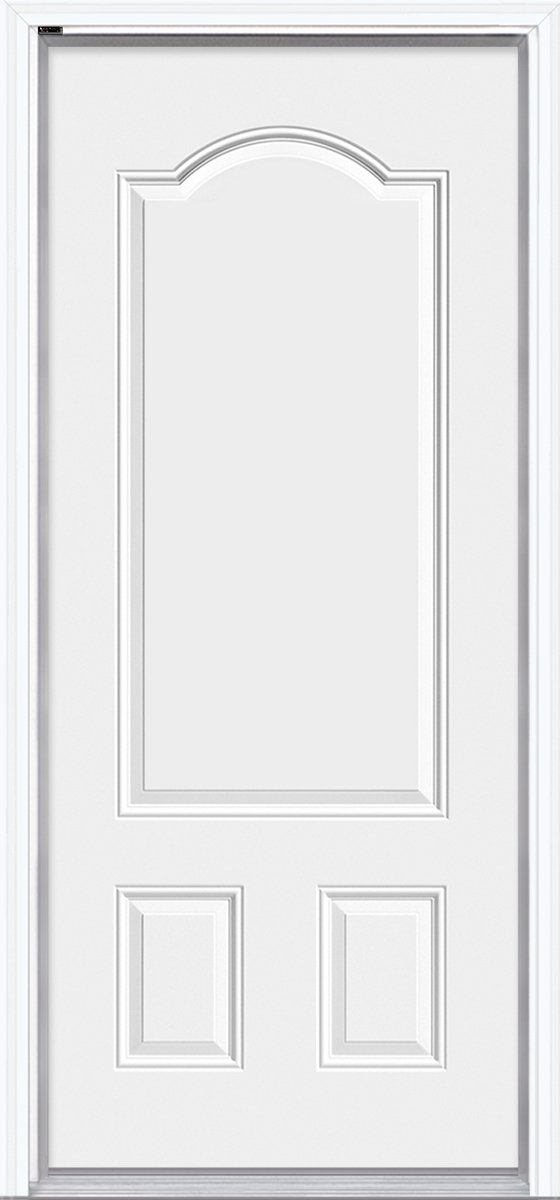

Steel doors are supplied with either primed or factory white polytex finish, dependent on the product. Though painting may not be required to achieve full warranty, doors can be easily finished to match the style of your home.

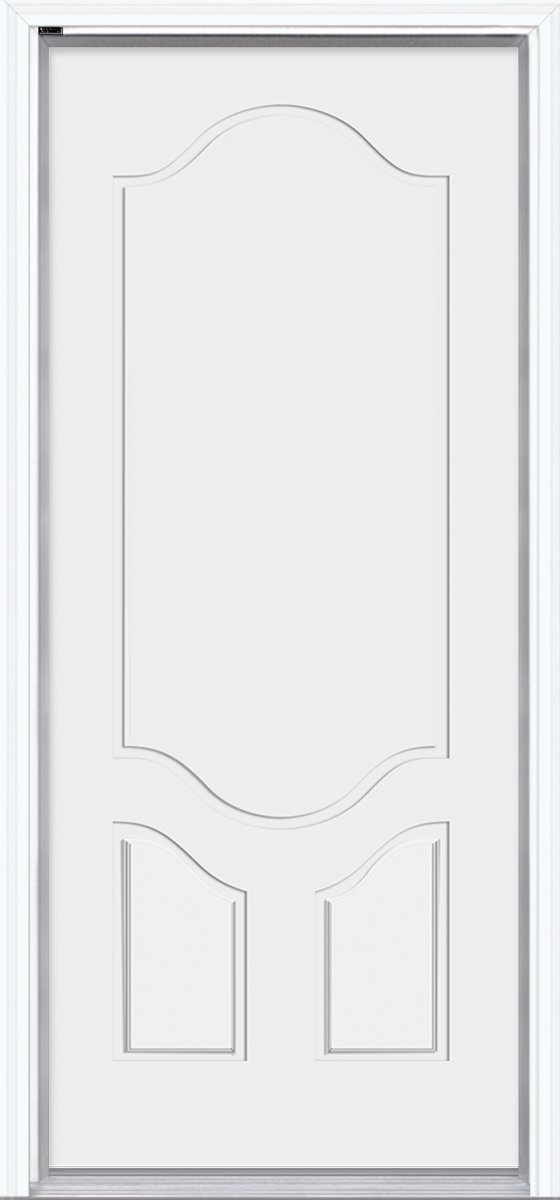

Smooth white fiberglass doors are supplied in their natural pre-pigmented warm white finish. Though painting is not required, these doors will accept an array of paint colours to match the decor of your home.

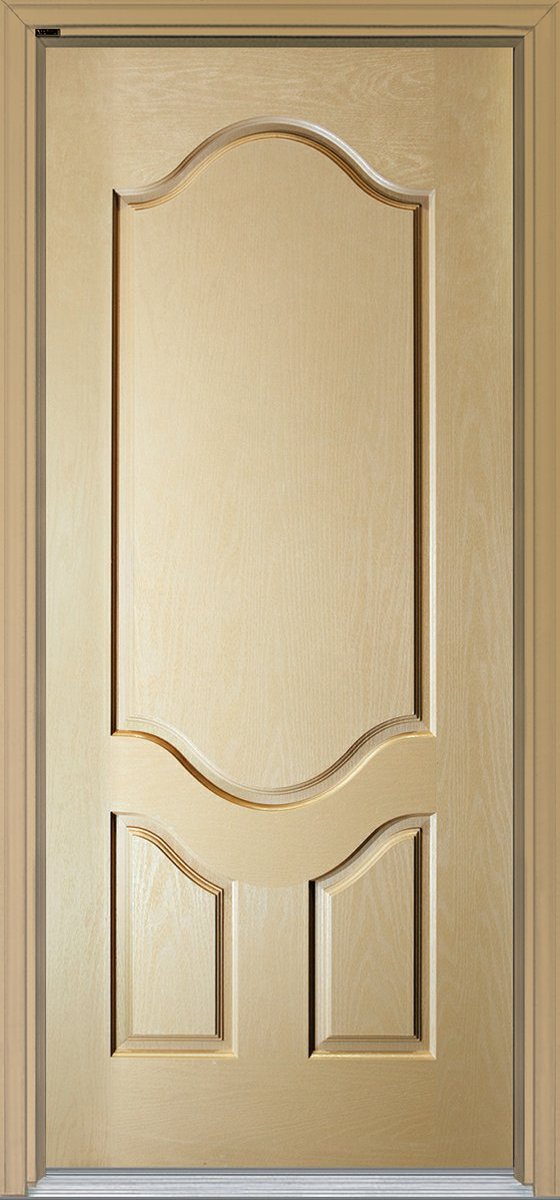

Woodgrain fiberglass doors are supplied with factory almond finish, requiring paint or stain to achieve a realistic, rich appearance. Pre-finished stain options are available.

For dark coloured finishes, heat reflective paint is required to achieve a full warranty.

* Painted or stained doors are shown for marketing purposes only.

Finished to Suit Your Style

Madero has identified and selected some of the most popular paint and stain colours. Streamline the colour matching process for your project by selecting from Madero's popular colour choices. Contact your supplier for more details.
