Taymor 550 Series
From the heaviest duty commercial fire doors down to light duty residential doors, count on Taymor Door Closer products for code compliance, longevity, and construction project value.
- Designs

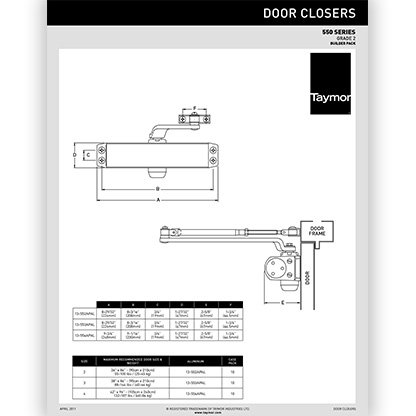

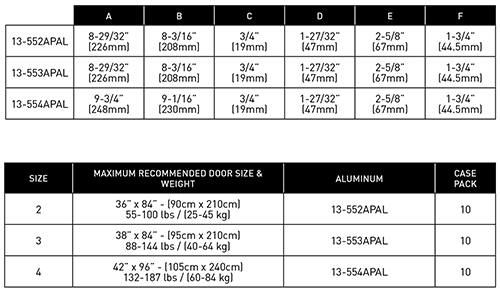

- Specifications
- Downloads
- Ultra heavy-duty rack & pinion mechanism
- Ultra heavy-duty cast iron body
- Power adjustable sizes 1-6
- Easy-to-use adjustment instructions
- Full cUL & UL positive pressure compliance
- Meets or exceeds the requirements of BHMA/ANSI 156.4 Grade 2
- UL and c-UL listed compliant UL10C for positive pressure
- Spring size closer 2, 3 and 4
- High strength aluminum alloy body
- Non-handed
- Two independent adjustable valves control sweeping and latching speed
- Universal mounting (regular and parallel brackets included)
- Supplied with both machine and wood screws
- Available in aluminum finish
- 5 year warranty
550 Series Door Closer
