Residential & Multi-family > Hardware > Deadbolts

Schlage B-Series Deadbolts

Secure your home with the most reliable professional security locks and deadbolts.

Schlage's deadbolt locks deliver ANSI Grade 1 security and superior protection against everything from lock bumping, picking and kick-ins. Plus, they can be installed in a snap with Schlage’s patented Snap-n-Stay™ Technology.

Now it’s easier than ever to secure your home—and safeguard your family.

  • Designs
  • Specifications
  • Downloads
  • All
    ×
  • 505/605 Bright Brass
  • 505/605 Bright Brass
  • 608 Satin Brass
  • 609 Antique Brass
  • 618 Polished Nickel
  • 619 Satin Nickel
  • 620 Antique Pewter
  • 621 Distressed NIckel
  • 622 Matte Black
  • 625 Bright Chrome
  • 626 Satin Chrome
  • 630 Satin Stainless Steel
  • 716 Aged Bronze

Single Cylinder

B60



Close

B60

Single Cylinder

  • Deadbolt thrown or retracted by key from outside or by inside turn unit
  • Bolt automatically locks when fully thrown

    • Schlage Finishes Click swatch to change preview 505/605 Bright Brass 608 Satin Brass 609 Antique Brass 618 Polished Nickel 619 Satin Nickel 620 Antique Pewter 621 Distressed NIckel 622 Matte Black 625 Bright Chrome 626 Satin Chrome 716 Aged Bronze
    Decorative Trim Click swatch to change preview Addison (ADD) Berkley (BRK) Camelot (CAM) Century (CEN) Greenwich (GRW)

    Deadbolt Only - Double Cylinder

    B62



    Close

    B62

    Deadbolt Only - Double Cylinder

  • Deadbolt thrown or retracted by key from either side
  • Bolt automatically deadlocks when fully thrown

    • Schlage Finishes Click swatch to change preview 505/605 Bright Brass 608 Satin Brass 609 Antique Brass 618 Polished Nickel 619 Satin Nickel 620 Antique Pewter 621 Distressed NIckel 622 Matte Black 625 Bright Chrome 626 Satin Chrome 716 Aged Bronze

    One Sided Deadbolt

    B80



    Close

    B80

    One Sided Deadbolt

  • Deadbolt thrown or retracted from interior side only
  • No exterior plate or exposed trim

    • Schlage Finishes Click swatch to change preview 505/605 Bright Brass 609 Antique Brass 619 Satin Nickel 620 Antique Pewter 621 Distressed NIckel 622 Matte Black 625 Bright Chrome 626 Satin Chrome 716 Aged Bronze

    One Sided Deadbolt with Exterior Plate

    B81SGL



    Close

    B81SGL

    One Sided Deadbolt with Exterior Plate

  • Deadbolt thrown or retracted from interior side only
  • Exterior plate covers exposed prep on outside

    • Schlage Finishes Click swatch to change preview 505/605 Bright Brass 609 Antique Brass 619 Satin Nickel 620 Antique Pewter 621 Distressed NIckel 622 Matte Black 625 Bright Chrome 626 Satin Chrome 716 Aged Bronze

    Schlage B-Series Features

    • Applications: residential single- and multi-family doors
    • Single or Double Cylinder Keyed Locks
    • Biggest adjustable bolt available
    • Pins and Plate Protection. Anti-drill pins and plates prevent your lock from being drilled out.
    • Reinforced security with an extra anti-pick shield inside, protecting the inner latch.
    • One-piece exterior makes Schlage deadbolt locks harder to tamper with or break.
    • The patented Snap & Stay™ Technology makes them easy to install.
    • Available in a variety of styles and finishes.

    B-Series Deadbolts Specifications

    • Applications: Residential single- and multi-family doors
    • Certifications: Meets Grade 1 BHMA requirements
    • U.L. Listed: Locks for up to three-hour fire doors available
    • Keying: 5-pin tumbler C keyway standard, with two brass keys; 6-pin cylinder available
    • Door thickness range: 1-3/8” to 1-3/4” (5mm-51mm) standard
    • Backset: Universal deadbolts fit 2-3/8” or 2-3/4” backset

    SECURITY:

    • BHMA Grade 1 product performance
    • Increased latch/bolt size offers maximum kick-in resistance
    • Exclusive patented Schlage design
    • Anti-pick shield protects against hammer and crowbar attacks

    QUALITY:

    • Schlage Limited Lifetime Mechanical and Finish Warranty
    • Finishes that feature ultraviolet (UV) resistance up to 4 times the BHMA standard: Satin Nickel, Bright Brass, Antique Brass, and Antique Pewter
    • Contoured edges for added style

    CONVENIENCE:

    • SNAP & STAY™ design cuts installation time in half
    • Larger thumb turn is easier to grip
    • 3-piece assembly
    • Fits all standard door preps

    Finish Options

    B-Series Exploded View with All Parts

    B-Series Decorative Trim Exploded View with All Parts

    Functions

    B60 / E2152 - Single Cylinder Deadbolt Lock

    • Deadbolt thrown or retracted by key from outside or by inside turn unit
    • Bolt automatically deadlocks when fully thrown



    B62 / E2142 - Double Cylinder Deadbolt Lock

    • Deadbolt thrown or retracted by key from either side
    • Bolt automatically deadlocks when fully thrown



    B80 / E2192 - One-Sided Deadbolt

    • Deadbolt thrown or retracted from interior side only
    • No exterior plate or exposed trim
    • Non-graded



    B81 - One-sided Deadbolt with Exterior Plate

    • Deadbolt thrown or retracted from interior side only
    • Exterior plate covers exposed prep on outside
    • Non-graded

    Door Preparation

    B-Series Residential Deadbolt
    B-Series Residential Deadbolt
    Schlage Product Catalogue
    Schlage Product Catalogue

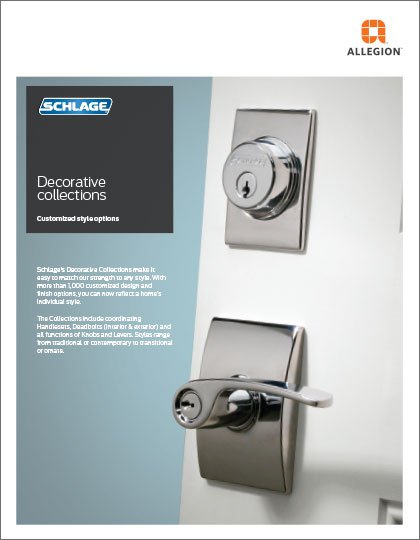

    Schlage F-Series Decorative Collections
