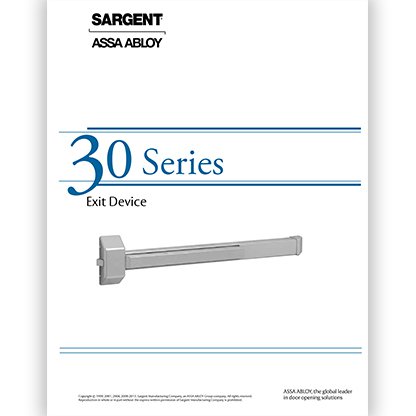

Sargent 30 Series

Rugged exit device

Easy installation and maintenance

Tapered push rail and angled covers

Available in four different functions with various trim selections

Functions
Trim
Designs
Specifications
Finishes
Downloads

04 night latch - 28-K-LL

Key in lever retracts latchbolt

(2828 or 3838 only)

04 night latch - 28-K-OB

Key in knob retracts latchbolt

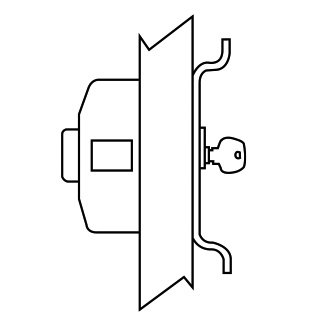

04 night latch - 814-HTB

Outside by pull and key

(2828 or 3838 only)

06 night latch - 28-N-LL

Lever operates only when key is in cylinder and turned

10 dummy - 28-D-LL

Outside pull when push bar is locked down

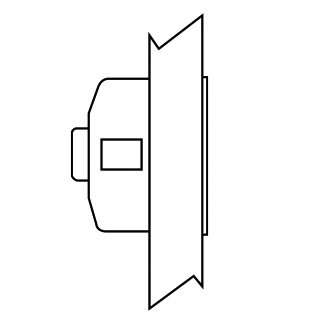

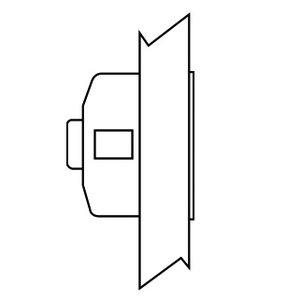

10 exit only - 802-GTB

Blank plate to cover 161 cutout

10 exit only with pull - 810-GTB

Outside pull when push bar is locked down

13 entrance - 28-C-LL

Key in lever, locks or unlocks lever

13 entrance - 28-C-OB

Key in knob, locks or unlocks knob

15 passage - 28-L-LL

Latchbolt operated by lever

15 passage - 28-L-OB

Latchbolt operated by knob

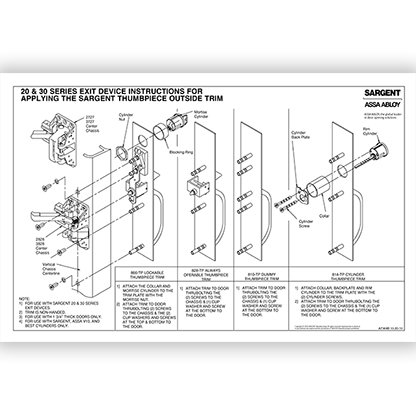

TP

1-3/4" door only

04 function not available

E-GTB - plate

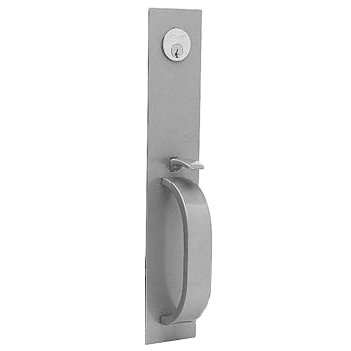

D-GTB - finger grip pull

K-HTB - finger grip pull

B - lever

L - lever

P - lever

L - rose

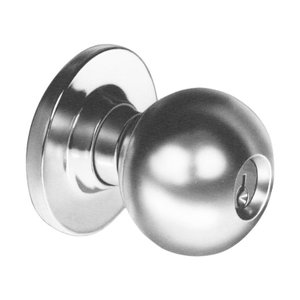

OB - knob

O Rose, B Knob

04 function not available

Sargent 3727

Surface Vertical Rod Exit Device

The 3727 is a rugged exit device in surface vertical rod and rim designs. It has 6 functions, 4 available trim designs and is easy to mix and match device and trim.

Sargent 3828

Multi-Function Rim Exit Device

The 3828 is a rugged exit device in a rim design and has 7 functions, 4 available trims and is easy to mix and match the device and trim.

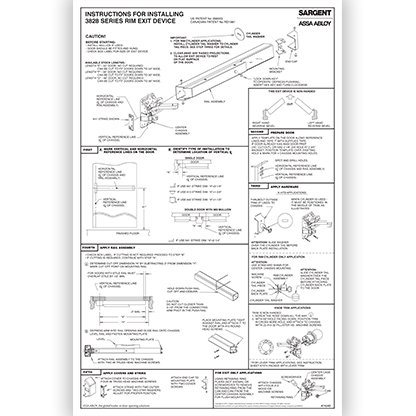

Sargent 3828 Non-Configured Rim Rugged Exit Device

Features

Chassis mounted unit construction assures easy installation and maintenance
Tapered push rail and angled covers
Steel endcaps and covers
Available in seven different functions
ANSI/BHMA Standard 156.3 Grade 1
UL Listed to Canadian safety standards
Note: Any retrofit or other field modification to a fire rated opening can potentially impact the fire rating of the opening, and Sargent Manufacturing Company makes no representations or warranties concerning what such impact may be in any specific situation. When retrofitting any portion of an existing fire rated opening, or specifying and installing a new fire-rated opening, please consult with a code specialist or local code official (Authority Having Jurisdiction) to ensure compliance with all applicable codes and ratings.
Available as Fire Exit Hardware (12-)

Specifications

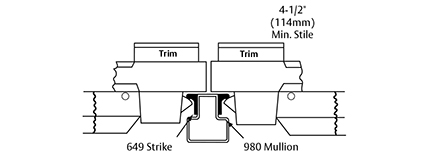

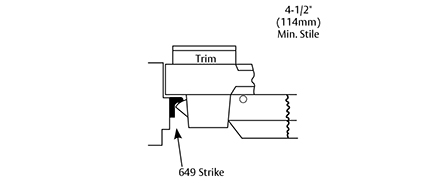

For Doors: 1-3/4" (44mm) thick standard. 4-1/2" (114mm) minimum stile width required for single or double door applications using standard 649 strike
Outside Trim: 28 series lever and rose trims, GTB Pulls and plates, OB knob and trims and Thumb Piece trims
Mounting: Furnished standard with wood and machine screws; Available with through bolts and mortise nuts
Cover: Steel
Chassis: Nonferrous alloy
Rail Assembly: Roll formed steel
End Cap: Steel
Hand: Non-handed
Latchbolt: Stainless steel 3/4" (19mm) throw

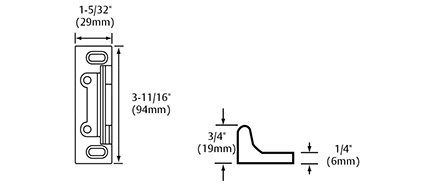

Strike: 649 packed standard
Dogging Feature: Allen-type key furnished standard (non fire rated devices only)

Options/Prefixes:

10 - SARGENT Signature key system
10-21 - SARGENT Signature construction key system (lost ball)
10-63 - SARGENT Signature removable core cylinder
11 - SARGENT XC key system
11-21 - XC construction key system (lost ball)
11-60 - Device to accept XC permanent removable core, disposable plastic core provided
11-63 - Device provided with XC removable core cylinder (includes masterkeying and grand masterkeying)
11-64 - Device provided with keyed construction core to accept XC removable permanent core (ordered separately)
11-65-73-7P - Device provided to accept XC uncombined 7-pin SFIC permanent core (10 line J lever not available)
11-70-7P - Device to accept XC 7-pin SFIC permanent cores, plastic disposable core provided (10 line J lever not available)
11-72-7P - Device to accept XC SFIC, 7-pin keyed construction core provided, permanent core cylinder ordered separately (10 line J lever not available)
11-73-7P - Device supplied with XC 7-pin SFIC (includes masterkeying, grand masterkeying; 10 line J lever not available)
12 - UL Fire Label
16 - Cylinder lockdown (non fire rated exit devices only)
21 - SARGENT Lost Ball Construction Key System
22 - SARGENT Split Key Key System (existing systems only)
55 - Request-to-Exit Signal Switch, Rail Monitoring Option
60 - SARGENT Removable Disposable Construction Core
63 - SARGENT Removable Core Cylinder
64 - Sargent Removable Core Construction Core Cylinder
6573 - Small Format Interchangeable Core 6-pin uncombinated core
70 - Small Format Interchangeable Disposable Plastic Construction Core
72 - Small Format Interchangeable Core 6-pin Construction Core Cylinder
73 - Small Format Interchangeable Core 6-pin
80 - Levers to accept Keso and Keso F1 Cylinders - No cylinder provided
81 - Cylinder to Accept Keso & Keso F1 Removable Core - No core provided
82 - SARGENT Keso Security Cylinder (existing systems only)
83 - SARGENT Keso Security Removable Core Cylinder
84 - SARGENT Keso Security Removable Construction Core Cylinder
BR - Bump Resistant Cylinder
DG1- - Degree Key System, Level 1. Utility patented with protection against bumping and picking. For mortise, rim and LFIC.
DG1-21- - Degree Level 1 Construction Master Keying
DG1-60- - Degree Level 1 Removable Disposable Construction Core
DG1-63- - Degree Level 1 Removable Core
DG1-64- - Degree Level 1 Removable Construction Keyed LFIC
DG1-65- - Degree Level 1 Unassembled/Uncombined Core
DG2- - Degree Key System, level 2. Utility patented with patented side bar locking. Geographic exclusivity. For use with mortise, rim and LFIC.
DG2-21- - Degree Level 2 Construction Master Keying
DG2-60- - Degree Level 2 Removable Disposable Construction Core
DG2-63- - Degree Level 2 Removable Core
DG2-64- - Degree Level 2 Removable Construction Keyed LFIC
DG2-65- - Degree Level 2 Unassembled/Uncombined Core
DG3- - Degree Key System, level 3. Certified to UL437. Superior resistance to physical attack and protection against unauthorized key duplication. Available for mortise, rim and LFIC.
DG3-21- - Degree Level 3 Construction Master Keying
DG3-60- - Degree Level 3 Removable Disposable Construction Core
DG3-63- - Degree Level 3 Removable Core
DG3-64- - Degree Level 3 Removable Construction Keyed LFIC
F182 - Lock provided with SARGENT Keso F1 Security Cylinder
LC- - Less Cylinder
NB - Less Bottom Rod
SC - Schlage 'C' Keyway Cylinder '0' Bitted
SE - Schlage 'E' Keyway Cylinder '0' Bitted

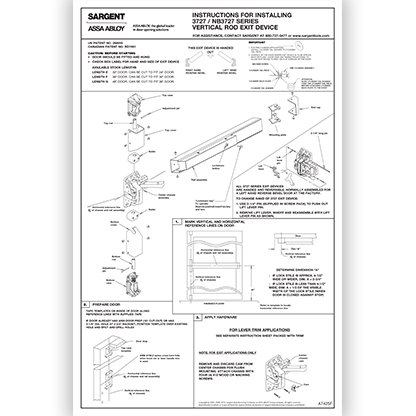

Sargent 3727 Surface Vertical Rod Rugged Exit Device

Features

Chassis mounted unit construction assures easy installation and maintenance
Tapered push rail and angled covers
Steel endcaps and covers
Available in six functions
UL Listed
UL Listed to Canadian safety standards Note: Any retrofit or other field modification to a fire rated opening can potentially impact the fire rating of the opening, and Sargent Manufacturing Company makes no representations or warranties concerning what such impact may be in any specific situation. When retrofitting any portion of an existing fire rated opening, or specifying and installing a new fire-rated opening, please consult with a code specialist or local code official (Authority Having Jurisdiction) to ensure compliance with all applicable codes and ratings.
Available as Fire Exit Hardware (12-)
Meets ANSI/BHMA standard 156.3, Grade 1

Specifications

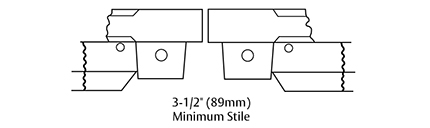

For Doors: 1-3/4" (44mm) thick standard. 3-3/4" (95mm) minimum stile width required for single door applications. 3-1/2" (89mm) minimum stile width required for double door application
Outside Trim: 28 series lever and rose trims, GTB Pulls and Plates, OB knob trims and thumb piece trims
Mounting: Furnished standard with wood and machine screws; Available with through bolts and mortise nuts
Cover: Steel
Chassis: Nonferrous alloy
Rail Assembly: Roll formed steel

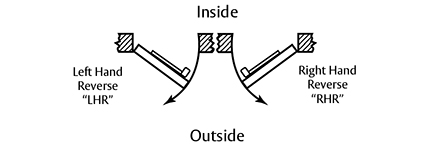

Hand: Reversible. Device is packed standard LHRB
Latchbolt: Brass

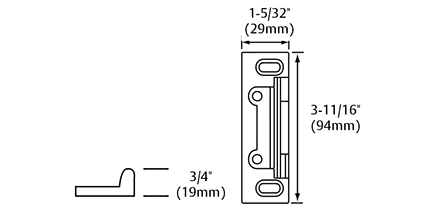

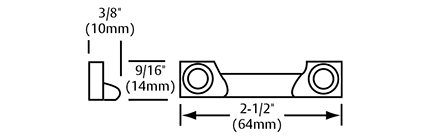

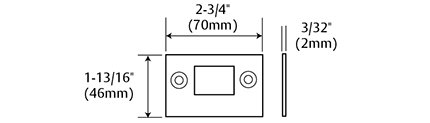

Strikes: 646 Top Strike (Panic & fire), 655 Bottom Strike (fire), 624 Bottom Strike (Panic)
Dogging Feature: Allen-type key furnished standard (Non Fire Rated Devices

Options/Prefixes:

10 - SARGENT Signature key system
11 - SARGENT XC key system
11-21 - XC construction key system (lost ball)
11-60 - Device to accept XC permanent removable core, disposable plastic core provided
11-63 - Device provided with XC removable core cylinder (includes masterkeying and grand masterkeying)
11-64 - Device provided with keyed construction core to accept XC removable permanent core (ordered separately)
11-65-73-7P - Device provided to accept XC uncombined 7-pin SFIC permanent core (10 line J lever not available)
11-70-7P - Device to accept XC 7-pin SFIC permanent cores, plastic disposable core provided (10 line J lever not available)
11-72-7P - Device to accept XC SFIC, 7-pin keyed construction core provided, permanent core cylinder ordered separately (10 line J lever not available)
11-73-7P - Device supplied with XC 7-pin SFIC (includes masterkeying, grand masterkeying; 10 line J lever not available)
12 - UL Fire Label
16 - Cylinder lockdown (non fire rated exit devices only)
21 - SARGENT Lost Ball Construction Key System
22 - SARGENT Split Key Key System (existing systems only)
55 - Request-to-Exit Signal Switch, Rail Monitoring Option
60 - SARGENT Removable Disposable Construction Core
63 - SARGENT Removable Core Cylinder
64 - Sargent Removable Core Construction Core Cylinder
6573 - Small Format Interchangeable Core 6-pin uncombinated core
70 - Small Format Interchangeable Disposable Plastic Construction Core
72 - Small Format Interchangeable Core 6-pin Construction Core Cylinder
737P - Small Format Interchangeable Core 7-pin Construction Core Cylinder
80 - Levers to accept Keso and Keso F1 Cylinders - No cylinder provided
81 - Cylinder to Accept Keso & Keso F1 Removable Core - No core provided
82 - SARGENT Keso Security Cylinder (existing systems only)
83 - SARGENT Keso Security Removable Core Cylinder
84 - SARGENT Keso Security Removable Construction Core Cylinder
BR - Bump Resistant Cylinder
DG1- - Degree Key System, Level 1. Utility patented with protection against bumping and picking. For mortise, rim and LFIC.
DG1-21- - Degree Level 1 Construction Master Keying
DG1-60- - Degree Level 1 Removable Disposable Construction Core
DG1-63- - Degree Level 1 Removable Core
DG1-64- - Degree Level 1 Removable Construction Keyed LFIC
DG1-65- - Degree Level 1 Unassembled/Uncombined Core
DG2- - Degree Key System, level 2. Utility patented with patented side bar locking. Geographic exclusivity. For use with mortise, rim and LFIC.
DG2-21- - Degree Level 2 Construction Master Keying
DG2-60- - Degree Level 2 Removable Disposable Construction Core
DG2-63- - Degree Level 2 Removable Core
DG2-64- - Degree Level 2 Removable Construction Keyed LFIC
DG2-65- - Degree Level 2 Unassembled/Uncombined Core
DG3- - Degree Key System, level 3. Certified to UL437. Superior resistance to physical attack and protection against unauthorized key duplication. Available for mortise, rim and LFIC.
DG3-21- - Degree Level 3 Construction Master Keying
DG3-60- - Degree Level 3 Removable Disposable Construction Core
DG3-63- - Degree Level 3 Removable Core
DG3-64- - Degree Level 3 Removable Construction Keyed LFIC
F182 - Lock provided with SARGENT Keso F1 Security Cylinder
LC- - Less Cylinder
NB - Less Bottom Rod
SC - Schlage 'C' Keyway Cylinder '0' Bitted
SE - Schlage 'E' Keyway Cylinder '0' Bitted
