Roof Hatches

Babcock-Davis Roof Hatch FInishes

Powder Coat Finish

The standard (RHPG) red oxide powder coat finish provides outstanding corrosion resistance, superior gloss and color retention.

Optional White Powder Coat

Available with High Reflectance White Powder Coat Steel to reduce heat island effect. Specify model RHPW when ordering.

BRHP Personnel Roof Hatch (Stocking)

Specifications

• MATERIAL:

  • Aluminum: 11 gauge, mill finish; or Steel: 14 gauge galvanneal, red oxide or high reflectance white powder coat
  • Optional Stainless Steel: Type 304 14 gauge, 2B finish

• COVER: Formed metal cover with liner internally stiffened to withstand a live load of 40psf

• CURB: Single wall curb with EZ tab counterflash and mounting flange

• INSULATION: 1" polystyrene in cover and fiberboard around curb

• GASKET: Extruded EPDM adhesive backed gasket seal, continuous around cover

• SPRING/HINGE ASSEMBLY: Zinc plated steel tamper-proof hinges contained within spring assembly, includes steel compression springs

• HOLD OPEN ARM: Zinc plated steel automatic hold open arm locks cover in open position

• LATCH:

  • Zinc plated steel latch with exterior and interior turn handles and padlock hasps
  • 20psf wind uplift for lengths <60" with slam latch
  • 90psf wind uplift for lengths >60" with 2-point rotary latch

• WARRANTY: Five years

• SIZES: Configurable

B Personnel II Life-Safety Roof Hatch (OSHA)

Features

• Gas Spring Operation: Easy open and close – designed for smooth one handed operation to comply with OSHA safety standards.

• Clear Labeling: Color coordinated labels clearly identify safety yellow pull down handle and red hold open arm release.

• Railing Ready: Safety railings install quick and easy with predrilled counterflash. Designed to meet the 43 inch height requirement per OSHA and IBC.

Specifications

• MATERIAL: Aluminum: 11 gauge, mill finish; or Steel: 14 gauge galvanneal, red oxide or high reflectance white powder coat

• COVER: Formed metal cover with liner internally stiffened to withstand a live load of 40psf

• CURB: Single wall curb with EZ tab counterflash and mounting flange with 5/8 inch and 3/16 inch holes

• INSULATION: 1 inch polyiso R-6 (5.6 LTTR) in curb, 1 inch polystyrene in cover

• GASKET: Extruded EPDM adhesive backed gasket seal, continuous around cover

• SPRING: Gas spring with damper for smooth, controlled, counterbalanced lift assistance

• HINGE: Heavy-duty pintle hinge with stainless steel hinge pin

• HOLD OPEN ARM: Zinc plated steel automatic hold open arm locks cover in open position

• LATCH: Zinc plated steel slam latch with exterior and interior turn handles and padlock hasps; 20psf wind uplift

• WARRANTY: Five years

• SIZES: Industry standard sizes for ladder and ship stair access

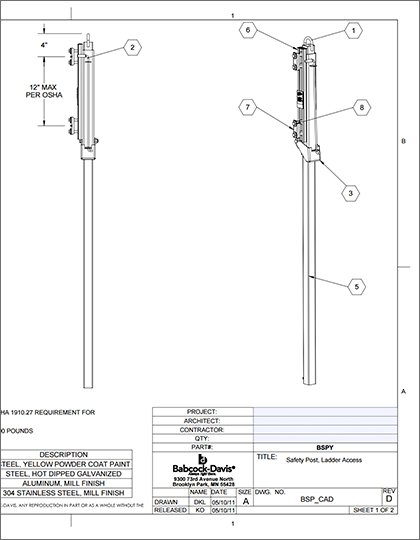

Safety Post

Features

• Telescoping tube posts in Steel, Alumium or Stainless Steel

• Easily lifted to fully extended locked position

• Safety post mounts to top two rungs of fixed vertical ladders

• Enables safe entry or exit through Floor Doors and Roof Hatches

• Ladder Safety Post (BSP):

  • BSPY - Steel, Powder Coat Yellow (Stocking)
  • BSPG - Steel, Hot Dip Galvanized
  • BSPA - Aluminum
  • BSPS - 304 Stainless Steel

Babcock-Davis Commercial Building Products

Babcock-Davis, a trusted name in the commercial construction industry, specializes in providing commercial building products - those specialty items that are not normally of highest priority, but are essential components in any building project.

Architects, specifiers, general contractors and distributors rely on the Babcock-Davis product line for a quality product with hassle-free fulfillment. They provide Roof Hatches, Smoke Vents, Access Doors, Floor Doors, Stair Treads and Nosings, Entrance Flooring Systems and Wallwear.

Penner Doors & Hardware will ensure that Babcock-Davis products meet your needs with full responsibility for the process from beginning to end, ensuring that you get the right product in the right place at the right time.

Babcock-Davis Complementary Building Products - Always Right There
