Stanley Actuators

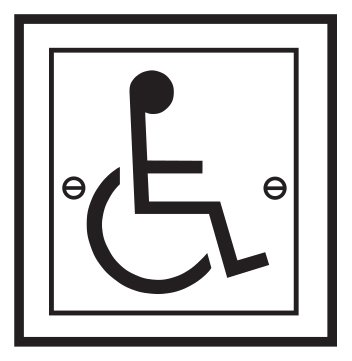

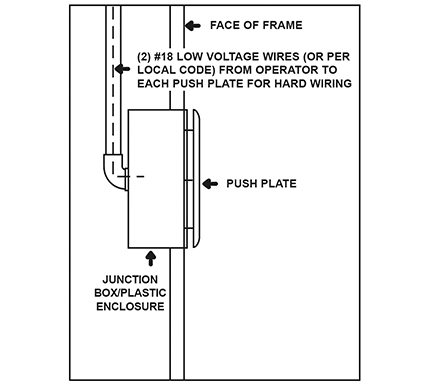

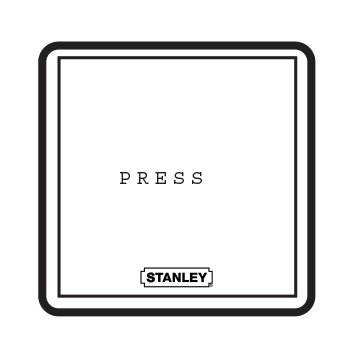

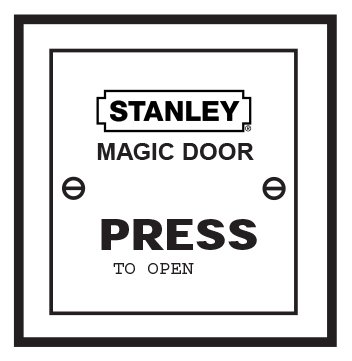

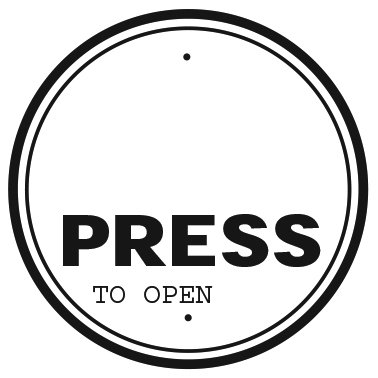

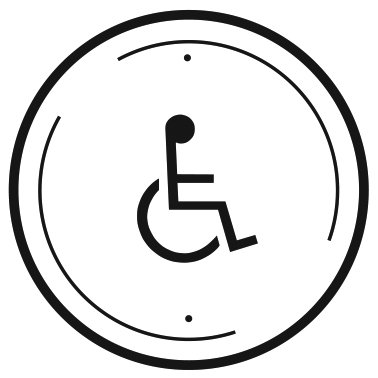

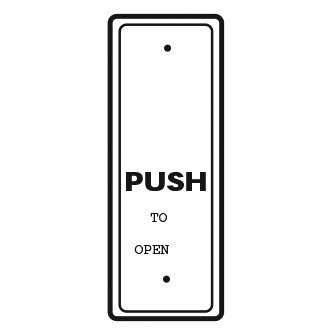

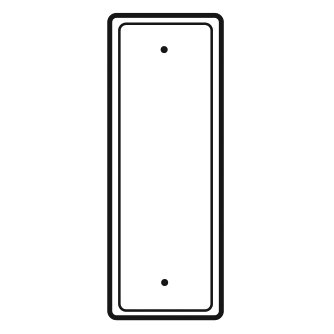

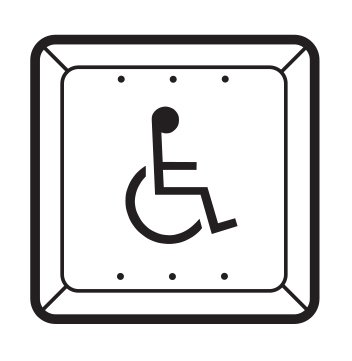

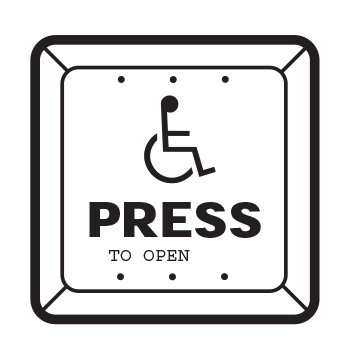

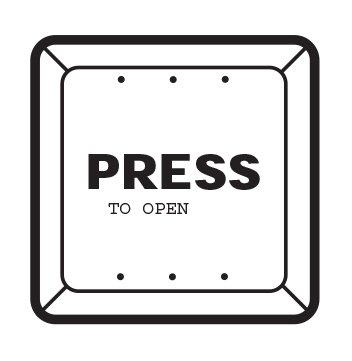

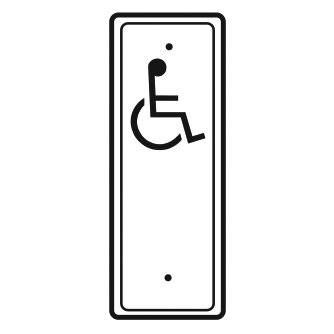

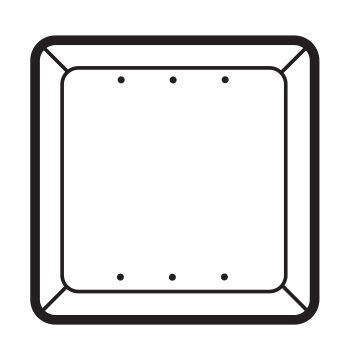

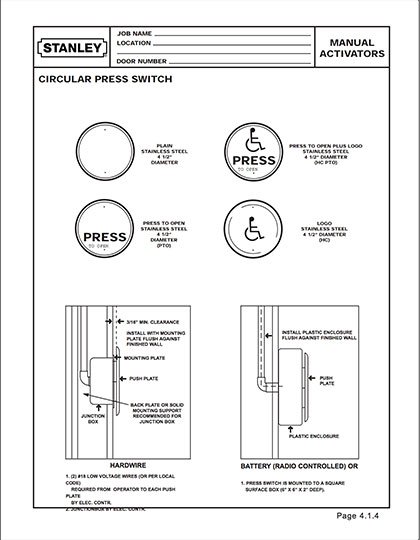

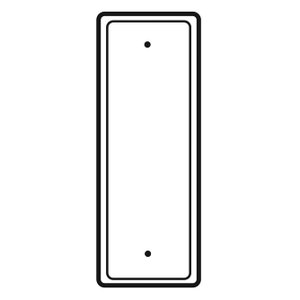

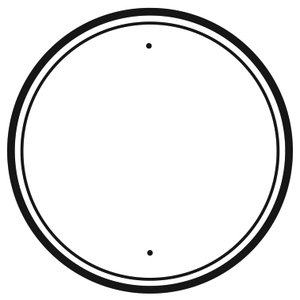

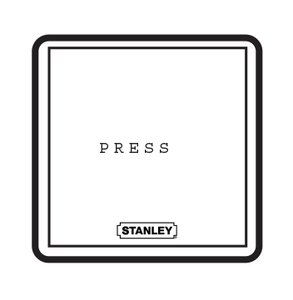

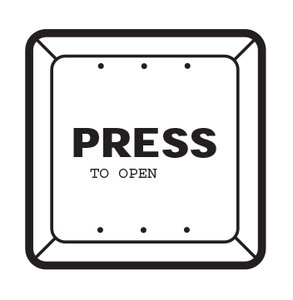

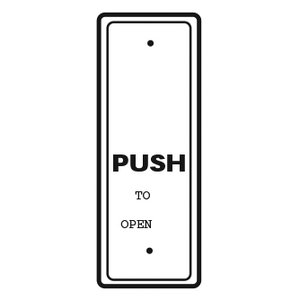

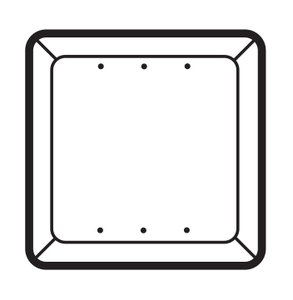

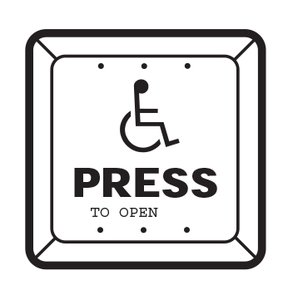

Stanley Magic-Access Operator – Push Plates

• Magic-Touch™ Mode
• Swing-Safe Technology
• Electromechanical Design
• Aesthetics
• Design Flexibility
• Quality Assurance
• Support
• Controls

Features & Benefits:

• Complies with all U.S. and Canadian handicap access laws, including ANSI A117 and A 156.19

• Opens under power and spring close for maximum energy efficiency

• Works with metal, wood or glass doors; hinged, offset or pivot center

• Retrofits conventional doors for a fraction of the cost of a new automatic door

• Features Magic-Touch motion and works with the full spectrum of controls

• Acts as a mechanical closer for manual operation in the event power is shut off

• Reacts immediately to any obstacle, so an opening door will stop at any point in its swing cycle

OPTIONAL FEATURES:

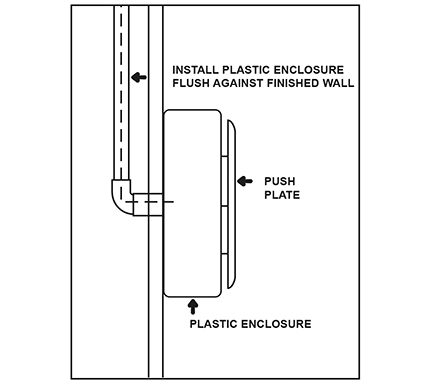

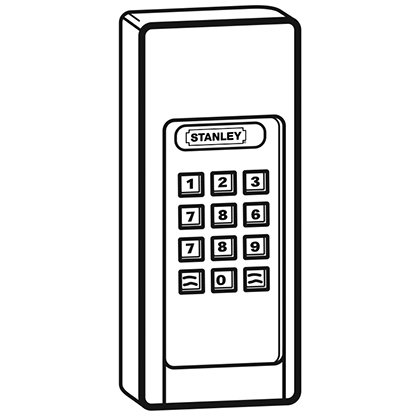

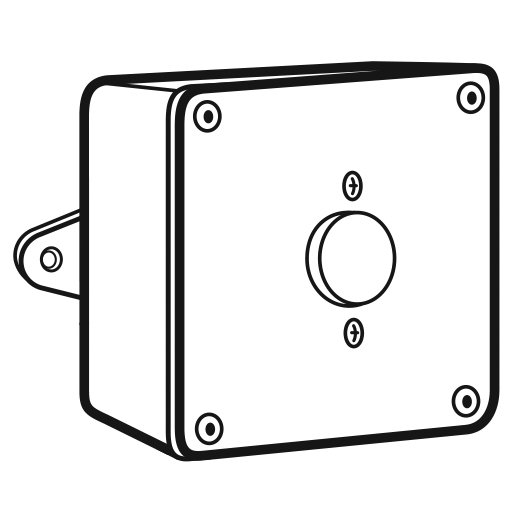

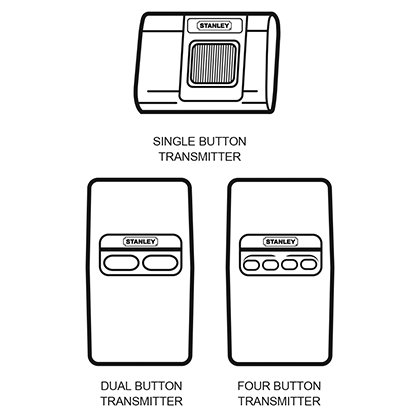

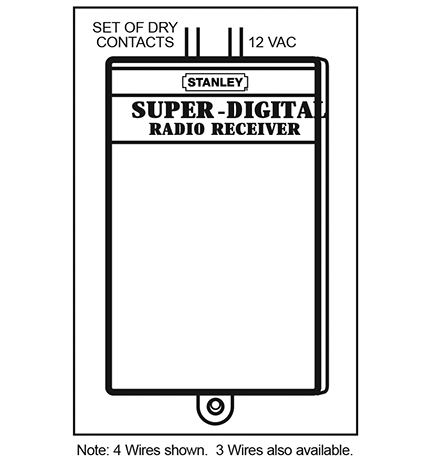

• Wall switch and Radio Control activate doors for added convenience and accessability
• Power Close Module
• Dual Control Box
• Continuous Header

APPLICATIONS:

• Electric Strikes, Electric Panic Hardware
• Latched Doors
• Security Access
• Day/Night Mode Usage
• Delay Time Releases
• Sequencing Doors
• Labeled Doors

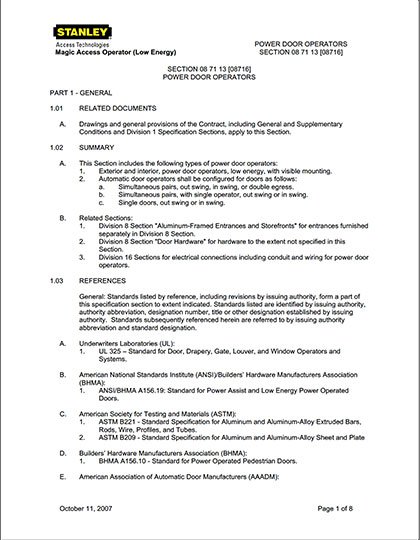

SPECIFICATIONS:

• Header Size: 6” high x 4” deep
• Drive System: Fractional HP DC motor, gear drive, "low-energy"
• Controller: Microprocessor Controller with built-in “reverse on obstruction” and “Magic-Touch” actuator
• Breakout: Breakaway door stop available
• Power Required: 117 V, 60 cycle, single phase, 15 amp
• Code Compliance: UL, cUL, ANSI A156.19


Turn any door into a STANLEY MAGIC-DOOR

INNOVATIVE DESIGN, VERSATILITY & PROVEN PERFORMANCE

The Stanley Magic-Access low energy operator can automate virtually any swing door; new or existing. Engineered to meet the most difficult applications, Magic-Access effortlessly provides a full-range of automatic door functions to an otherwise manual door.

THE MAGIC-ACCESS SYSTEM

The state-of-the-art electromechanical operator works in conjunction with a sophisticated electronic controller and a host of activating devices.

FLEXIBILITY

Stanley offers the industry’s widest variety of controls to meet even the most unique applications. All controls can be easily integrated to building control systems. Control selection should reflect location and mounting conditions.

END RESULT

Quiet, smooth, automatic door control without compromising building traffic flow and aesthetics.


Stanley Access Technologies

Stanley Access Technologies designs, manufactures and markets thousands of automatic door systems worldwide. For more than 65 years, Stanley has set the global standard for smooth, quiet operation, user safety, design flexibility, quality, reliability and ease of installation. Stanley's service force is North America’s largest and most comprehensive network devoted to the installation and maintenance of automatic door systems. Their global resources provide innovation and expertise with worry-free operation.
