LCN 1460 Series

Specifications

• Standard 1460 series closer shipped with regular arm, a slim line plastic cover, and self reaming and tapping screws
• Multiple cover options include; Standard (Slim Line), Full and Designer Series
• Non-sized (1-6) cylinder is adjustable for interior doors to 5’0” and exterior doors to 4’0”
• Closer mounts hinge side, top jamb and parallel arm on either right
  or left swinging doors
• Closer meets ADA requirements
• Standard or optional custom powder coat finish; optional plated finish on Designer Series metal cover, arm and fasteners
• Optional SRI primer for installations in corrosive conditions

Mounting Details

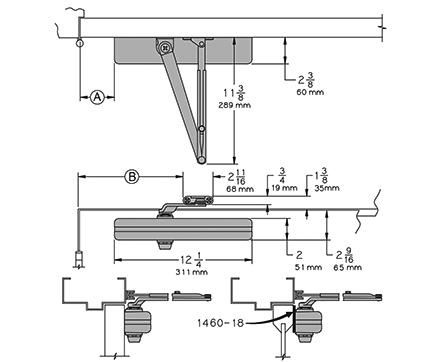

HINGE (PULL) SIDE: Maximum opening to 110°: A = 5-7/8” (149 mm); B =
10-7/8” (276 mm). Maximum opening to 180°: (frame and trim permitting) A = 2-7/8” (73 mm); B = 7-7/8” (200 mm). Hold-open points up to maximum opening with hold-open arm.

• Butt Hinges should not exceed 5” (127 mm) in width.
• Auxiliary Stop is recommended at hold-open point or where a door cannot swing 180°.
• Reveal should not exceed 3/4” (19 mm) for regular arm or 1/2”
  (13 mm) for hold-open arm.
• Top Rail less than 2 1/2” (64 mm) requires PLATE, 1460-18.
• With Full cover, use PLATE, 1460-18FC. Plate requires 1-1/2” (38 mm) minimum. With Designer Series metal cover, use PLATE, 1460-18DS1.
• Clearance of 2-3/8” (60 mm) behind door required for installation.
• Delayed Action Add suffix “DEL” to selected cylinder (eg. 1461 DEL).
• Delays closing from 110° to 65° or 160° to 75° depending on templating.
• Delay time adjustable up to approximately 1 minute.
• Bull Nose Trim requires SOFFIT SHOE, 1460-65.

TOP JAMB (PUSH SIDE):  Maximum opening to 110°: A = 6-3/4” (169 mm);
B = 11-1/4” (286 mm). Maximum opening to 180°: A = 3” (76 mm); B = 7-1/2”
(191 mm). Hold-open points up to maximum opening with hold-open arm.

• Butt Hinges should not exceed 5” (127 mm) in width.
• Auxiliary Stop is recommended at hold-open point or where a door cannot swing 180°.
• Reveal of 2-1/2” (64 mm) allows 180° opening with REGULAR HOLD-OPEN ARM. 3-1/2” (89 mm) allows up to 180° opening with REGULAR ARM or 180° with optional LONG HOLD-OPEN ARM when standard head and tube is replaced with optional LONG HEAD AND TUBE, 1460-78HL . 4-7/8” (124 mm) allows up to 140° with REGULAR ARM or LONG HOLD-OPEN ARM.
• 7” (178 mm) allows up to 140° opening with LONG ARM when standard rod and shoe is replaced with optional LONG ROD AND SHOE, 1460-79LR.
• Top Rail requires 1-7/8" (48 mm) minimum.
• 2-3/4" (70 mm) minimum with closer on PLATE, 1460-18.
• Head Frame less than 1-3/4” (44 mm) requires PLATE, 1460-18.
• For flush ceiling condition with 2” (51 mm) headframe, use PLATE, 1460-18. With Full cover, use PLATE, 1460-18FC.
• Plate requires 1-1/4” (32 mm) minimum. With Designer Series metal cover, use PLATE, 1460-18DS1.
• Delayed Action Add suffix “DEL” to selected cylinder (eg. 1460 DEL).
• Delays closing from 110° to 75° or 180° to 95° depending on templating.
• Delay time adjustable up to approximately 1 minute.

PARALLEL ARM (PUSH SIDE): Optional mounting requires PA SHOE, 1460-62PA for REGULAR or HOLDOPEN arms. Add prefix "P" to closer description (e.g. P1460). P1460 closer includes 1460-201 FIFTH HOLE SPACER to support PA SHOE. Maximum opening regular or hold-open arm can be templated for 100°: A = 4 1/4” (108 mm); B = 9 1/4 (235 mm). Maximum opening to 180°: A = 1 3/4” (44 mm); B = 6 3/4” (171 mm). Hold-open points up to maximum opening with hold-open arm.

1460 REGULAR or HOLD-OPEN MOUNT

• Butt Hinges should not exceed 5” (127 mm) in width.
• Auxiliary Stop is recommended at hold-open point, where a door cannot swing 180°, or where CUSH-N-STOP arm is not used.
• Clearance for 1460-62PA shoe is 4” (102 mm) from door face.
• Top Rail less than 4 3/8” (111 mm) measured from the stop requires PLATE 1460-18PA. With Full cover, use PLATE 1460-18PAFC. Plate requires 1-3/4” (44 mm) minimum. Plate requires 1-1/4” (32 mm) minimum. With Designer Series metal cover, use PLATE 1460-18PADS1.
• Head Frame flush or single rabetted requires PA SHOE ADAPTER 1460-418.
• Stop Width minimum 1” (25 mm).
• Blade Stop clearance, requires 1/2” (13 mm) BLADE STOP SPACER 1460-61.
• Auxiliary Shoe, 1460-62A allows installation of regular arm with overhead holder/stop. Special templating required.
• Delayed Action Add suffix “DEL” to selected cylinder (eg. P1460 DEL). Delays closing from maximum opening to approximately 75°. Delay time adjustable up to approximately 1 minute.

1460 EDA or CUSH-N-STOP: 1460 closers ordered with EDA, CUSH or SPRING CUSH arms include 1460-201 FIFTH HOLE SPACER to support the shoe. Maximum opening EDA template allows 110°. Hold-open point up to maximum opening. CUSH arms can be templated for maximum opening/hold-open point at 85°: A = 2-3/8” (60 mm); B = 9-9/16” (243 mm). Maximum opening to 90°: A = 1-5/8” (41 mm); B = 9-1/16” (230 mm). Maximum opening to 100°: A = 5/8” (16 mm); B = 8-1/16” (205 mm). Spring Cush hold-open points are approximately 5° less than templated stop point.

• Clearance for 1460-62EDA or CUSH shoe is 5-1/2” (140 mm) from
  door face.
• Head Frame flush or rabetted requires CUSH FLUSH PANEL ADAPTER 1460-419.
• EDA or CUSH ARM requires SHOE SUPPORT 1460-30 for fifth screw anchorage where reveal is less than 3-1/16” (78 mm).

LCN Finishes

STANDARD POWDER COATED FINISH: LCN door closers feature the finest, state-of-the-art metal finishing process available. LCN powder coating provides superior protection against the effects of weathering and is an environmentally friendly process. The high quality, chip resistant finish is far superior to any previously offered. Corrosion resistance surpasses 100 hours salt spray testing (four times the industry standard). Non-metallic components also provide the same high resistance to the effects of the elements. All LCN products must be shipped with a finish.

OPTIONAL CUSTOM POWDER COATED FINISHES: LCN offers optional custom powder coat colors to compliment special installations. This provides a custom appearance and all the corrosion resistance of standard powder coated finishes at a nominal additional cost. See Downloads tab for available custom colors.

OPTIONAL PLATED FINISHES: Visible components such as covers, arms, fasteners, and finish plates are plated to match the selected finish. Surface mounted tracks are powder coated to complement the plated finish. Hidden assemblies such as cylinders, tracks, and mounting plates are supplied with a powder coated finish.

SPECIAL RUST INHIBITING (SRI) PROCESS: For installations where a higher level of protection against weathering, or the effects of a potentially corrosive atmosphere is required, LCN offers a special rust inhibiting (SRI) process. Ferrous metal components receive an SRI pretreatment and a powder finish coat in your choice of either an LCN standard color or optional extra charge custom colors. Closers treated with the SRI process exceed the 100 hour protection level available with standard LCN powder coated finishes.
