Garden Patio

Madero garden doors offer three select choices for your new construction or renovation. Single-hinged, double-hinged or garden venting door systems are offered in a variety of sizes to fit your project.

Choose from Madero’s five exclusive brands, pairing fiberglass or steel doors with either wood or composite frame. For more information relating to the brand options, please refer to the ‘Specifications’ tab.

  • Designs
  • Specifications
  • Downloads
  • All
    ×
  • Wood Frame
  • Composite Frame
  • Premium Wood Frame
  • Smooth White Composite
  • Fir Woodgrain Textured Composite
  • Mahogany Woodgrain Textured Composite
  • Oak Woodgrain Textured Composite
  • All
    ×
  • Neulite Flush Glazed
  • Traditional Insert
  • All
    ×
  • 1/6 (18")
  • 2/0 (24")
  • 2/4 (28")
  • 2/6 (30")
  • 2/8 (32")
  • 2/10 (34")
  • 3/0 (36")
  • 3/6 (42")
  • 4/0 (48")
  • 5/0 (60")
  • 6/0 (72")
  • All
    ×
  • 6/8 (80")
  • 7/0 (84")
  • 8/0 (96")
  • Custom
  • All
    ×
  • Clear Low-E - Dual or Triple
  • Mini Blinds
  • Prairie Style Grille, 9 Lite 6/8
  • Standard Grille, 10 Lite 6/8
  • White Grille, 15 Lite 6/8
  • Prairie Style Grille, 9 Lite 8/0
  • Standard Grille, 12 Lite 8/0
  • White Grille, 18 Lite 8/0
  • Black Grille, 15 Lite 6/8
  • Black Grille, 18 Lite 8/0

Single Hinged





Close

Single Hinged

Ideal for accommodating multiple doors, creating a spectacular view. One door is fixed while the other door opens as an active door. Fixed doors create the illusion of a full lite sidelite, allowing additional sunlight in to fill your room and provide a full view of the outdoors.

Select your configuration; inswing or outswing, left or right handed. Additional fixed panels can be added. Optional 14" transom available. Contact your sales representative for details.

Locking hardware sold separately.

Door Options High Definition Steel, Smooth White Fiberglass, Oak Woodgrain Textured Fiberglass
Frame Premium Wood Frame, Smooth White Composite, Oak Woodgrain Textured Composite
Width 2/6 (30"), 2/8 (32"), 2/10 (34"), 3/0 (36")
Height 6/8 (80"), 8/0 (96")
Garden Patio Glass Style Click swatch to change preview Neulite Flush Glazed Traditional Insert
Garden Patio Transom Click swatch to change preview Clear Low-E

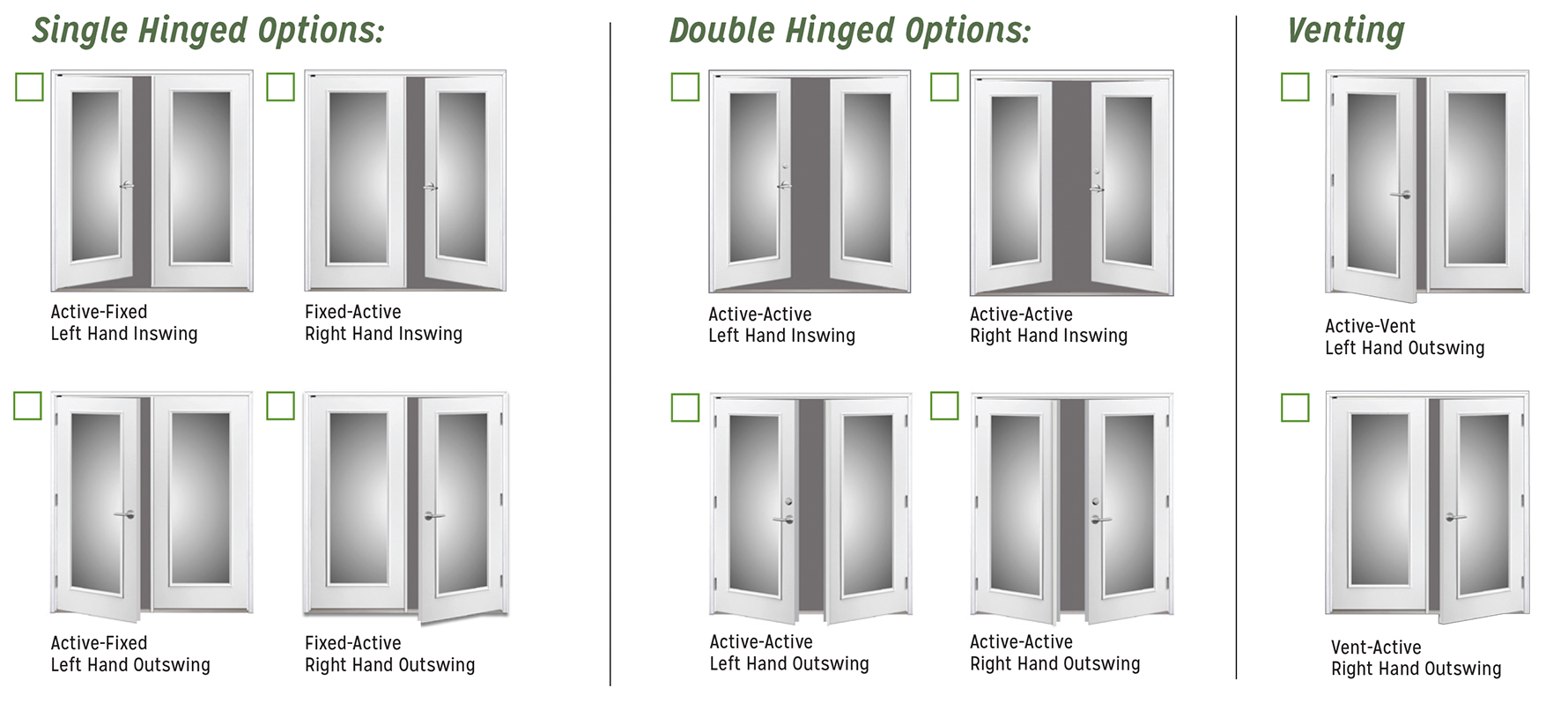

Garden Patio Inswing Configurations Click swatch to change preview GP LH IN AF GP RH IN FA
Garden Patio Outswing Configurations Click swatch to change preview GP LO AF GP RO FA

Double Hinged





Close

Double Hinged

Full clearance double door system provides the beauty of a garden patio door with full access to the outdoors.

Complete with multipoint astragal, this product allows the inactive door to be securely locked and sealed or active as required. Active door must be double drilled.

Select your configuration; inswing or outswing, left or right handed. Steel or smooth white fiberglass systems will have a white astragal, textured woodgrain will have a bronze astragal. Optional 14" height transom available.

Door Options High Definition Steel, Smooth White Fiberglass, Oak Woodgrain Textured Fiberglass
Frame Premium Wood Frame, Smooth White Composite, Oak Woodgrain Textured Composite
Width 2/6 (30"), 2/8 (32"), 2/10 (34"), 3/0 (36")
Height 6/8 (80"), 8/0 (96")
Garden Patio Glass Style Click swatch to change preview Neulite Flush Glazed Traditional Insert
Garden Patio Transom Click swatch to change preview Clear Low-E
Garden Patio Inswing Configurations Click swatch to change preview GP LHIN AA GP RHIN AA
Garden Patio Outswing Configurations Click swatch to change preview GP LO AA GP RO AA

Garden Venting





Close

Garden Venting

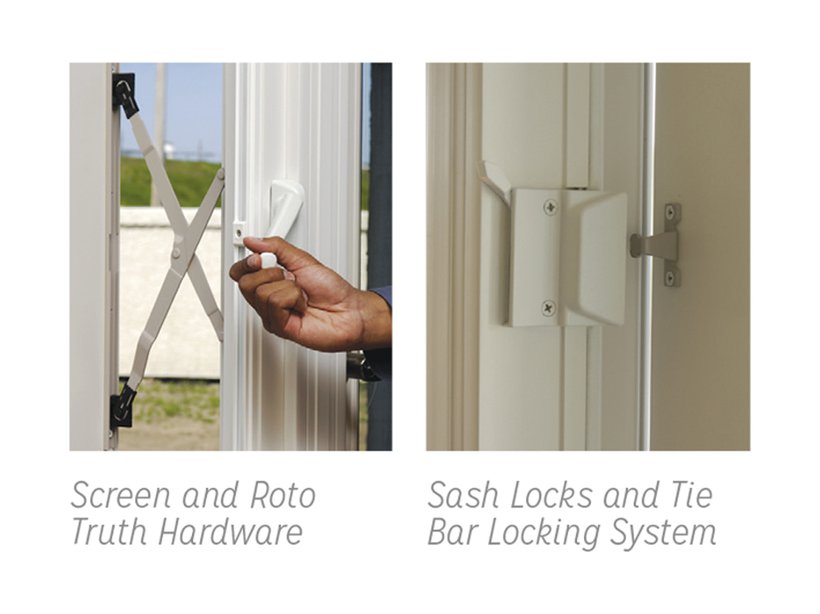

Designed to provide easy access to outdoor living spaces, as well as ventilation and natural light. Garden venting doors feature the active door as a typical swing door (outswing only) with optional sash lock. Product comes complete with standard screen, roto hardware, and sash locks with tie bar.

Select left or right handed configuration and specify single or double drill. Optional 14" transom available. Steel and smooth white fiberglass default hardware is white (unless specified), textured woodgrain default hardware is bronze (unless specified).

Locking hardware sold separately.

Door Options High Definition Steel, Smooth White Fiberglass, Oak Woodgrain Textured Fiberglass
Frame Premium Wood Frame, Smooth White Composite, Oak Woodgrain Textured Composite
Width 2/6 (30"), 2/8 (32"), 2/10 (34"), 3/0 (36")
Height 6/8 (80")
Garden Patio Glass Style Click swatch to change preview Neulite Flush Glazed Traditional Insert
Garden Patio Transom Click swatch to change preview Clear Low-E
Garden Patio Outswing Configurations Click swatch to change preview GP LO ACT-VENT GP RO VENT-ACT
