Sargent 590 Series

Sargent 590 Series Specifications

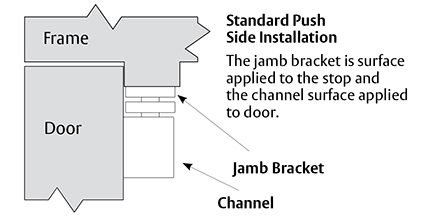

• Surface application for exterior and interior single acting doors.
• Two types to choose from: “H” Holder – stops and holds doors open; “S” Stop – stops door only.
• All holders/stops are installed for a particular degree of hold-open or stop ranging from 85° to 110°.

ANSI A156.8 Grade 1

• 590H Series BHMA Certified to CO2511
• 590S Series BHMA Certified to CO2541

UL Classified

SARGENT 590 Series stops are UL10B&10C classified by Underwriter Laboratories as Miscellaneous Fire Door Accessories.
Note: Door stops are not fire rated. The door and frame carry the fire rating.

Accessories

Shims:

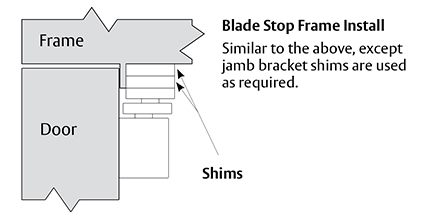

• Optional 1/4" thick jamb bracket shims for use with frames with blade stops
• Order as required by 21-0104 x finish with screws listed below

Machine Screws:

• Used with above 590 shims up to 3/4" thick. 01-3454 x finish, 4 required (1/4-20 x 1-1/4")
• Standard screw pack for 1-3/4" to 2" door. 21-2302 x finish
• When using vertical rod exit devices and/or surface/flush bolts, use caution in choosing the proper size to ensure compatibility.

Hold-Open Models:

• Convenient knob provides simple “on-off” control of hold-open feature
• Adjustable release tension

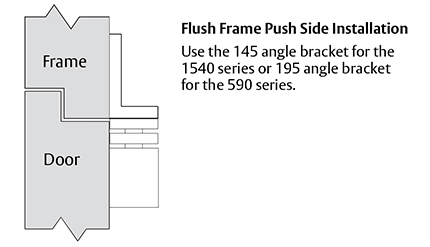

No. 195 Angle Bracket

For Flush Door and Frames:

• 590 Series holders can be mounted on flush door and frame assemblies through the use of the Sargent 195 Angle Bracket.
• This handed bracket allows the mounting of the jamb bracket to the top casing.

For Doors:

• Exterior and interior doors from 24" to 60" wide* and for doors 1-3/4" to 2" thick standard
• Available for doors up to 3-1/4" thick, use 31- option and specify thickness

Finishes:

• 03, 04, 9, 10, 10B, 10BL, 15, 20D, 26, 26D Plated
• EN, EB, ED, EP, EAB Powder Coat

Fasteners:

• Wood screws, machine screws, through-bolts, Mortise nuts supplied as standard for 1-3/4"– 2" thick doors
• For doors more than 2" and less than 3-1/4", use 31- option and specify thickness

Options:

• 31-     Doors 2-1/4" to 3-1/4" thick, specify door thickness
• 36-     Torx security machine screws, for exposed screws
             on doors up to 2" thick; 6 screws per holder/stop
• CPC-  Clear Powder Coat
• SG-    MicroShield® – antimicrobial silver-based finish

* When using vertical rod exit devices and/or surface/flush bolts, use caution in choosing the proper size to ensure compatibility.
