Traditional Collection

These are cast pulls and thick metal push plates – traditional style pulls and plates,
but made to commercial quality standards.

Heavy gauge material and high quality castings in brass are the basis for this group.

Choose from a variety of architectural finishes.

Designs
Specifications
Finishes
Downloads

RM5500 - cast pull

No base plate

6" CTC

2-1/2" projection

RM5502 - cast pull

Base plate included

6-7/8" CTC

2-7/8" projection

RM5510 - cast pull

No base plate

12" CTC

2-1/2" projection

RM5512 - cast pull

Base plate included

12-7/8" CTC

2-7/8" projection

RM5520 - cast pull

No base plate

8" CTC

2-1/4" projection

RM5522 - cast pull

Base plate included

8" CTC

2-5/8" projection

RM5530 - cast pull

No base plate

5-1/2" CTC

1-7/8" projection

RM5532 - cast pull

No base plate

7-1/2" CTC

1-7/8" projection

RM5534 - cast pull

No base plate

12" CTC

1-7/8" projection

RM5590A - heavy plate

3" x 12"

.090 material

#6 x 5/8 OH SMS

RM5590B - heavy plate

3-1/2" x 15"

.090 material

#6 x 5/8 OH SMS

RM5590C - heavy plate

4" x 16"

.090 material

#6 x 5/8 OH SMS

RM5592A - heavy plate

3" x 12"

.090 material

#6 x 5/8 OH SMS

RM5592B - heavy plate

3-1/2" x 15"

.090 material

#6 x 5/8 OH SMS

RM5592C - heavy plate

4" x 16"

.090 material

#6 x 5/8 OH SMS

RM5594B - heavy plate

3-1/2" x 15"

5/16" material

5/16" projection

RM5596A - heavy plate

3" x 12"

Rope border

11/32" projection

RM5596B - heavy plate

3-1/2" x 15"

Rope border

11/32" projection

RM5598B - heavy plate

3-1/2" x 15"

5/16" material

5/16" projection

Traditional Collection Specifications

Most of Rockwood's products are available in a wide variety of architectural finishes. The photographs generally show only one finish for aesthetic reasons, but all traditional architectural finishes are available. The base metal for the Traditional Collection is brass.

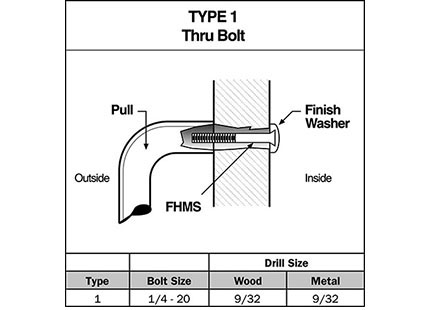

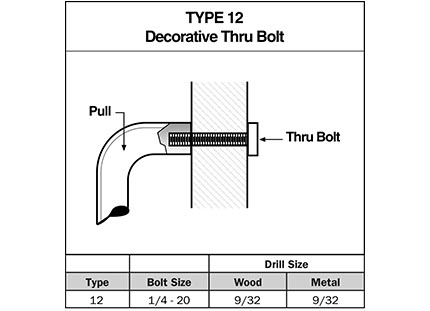

Rockwood Door Pulls – Mounting Types

Rockwood mounting systems firmly attach the pull to the door and are guaranteed for the life of the door. Choose from thrubolt, back-to-back or concealed mountings for wood, metal and glass doors.

Please note the following:

Y base plates are recommended on wood or glass doors to make a stable and durable mounting.
Heavy Duty (HD) mounting features hex drive for positive tightening and large overall size for superior strength. (Recommended for high frequency and rough service openings.)

Cast Pulls

RM5500 Specifications:

Base Metal: Brass
Length: 6" CTC (center-to-center measurement between mounts)
Projection: 2-1/2"
No base plate
Finishes: US3LIFETIME; US26D / BHMA 626; US26 / BHMA 625; US15A / BHMA 620; US15 / BHMA 619; US10B / BHMA 613; US10 / BHMA 612; US4 / BHMA 606; US3 / BHMA 605

RM5502 Specifications:

Base Metal: Brass
Length: 6-7/8" CTC (center-to-center measurement between mounts)
Projection: 2-7/8"
Base plate included
Finishes: US3LIFETIME; US26D / BHMA 626; US26 / BHMA 625; US15A / BHMA 620; US15 / BHMA 619; US10B / BHMA 613; US10 / BHMA 612; US4 / BHMA 606; US3 / BHMA 605

RM5510 Specifications:

Base Metal: Brass
Length: 12" CTC (center-to-center measurement between mounts)
Projection: 2-1/2"
No base plate
Finishes: US3LIFETIME; US26D / BHMA 626; US26 / BHMA 625; US15A / BHMA 620; US15 / BHMA 619; US10B / BHMA 613; US10 / BHMA 612; US4 / BHMA 606; US3 / BHMA 605

RM5512 Specifications:

Base Metal: Brass
Length: 12-7/8" CTC (center-to-center measurement between mounts)
Projection: 2-7/8"
Base plate included
Finishes: US3LIFETIME; US26D / BHMA 626; US26 / BHMA 625; US15A / BHMA 620; US15 / BHMA 619; US10B / BHMA 613; US10 / BHMA 612; US4 / BHMA 606; US3 / BHMA 605

RM5520 Specifications:

Base Metal: Brass
Length: 6" CTC (center-to-center measurement between mounts)
Projection: 2-1/2"
No base plate
Finishes: US3LIFETIME; US26D / BHMA 626; US26 / BHMA 625; US15A / BHMA 620; US15 / BHMA 619; US10B / BHMA 613; US10 / BHMA 612; US4 / BHMA 606; US3 / BHMA 605

RM5522 Specifications:

Base Metal: Brass
Length: 8" CTC (center-to-center measurement between mounts)
Projection: 2-5/8"
Base plate included
Finishes: US3LIFETIME; US26D / BHMA 626; US26 / BHMA 625; US15A / BHMA 620; US15 / BHMA 619; US10B / BHMA 613; US10 / BHMA 612; US4 / BHMA 606; US3 / BHMA 605

RM5530 Specifications:

Base Metal: Brass
Length: 5-1/2" CTC (center-to-center measurement between mounts)
Projection: 1-7/8"
No base plate
Finishes: US3LIFETIME; US26D / BHMA 626; US26 / BHMA 625; US15A / BHMA 620; US15 / BHMA 619; US10B / BHMA 613; US10 / BHMA 612; US4 / BHMA 606; US3 / BHMA 605

RM5532 Specifications:

Base Metal: Brass
Length: 7-1/2" CTC (center-to-center measurement between mounts)
Projection: 1-7/8"
No base plate
Finishes: US26D / BHMA 626; US26 / BHMA 625; US15A / BHMA 620; US15 / BHMA 619; US10B / BHMA 613; US10 / BHMA 612; US4 / BHMA 606; US3 / BHMA 605

RM5534 Specifications:

Base Metal: Brass
Length: 12" CTC (center-to-center measurement between mounts)
Projection: 1-7/8"
No base plate
Finishes: US26D / BHMA 626; US26 / BHMA 625; US15A / BHMA 620; US15 / BHMA 619; US10B / BHMA 613; US10 / BHMA 612; US4 / BHMA 606; US3 / BHMA 605

Heavy Cast Plates

RM5590A Specifications:

Base Metal: Brass
Size: 3" x 12"
Material: .090
Fastener: #6 x 5/8 OH SMS
Finishes: US26D / BHMA 626; US26 / BHMA 625; US15A / BHMA 620; US15 / BHMA 619; US10B / BHMA 613; US10 / BHMA 612; US4 / BHMA 606; US3 / BHMA 605

RM5590B Specifications:

Base Metal: Brass
Size: 3-1/2" x 15"
Material: .090
Fastener: #6 x 5/8 OH SMS
Finishes: US26D / BHMA 626; US26 / BHMA 625; US15A / BHMA 620; US15 / BHMA 619; US10B / BHMA 613; US10 / BHMA 612; US4 / BHMA 606; US3 / BHMA 605

RM5590C Specifications:

Base Metal: Brass
Size: 4" x 16"
Material: .090
Fastener: #6 x 5/8 OH SMS
Finishes: US26D / BHMA 626; US26 / BHMA 625; US15A / BHMA 620; US15 / BHMA 619; US10B / BHMA 613; US10 / BHMA 612; US4 / BHMA 606; US3 / BHMA 605

RM5592A Specifications:

Base Metal: Brass
Size: 3" x 12"
Material: .090
Fastener: #6 x 5/8 OH SMS
Finishes: US26D / BHMA 626; US26 / BHMA 625; US15A / BHMA 620; US15 / BHMA 619; US10B / BHMA 613; US10 / BHMA 612; US4 / BHMA 606; US3 / BHMA 605

RM5592B Specifications:

Base Metal: Brass
Size: 3-1/2" x 15"
Material: .090
Fastener: #6 x 5/8 OH SMS
Finishes: US26D / BHMA 626; US26 / BHMA 625; US15A / BHMA 620; US15 / BHMA 619; US10B / BHMA 613; US10 / BHMA 612; US4 / BHMA 606; US3 / BHMA 605

RM5592C Specifications:

Base Metal: Brass
Size: 4" x 16"
Material: .090
Fastener: #6 x 5/8 OH SMS
Finishes: US26D / BHMA 626; US26 / BHMA 625; US15A / BHMA 620; US15 / BHMA 619; US10B / BHMA 613; US10 / BHMA 612; US4 / BHMA 606; US3 / BHMA 605

RM5594B Specifications:

Base Metal: Brass
Size: 3-1/2" x 15"
Material: .090
Fastener: #6 x 5/8 OH SMS
Finishes: US26D / BHMA 626; US26 / BHMA 625; US15A / BHMA 620; US15 / BHMA 619; US10B / BHMA 613; US10 / BHMA 612; US4 / BHMA 606; US3 / BHMA 605

RM5596A Specifications:

Base Metal: Brass
Size: 3" x 12"
Projection: 11/32" (rope border)
Finishes: US26D / BHMA 626; US26 / BHMA 625; US15A / BHMA 620; US15 / BHMA 619; US10B / BHMA 613; US10 / BHMA 612; US4 / BHMA 606; US3 / BHMA 605

RM5596B Specifications:

Base Metal: Brass
Size: 3-1/2" x 15"
Projection: 11/32" (rope border)
Finishes: US26D / BHMA 626; US26 / BHMA 625; US15A / BHMA 620; US15 / BHMA 619; US10B / BHMA 613; US10 / BHMA 612; US4 / BHMA 606; US3 / BHMA 605

RM5598B Specifications:

Base Metal: Brass
Size: 3-1/2" x 15"
Material: 5/16" thick
Projection: 5/16" (plain)
Finishes: US26D / BHMA 626; US26 / BHMA 625; US15A / BHMA 620; US15 / BHMA 619; US10B / BHMA 613; US10 / BHMA 612; US4 / BHMA 606; US3 / BHMA 605

General Warranty: Rockwood Manufacturing Company warrants that its products when properly delivered, installed and maintained, under normal use and service conditions, will be free from defects in material and workmanship for a period of one year from the date of delivery. Because of variations in atmospheric and climatic conditions, Rockwood does not warrant that its products will maintain a “like new” appearance for any length of time, so this warranty does not extend to the appearance of Rockwood’s products. Rockwood shall have no responsibility other than the repair or replacement of defective products.
