Standards Collection

Rockwood one-inch diameter solid
push and pulls are the industry standard
for contemporary design – providing quality and value in this product category.

These offset pulls come with a 2-1/2" clearance for enhanced ADA compliance.

Use two or three push bars on a door as
an attractive design element and increased usability for people of all heights.

Designs
Specifications
Finishes
Options
Downloads

SP47 - push bar

1" diameter; 1" base

Specify CTC

2-1/2" single projection

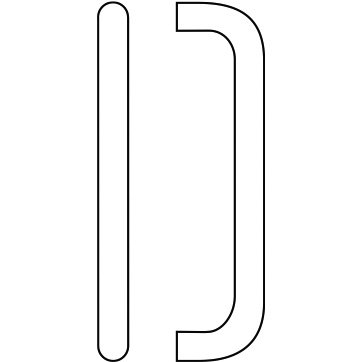

110 - straight pull

1" diameter; 1" base

8" CTC; 9" overall

3" projection; 2" clearance

111 - straight pull

1" diameter; 1" base

10" CTC; 11" overall

3" projection; 2" clearance

111A - straight pull

1" diameter; 1" base

9" CTC; 10" overall

3" projection; 2" clearance

112 - straight pull

1" diameter; 1" base

12" CTC; 13" overall

3" projection; 2" clearance

118 - straight pull

1" diameter; 1" base

18" CTC; 19" overall

3" projection; 2" clearance

166 - 45˚ offset pull

1" diameter; 1" base

8" CTC; 9" overall

3-1/2" projection

167 - 45˚ offset pull

1" diameter; 1" base

10" CTC; 11" overall

3-1/2" projection

167A - 45˚ offset pull

1" diameter; 1" base

9" CTC; 10" overall

3-1/2" projection

168 - 45˚ offset pull

1" diameter; 1" base

12" CTC; 13" overall

3-1/2" projection

169 - 45˚ offset pull

1" diameter; 1" base

18" CTC; 19" overall

3-1/2" projection

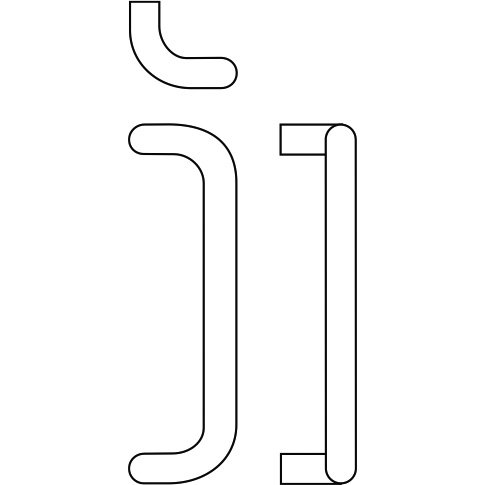

BF156 - 90˚ offset pull

1" diameter; 1" base

8" CTC; 9" overall

3-1/2" projection

BF157 - 90˚ offset pull

1" diameter; 1" base

10" CTC; 11" overall

3-1/2" projection

BF157A - 90˚ offset pull

1" diameter; 1" base

9" CTC; 10" overall

3-1/2" projection

BF158 - 90˚ offset pull

1" diameter; 1" base

12" CTC; 13" overall

3-1/2" projection

BF159 - 90˚ offset pull

1" diameter; 1" base

18" CTC; 19" overall

3-1/2" projection

11047 - straight push-pull

1" diameter

Specify push CTC; 8" pull CTC

Push 2-1/2", pull 3" projection

11147 - straight push-pull

1" diameter

Specify push CTC; 10" pull CTC

Push 2-1/2", pull 3" projection

111A47 - straight push-pull

1" diameter

Specify push CTC; 9" pull CTC

Push 2-1/2", pull 3" projection

11247 - straight push-pull

1" diameter

Specify push CTC; 12" pull CTC

Push 2-1/2", pull 3" projection

BF15647 - offset push-pull

1" diameter

Specify push CTC; 9" pull CTC

Push 2-1/2", pull 3-1/2" projection

BF15747 - offset push-pull

1" diameter

Specify push CTC; 10" pull CTC

Push 2-1/2", pull 3-1/2" projection

BF157A47 - offset push-pull

1" diameter

Specify push CTC; 9" pull CTC

Push 2-1/2", pull 3-1/2" projection

BF15847 - offset push-pull

1" diameter

Specify push CTC; 12" pull CTC

Push 2-1/2", pull 3-1/2" projection

47 - push bar

1" diameter; 1" base

Specify CTC

2-1/2" projection

47-2 - push bar

1" diameter; 1" base

Specify CTC

2-1/2" projection

47-3 - push bar

1" diameter; 1" base

Specify CTC

2-1/2" projection

BP47 - push bar

1" diameter; 1-1/4" base

Specify CTC

2-5/8" projection

BP47-2 - push bar

1" diameter; 2x6 base

Specify CTC

2-5/8" projection

BP47-3 - push bar

1" diameter; 2x10 base

Specify CTC

2-5/8" projection

Standards Collection Specifications

Most of Rockwood's products are available in a wide variety of architectural finishes. The photographs generally show only one finish for aesthetic reasons, but all traditional architectural finishes are available. The base metal options for the Standards Collection are aluminum, stainless steel, brass or bronze.

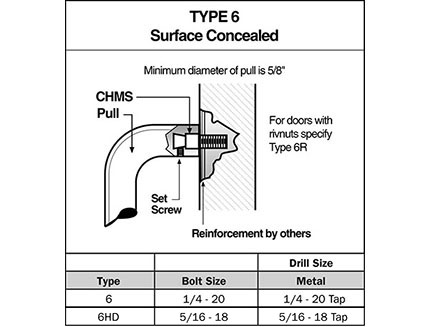

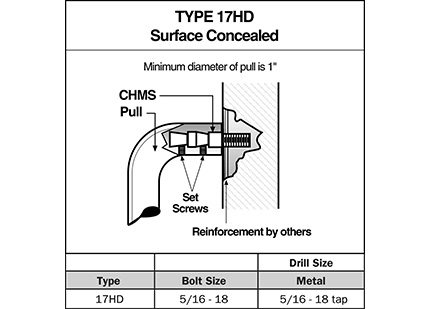

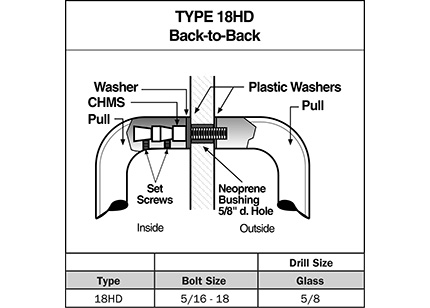

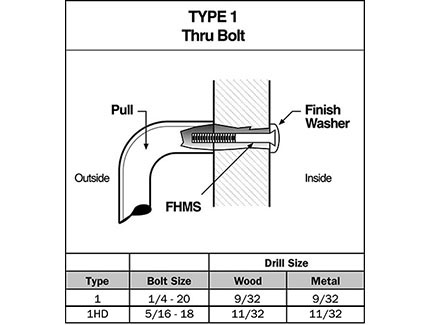

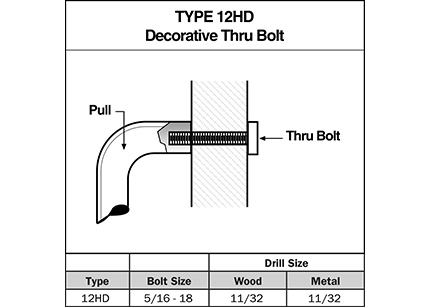

Rockwood Door Pulls – Mounting Types

Rockwood mounting systems firmly attach the pull to the door and are guaranteed for the life of the door. Choose from thrubolt, back-to-back or concealed mountings for wood, metal and glass doors.

Please note the following:

Y base plates are recommended on wood or glass doors to make a stable and durable mounting.
Heavy Duty (HD) mounting features hex drive for positive tightening and large overall size for superior strength. (Recommended for high frequency and rough service openings.)
Advise if door thickness is other than 1-3/4".

Ordering:

Specify product number, mounting, door type, push bar CTC, and finish (i.e., BF15847 T3, wood door, 33" CTC, US32D316).

Options:

Engraving – "PUSH" or "PULL" (specify handing).
Base plates available – use BP prefix (BPBF15847) when ordering.
Heavy duty versions of most fastening types available – use suffix HD to fastening type number (BF15847 T3HD).

Available Finishes:

Rockwood White Powder Coat / WPC; Red Powder Coat / RPC;
Black Powder Coat / BPC
SS Satin 316 Alloy / US32D316; SS Polished 316 Alloy / US32316
US32D / BHMA 630; US32 / BHMA 629; US28 / BHMA 628; US26D / BHMA 626; US26 / BHMA 625; US10B / BHMA 613; US10 / BHMA 612; US4 / BHMA 606; US3 / BHMA 605; 315 / BHMA 711; 313 / BHMA 710

Straight Pull

110 Specifications:

Base Metal: Aluminum, Stainless Steel, Brass, Bronze
Diameter: 1"
Base: 1"
Length: 8" CTC (center-to-center measurement between mounts)
Projection: 3"

111 Specifications:

Base Metal: Aluminum, Stainless Steel, Brass, Bronze
Diameter: 1"
Base: 1"
Length: 10" CTC (center-to-center measurement between mounts)
Projection: 3"

111A Specifications:

Base Metal: Aluminum, Stainless Steel, Brass, Bronze
Diameter: 1"
Base: 1"
Length: 9" CTC (center-to-center measurement between mounts)
Projection: 3"

112 Specifications:

Base Metal: Aluminum, Stainless Steel, Brass, Bronze
Diameter: 1"
Base: 1"
Length: 12" CTC (center-to-center measurement between mounts)
Projection: 3"

118 Specifications:

Base Metal: Aluminum, Stainless Steel, Brass, Bronze
Diameter: 1"
Base: 1"
Length: 18" CTC (center-to-center measurement between mounts)
Projection: 3"

45-Degree Offset Pull (2-3/4" offset)

166 Specifications:

Base Metal: Aluminum, Stainless Steel, Brass, Bronze
Diameter: 1"
Base: 1"
Length: 8" CTC (center-to-center measurement between mounts)
Projection: 3-1/2"

167 Specifications:

Base Metal: Aluminum, Stainless Steel, Brass, Bronze
Diameter: 1"
Base: 1"
Length: 10" CTC (center-to-center measurement between mounts)
Projection: 3-1/2"

167A Specifications:

Base Metal: Aluminum, Stainless Steel, Brass, Bronze
Diameter: 1"
Base: 1"
Length: 9" CTC (center-to-center measurement between mounts)
Projection: 3-1/2"

168 Specifications:

Base Metal: Aluminum, Stainless Steel, Brass, Bronze
Diameter: 1"
Base: 1"
Length: 12" CTC (center-to-center measurement between mounts)
Projection: 3-1/2"

169 Specifications:

Base Metal: Aluminum, Stainless Steel, Brass, Bronze
Diameter: 1"
Base: 1"
Length: 18" CTC (center-to-center measurement between mounts)
Projection: 3-1/2"

90-Degree Offset Pull (4" offset)

BF156 Specifications:

Base Metal: Aluminum, Stainless Steel, Brass, Bronze
Diameter: 1"
Base: 1"
Length: 8" CTC (center-to-center measurement between mounts)
Projection: 3-1/2"

BF157 Specifications:

Base Metal: Aluminum, Stainless Steel, Brass, Bronze
Diameter: 1"
Base: 1"
Length: 10" CTC (center-to-center measurement between mounts)
Projection: 3-1/2"

BF157A Specifications:

Base Metal: Aluminum, Stainless Steel, Brass, Bronze
Diameter: 1"
Base: 1"
Length: 9" CTC (center-to-center measurement between mounts)
Projection: 3-1/2"

BF158 Specifications:

Base Metal: Aluminum, Stainless Steel, Brass, Bronze
Diameter: 1"
Base: 1"
Length: 12" CTC (center-to-center measurement between mounts)
Projection: 3-1/2"

BF159 Specifications:

Base Metal: Aluminum, Stainless Steel, Brass, Bronze
Diameter: 1"
Base: 1"
Length: 18" CTC (center-to-center measurement between mounts)
Projection: 3-1/2"

Straight Push-Pull Set

11047 Specifications:

Base Metal: Aluminum, Stainless Steel, Brass, Bronze
Diameter: 1"
Lengths: Specify push CTC; 8" pull CTC (center-to-center measurement between mounts)
Projection: push 2-1/2"; pull 3"

11147 Specifications:

Base Metal: Aluminum, Stainless Steel, Brass, Bronze
Diameter: 1"
Lengths: Specify push CTC; 10" pull CTC (center-to-center measurement between mounts)
Projection: push 2-1/2"; pull 3"

111A47 Specifications:

Base Metal: Aluminum, Stainless Steel, Brass, Bronze
Diameter: 1"
Lengths: Specify push CTC; 9" pull CTC (center-to-center measurement between mounts)
Projection: push 2-1/2"; pull 3"

11247 Specifications:

Base Metal: Aluminum, Stainless Steel, Brass, Bronze
Diameter: 1"
Lengths: Specify push CTC; 12" pull CTC (center-to-center measurement between mounts)
Projection: push 2-1/2"; pull 3"

Offset Push-Pull Set

BF15647 Specifications:

Base Metal: Aluminum, Stainless Steel, Brass, Bronze
Diameter: 1"
Lengths: Specify push CTC; 8" pull CTC (center-to-center measurement between mounts)
Projection: push 2-1/2"; pull 3-1/2"

BF15747 Specifications:

Base Metal: Aluminum, Stainless Steel, Brass, Bronze
Diameter: 1"
Lengths: Specify push CTC; 10" pull CTC (center-to-center measurement between mounts)
Projection: push 2-1/2"; pull 3-1/2"

BF157A47 Specifications:

Base Metal: Aluminum, Stainless Steel, Brass, Bronze
Diameter: 1"
Lengths: Specify push CTC; 9" pull CTC (center-to-center measurement between mounts)
Projection: push 2-1/2"; pull 3-1/2"

BF15847 Specifications:

Base Metal: Aluminum, Stainless Steel, Brass, Bronze
Diameter: 1"
Lengths: Specify push CTC; 12" pull CTC (center-to-center measurement between mounts)
Projection: push 2-1/2"; pull 3-1/2"

Push Bar

47 Specifications:

Base Metal: Aluminum, Stainless Steel, Brass, Bronze
Diameter: 1"
Base: 1"
Length: Specify CTC (center-to-center measurement between mounts)
Projection: 2-1/2"
Multi-bar: -2 suffix for two bar set; -3 suffix for three bar set

BP47 Specifications:

Base Metal: Aluminum, Stainless Steel, Brass, Bronze
Diameter: 1"
Base: 1-1/4"
Length: Specify CTC (center-to-center measurement between mounts)
Projection: 2-5/8"
Multi-bar: -2 suffix for two bar set; -3 suffix for three bar set

Single Projection Push Bar

SP47 Specifications:

Base Metal: Aluminum, Stainless Steel, Brass, Bronze
Diameter: 1"
Base: 1"
Length: Specify CTC (center-to-center measurement between mounts)
Projection: 2-1/2"

General Warranty: Rockwood Manufacturing Company warrants that its products when properly delivered, installed and maintained, under normal use and service conditions, will be free from defects in material and workmanship for a period of one year from the date of delivery. Because of variations in atmospheric and climatic conditions, Rockwood does not warrant that its products will maintain a “like new” appearance for any length of time, so this warranty does not extend to the appearance of Rockwood’s products. Rockwood shall have no responsibility other than the repair or replacement of defective products.
