SoftMet Collection

SoftMet pulls feature durable, weather-resistant black 1-1/4" diameter Santoprene™ grips, sandwiched between metal fittings.

Santoprene is a high performance engineered thermoplastic elastomer used for many consumer goods grip applications.

The comfortable feel of this material is widely proven, even on cold exterior applications.

Straight and offset pulls as well as push bars are available in all architectural finishes.

Complete your decor with SoftMet coat hooks, levers and other coordinated accessories.

(Santoprene™ is a trademark of
Santoprene™ Speciality Products.)

Designs
Specifications
Finishes
Options
Downloads

RM2510 - straight pull, square ends

1-1/4" diameter

8", 11", 16", up to 36" CTC

3" projection

RM2512 - push bar, square ends

1-1/4" diameter

Specify CTC

3" projection

RM2514 - straight pull, round ends

1-1/4" diameter

8", 11", 16", up to 36" CTC

3" projection

RM2515 - straight push-pull, square ends

1-1/4" diameter

Specify push/pull CTC

3" projection

RM2516 - push bar, round ends

1-1/4" diameter

Specify CTC

3" projection

RM2517 - straight push-pull, round ends

1-1/4" diameter

Specify push/pull CTC

3" projection

RM2540 - offset pull, square ends

1-1/4" diameter

8", 11", 16", up to 36" CTC

2-3/4" projection

RM2544 - offset pull, round ends

1-1/4" diameter

8", 11", 16", up to 36" CTC

2-3/4" projection

RM2545 - offset push-pull, square ends

1-1/4" diameter

Specify push/pull CTC

3" projection

RM2547 - offset push-pull, round ends

1-1/4" diameter

Specify push/pull CTC

3" projection

SoftMet Collection Specifications

Most of Rockwood's products are available in a wide variety of architectural finishes. The photographs generally show only one finish for aesthetic reasons, but all traditional architectural finishes are available. The base metals for the SoftMet Collection are stainless steel, brass or bronze.

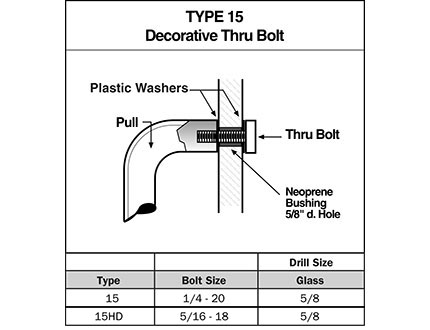

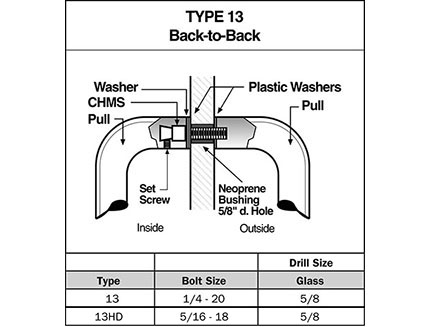

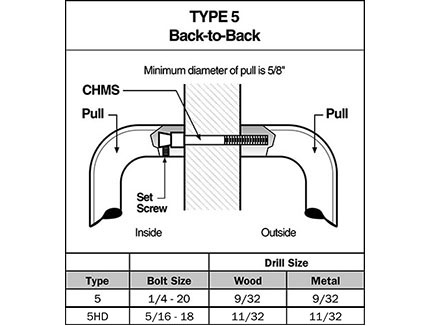

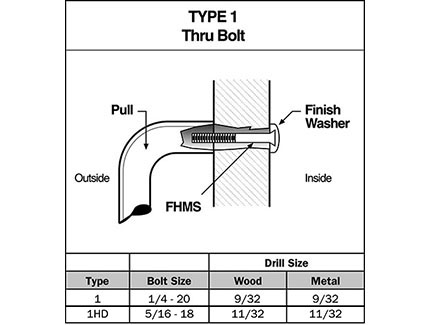

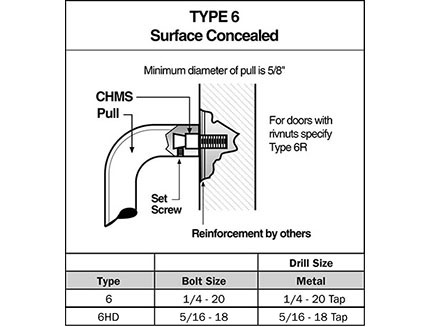

Rockwood Door Pulls – Mounting Types

Rockwood mounting systems firmly attach the pull to the door and are guaranteed for the life of the door. Choose from thrubolt, back-to-back or concealed mountings for wood, metal and glass doors.

Please note the following:

Y base plates are recommended on wood or glass doors to make a stable and durable mounting.

Heavy Duty (HD) mounting features hex drive for positive tightening and large overall size for superior strength. (Recommended for high frequency and rough service openings.)
To specify multi-bar sets, suffix -2 or -3 to pull number (example: RM2512-2).

Straight Pull - Square Ends

RM2510 Specifications:

Base Metal: Stainless Steel, Brass, Bronze
Diameter: 1-1/4"
Lengths: 8", 11", 16"; or specify up to 36" CTC (center-to-center measurement between mounts)
Projection: 3"
Finishes: US32D / BHMA 630; US32 / BHMA 629; US10B / BHMA 613; US10 / BHMA 612; US4 / BHMA 606; US3 / BHMA 605

Straight Pull - Round Ends

RM2514 Specifications:

Base Metal: Stainless Steel, Brass, Bronze
Diameter: 1-1/4"
Lengths: 8", 11", 16"; or specify up to 36" CTC (center-to-center measurement between mounts)
Projection: 3"
Finishes: US32D / BHMA 630; US32 / BHMA 629; US10B / BHMA 613; US10 / BHMA 612; US4 / BHMA 606; US3 / BHMA 605

Offset Pull - Square Ends

RM2540 Specifications:

Base Metal: Stainless Steel, Brass, Bronze
Diameter: 1-1/4"
Lengths: 8", 11", 16"; or specify up to 36" CTC (center-to-center measurement between mounts)
Projection: 2-3/4"
Finishes: US32D / BHMA 630; US32 / BHMA 629; US10B / BHMA 613; US10 / BHMA 612; US4 / BHMA 606; US3 / BHMA 605

Offset Pull - Round Ends

RM2544 Specifications:

Base Metal: Stainless Steel, Brass, Bronze
Diameter: 1-1/4"
Lengths: 8", 11", 16"; or specify up to 36" CTC (center-to-center measurement between mounts)
Projection: 2-3/4"
Finishes: US32D / BHMA 630; US32 / BHMA 629; US10B / BHMA 613; US10 / BHMA 612; US4 / BHMA 606; US3 / BHMA 605

Straight Push-Pull Set - Square Ends

RM2515 Specifications:

Base Metal: Stainless Steel, Brass, Bronze
Diameter: 1-1/4"
Lengths: Specify push/pull CTC (center-to-center measurement between mounts)
Projection: 3"
Finishes: US32D / BHMA 630; US32 / BHMA 629; US10B / BHMA 613; US10 / BHMA 612; US4 / BHMA 606; US3 / BHMA 605

Straight Push-Pull Set - Round Ends

RM2517 Specifications:

Base Metal: Stainless Steel, Brass, Bronze
Diameter: 1-1/4"
Lengths: Specify push/pull CTC (center-to-center measurement between mounts)
Projection: 3"
Finishes: US32D / BHMA 630; US32 / BHMA 629; US10B / BHMA 613; US10 / BHMA 612; US4 / BHMA 606; US3 / BHMA 605

Offset Push-Pull Set - Square Ends

RM2545 Specifications:

Base Metal: Stainless Steel, Brass, Bronze
Diameter: 1-1/4"
Lengths: Specify push/pull CTC (center-to-center measurement between mounts)
Projection: 3"
Finishes: US32D / BHMA 630; US32 / BHMA 629; US10B / BHMA 613; US10 / BHMA 612; US4 / BHMA 606; US3 / BHMA 605

Offset Push-Pull Set - Round Ends

RM2547 Specifications:

Base Metal: Stainless Steel, Brass, Bronze
Diameter: 1-1/4"
Lengths: Specify push/pull CTC (center-to-center measurement between mounts)
Projection: 3"
Finishes: US32D / BHMA 630; US32 / BHMA 629; US10B / BHMA 613; US10 / BHMA 612; US4 / BHMA 606; US3 / BHMA 605

Push Bar - Square Ends

RM2512 Specifications:

Base Metal: Stainless Steel, Brass, Bronze
Diameter: 1-1/4"
Length: Specify CTC (center-to-center measurement between mounts)
Projection: 3"
Finishes: US32D / BHMA 630; US32 / BHMA 629; US10B / BHMA 613; US10 / BHMA 612; US4 / BHMA 606; US3 / BHMA 605

Push Bar - Round Ends

RM2516 Specifications:

Base Metal: Stainless Steel, Brass, Bronze
Diameter: 1-1/4"
Length: Specify CTC (center-to-center measurement between mounts)
Projection: 3"
Finishes: US32D / BHMA 630; US32 / BHMA 629; US10B / BHMA 613; US10 / BHMA 612; US4 / BHMA 606; US3 / BHMA 605

General Warranty: Rockwood Manufacturing Company warrants that its products when properly delivered, installed and maintained, under normal use and service conditions, will be free from defects in material and workmanship for a period of one year from the date of delivery. Because of variations in atmospheric and climatic conditions, Rockwood does not warrant that its products will maintain a “like new” appearance for any length of time, so this warranty does not extend to the appearance of Rockwood’s products. Rockwood shall have no responsibility other than the repair or replacement of defective products.
