NoirTek Collection

NoirTek Collection pulls stand out on light colored entrances for a quick identity and bold statement.

The durable black hard coat anodized grips compliment many design schemes, and are an appealing finish on their own.

Choose from an array of contrasting finishes for the mounting posts.

NoirTek is available in three diameters and
a variety of lengths.

Designs
Specifications

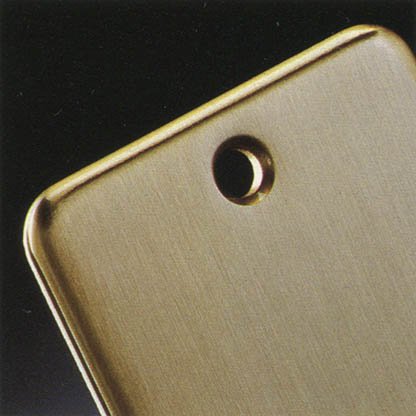

Finishes
Downloads

RM3900 - straight pull, square ends

1" diameter

8", 10", 12" CTC

2-3/4" projection

RM3902 - push bar, square ends

1" diameter

Specify CTC

2-3/4" projection

RM3904 - straight pull, round ends

1" diameter

8", 10", 12" CTC

2-3/4" projection

RM3906 - push bar, round ends

1" diameter

Specify CTC

2-3/4" projection

RM3907 - straight push-pull, round ends

1" diameter

8" pull CTC; specify push CTC

2-3/4" projection

RM3910 - straight pull, square ends

1-1/4" diameter

8", 11", 16" CTC

3" projection

RM3912 - push bar, square ends

1-1/4" diameter

Specify CTC

3" projection

RM3914 - straight pull, round ends

1-1/4" diameter

8", 11", 16" CTC

3" projection

RM3916 - push bar, round ends

1-1/4" diameter

Specify CTC

3" projection

RM3917 - straight push-pull, round ends

1-1/4" diameter

8" pull CTC; specify push CTC

3" projection

RM3920 - straight pull, square ends

1-1/2" diameter

11", 16", 20" CTC

3-1/4" projection

RM3922 - push bar, square ends

1-1/2" diameter

Specify CTC

3-1/4" projection

RM3924 - striaght pull, round ends

1-1/2" diameter

11", 16", 20" CTC

3-1/4" projection

RM3925 - straight push-pull, square ends

1-1/2" diameter

11" pull CTC; specify push CTC

3-1/4" projection

RM3926 - push bar, round ends

1-1/2" diameter

Specify CTC

3-1/4" projection

RM3930 - offset pull, square ends

1" diameter

8", 10", 12" CTC

2-1/2" projection

RM3934 - offset pull, round ends

1" diameter

8", 10", 12" CTC

2-1/2" projection

RM3937 - offset push-pull, round ends

1" diameter

8" pull CTC; specify push CTC

2-3/4" projection

RM3940 - offset pull, square ends

1-1/4" diameter

8", 11", 16" CTC

2-3/4" projection

RM3944 - offset pull, round ends

1-1/4" diameter

8", 11", 16" CTC

2-3/4" projection

RM3947 - offset push-pull, round ends

1-1/4" diameter

8" pull CTC; specify push CTC

3" projection

RM3950 - offset pull, square ends

1-1/2" diameter

11", 16", 20" CTC

3" projection

RM3954 - offset pull, round ends

1-1/2" diameter

11", 16", 20" CTC

3" projection

RM3955 - offset push-pull, square ends

1-1/2" diameter

11" pull CTC; specify push CTC

3-1/4" projection

RM3957 - offset push-pull, round ends

1-1/2" diameter

11" pull CTC; specify push CTC

3-1/4" projection

NoirTek Collection Specifications

Most of Rockwood's products are available in a wide variety of architectural finishes. The photographs generally show only one finish for aesthetic reasons, but all traditional architectural finishes are available. The base metal options for the NoirTek Collection are aluminum, stainless steel, brass or bronze.

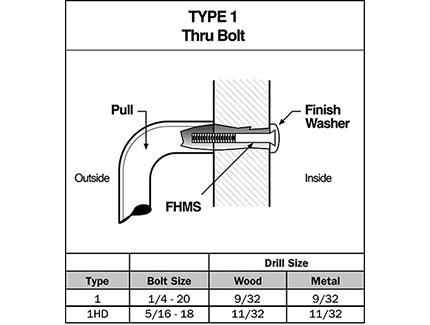

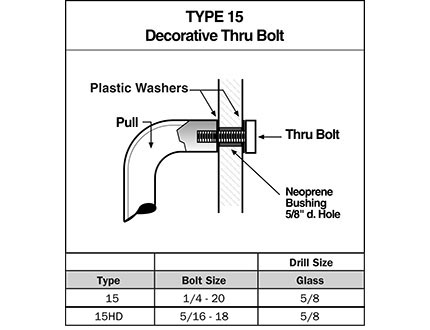

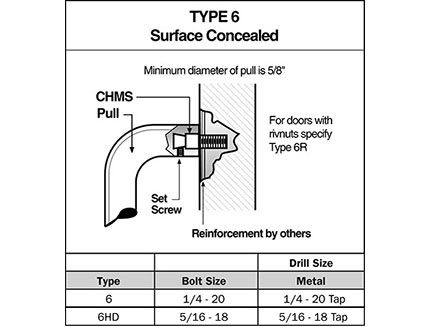

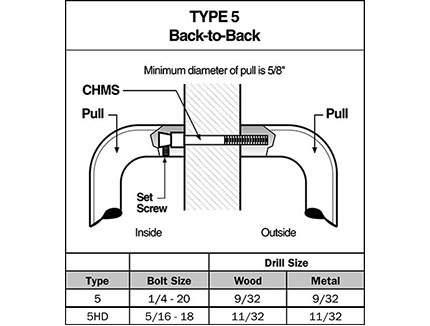

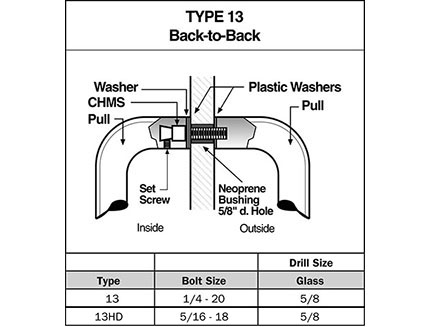

Rockwood Door Pulls – Mounting Types

Rockwood mounting systems firmly attach the pull to the door and are guaranteed for the life of the door. Choose from thrubolt, back-to-back or concealed mountings for wood, metal and glass doors.

Please note the following:

Y base plates are recommended on wood or glass doors to make a stable and durable mounting.
Heavy Duty (HD) mounting features hex drive for positive tightening and large overall size for superior strength. (Recommended for high frequency and rough service openings.)
Post location on push bars can be located 1/8" from end for narrow and medium stile doors, and 1" from end for flush and wide stile doors.
To specify multi-bar sets, suffix -2 or -3 to pull number (example: RM3902-3).

Straight Pulls - Square Ends

RM3900 Specifications:

Base Metals: Aluminum, Stainless Steel, Brass, Bronze
(aluminum not available for posts)
Diameter: 1"
Lengths: 8", 10", 12" CTC (center-to-center measurement between mounts)
Projection: 2-3/4"
Finishes: US32D / BHMA 630; US32 / BHMA 629; US28 / BHMA 628; US10B / BHMA 613; US10 / BHMA 612; US4 / BHMA 606; US3 / BHMA 605; 315 / BHMA 711; 313 / BHMA 710

RM3910 Specifications (HD Mounting):

Base Metals: Aluminum, Stainless Steel, Brass, Bronze
(aluminum not available for posts)
Diameter: 1-1/4"
Lengths: 8", 11", 16" CTC (center-to-center measurement between mounts)
Projection: 3"
Finishes: US32D / BHMA 630; US32 / BHMA 629; US28 / BHMA 628; US10B / BHMA 613; US10 / BHMA 612; US4 / BHMA 606; US3 / BHMA 605; 315 / BHMA 711; 313 / BHMA 710

RM3920 Specifications (HD Mounting):

Base Metals: Aluminum, Stainless Steel, Brass, Bronze
(aluminum not available for posts)
Diameter: 1-1/2"
Lengths: 11", 16", 20" CTC (center-to-center measurement between mounts)
Projection: 3-1/4"
Finishes: US32D / BHMA 630; US32 / BHMA 629; US28 / BHMA 628; US10B / BHMA 613; US10 / BHMA 612; US4 / BHMA 606; US3 / BHMA 605; 315 / BHMA 711; 313 / BHMA 710

Straight Pulls - Round Ends

RM3904 Specifications:

Base Metals: Aluminum, Stainless Steel, Brass, Bronze
(aluminum not available for posts)
Diameter: 1"
Lengths: 8", 10", 12" CTC (center-to-center measurement between mounts)
Projection: 2-3/4"
Finishes: US32D / BHMA 630; US32 / BHMA 629; US28 / BHMA 628; US10B / BHMA 613; US10 / BHMA 612; US4 / BHMA 606; US3 / BHMA 605; 315 / BHMA 711; 313 / BHMA 710

RM3914 Specifications (HD Mounting):

Base Metals: Aluminum, Stainless Steel, Brass, Bronze
(aluminum not available for posts)
Diameter: 1-1/4"
Lengths: 8", 11", 16" CTC (center-to-center measurement between mounts)
Projection: 3"
Finishes: US32D / BHMA 630; US32 / BHMA 629; US28 / BHMA 628; US10B / BHMA 613; US10 / BHMA 612; US4 / BHMA 606; US3 / BHMA 605; 315 / BHMA 711; 313 / BHMA 710

RM3924 Specifications (HD Mounting):

Base Metals: Aluminum, Stainless Steel, Brass, Bronze
(aluminum not available for posts)
Diameter: 1-1/2"
Lengths: 11", 16", 20" CTC (center-to-center measurement between mounts)
Projection: 3-1/4"
Finishes: US32D / BHMA 630; US32 / BHMA 629; US28 / BHMA 628; US10B / BHMA 613; US10 / BHMA 612; US4 / BHMA 606; US3 / BHMA 605; 315 / BHMA 711; 313 / BHMA 710

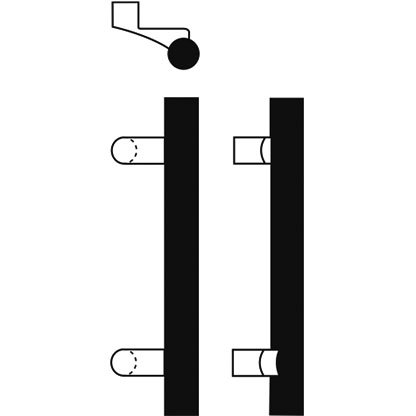

Offset Pulls - Square Ends

RM3930 Specifications:

Base Metals: Aluminum, Stainless Steel, Brass, Bronze
(aluminum not available for posts)
Diameter: 1"
Lengths: 8", 10", 12" CTC (center-to-center measurement between mounts)
Projection: 2-1/2"
Finishes: US32D / BHMA 630; US32 / BHMA 629; US28 / BHMA 628; US10B / BHMA 613; US10 / BHMA 612; US4 / BHMA 606; US3 / BHMA 605; 315 / BHMA 711; 313 / BHMA 710

RM3940 Specifications (HD Mounting):

Base Metals: Aluminum, Stainless Steel, Brass, Bronze
(aluminum not available for posts)
Diameter: 1-1/4"
Lengths: 8", 11", 16" CTC (center-to-center measurement between mounts)
Projection: 2-3/4"
Finishes: US32D / BHMA 630; US32 / BHMA 629; US28 / BHMA 628; US10B / BHMA 613; US10 / BHMA 612; US4 / BHMA 606; US3 / BHMA 605; 315 / BHMA 711; 313 / BHMA 710

RM3950 Specifications (HD Mounting):

Base Metals: Aluminum, Stainless Steel, Brass, Bronze
(aluminum not available for posts)
Diameter: 1-1/2"
Lengths: 11", 16", 20" CTC (center-to-center measurement between mounts)
Projection: 3"
Finishes: US32D / BHMA 630; US32 / BHMA 629; US28 / BHMA 628; US10B / BHMA 613; US10 / BHMA 612; US4 / BHMA 606; US3 / BHMA 605; 315 / BHMA 711; 313 / BHMA 710

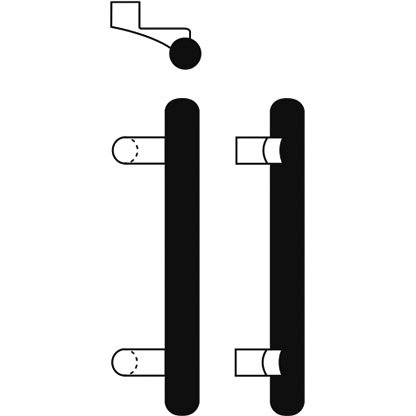

Offset Pulls - Round Ends

RM3934 Specifications:

Base Metals: Aluminum, Stainless Steel, Brass, Bronze
(aluminum not available for posts)
Diameter: 1"
Lengths: 8", 10", 12" CTC (center-to-center measurement between mounts)
Projection: 2-1/2"
Finishes: US32D / BHMA 630; US32 / BHMA 629; US28 / BHMA 628; US10B / BHMA 613; US10 / BHMA 612; US4 / BHMA 606; US3 / BHMA 605; 315 / BHMA 711; 313 / BHMA 710

RM3944 Specifications (HD Mounting):

Base Metals: Aluminum, Stainless Steel, Brass, Bronze
(aluminum not available for posts)
Diameter: 1-1/4"
Lengths: 8", 11", 16" CTC (center-to-center measurement between mounts)
Projection: 2-3/4"
Finishes: US32D / BHMA 630; US32 / BHMA 629; US28 / BHMA 628; US10B / BHMA 613; US10 / BHMA 612; US4 / BHMA 606; US3 / BHMA 605; 315 / BHMA 711; 313 / BHMA 710

RM3954 Specifications (HD Mounting):

Base Metals: Aluminum, Stainless Steel, Brass, Bronze
(aluminum not available for posts)
Diameter: 1-1/2"
Lengths: 11", 16", 20" CTC (center-to-center measurement between mounts)
Projection: 3"
Finishes: US32D / BHMA 630; US32 / BHMA 629; US28 / BHMA 628; US10B / BHMA 613; US10 / BHMA 612; US4 / BHMA 606; US3 / BHMA 605; 315 / BHMA 711; 313 / BHMA 710

Straight Push/Pull Sets - Square Ends

RM3925 Specifications (HD Mounting):

Base Metals: Aluminum, Stainless Steel, Brass, Bronze
Diameter: 1-1/2"
Lengths: 11" pull CTC; specify push CTC (center-to-center measurement between mounts)
Projection: 3-1/4"
Finishes: US32D / BHMA 630; US32 / BHMA 629; US28 / BHMA 628; US10B / BHMA 613; US10 / BHMA 612; US4 / BHMA 606; US3 / BHMA 605; 315 / BHMA 711; 313 / BHMA 710

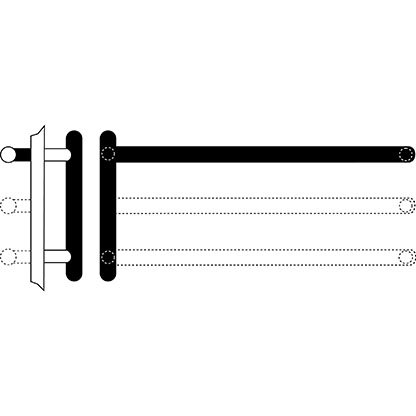

Straight Push/Pull Sets - Round Ends

RM3907 Specifications:

Base Metals: Aluminum, Stainless Steel, Brass, Bronze
Diameter: 1"
Lengths: 8" pull CTC; specify push CTC (center-to-center measurement between mounts)
Projection: 2-3/4"
Finishes: US32D / BHMA 630; US32 / BHMA 629; US28 / BHMA 628; US10B / BHMA 613; US10 / BHMA 612; US4 / BHMA 606; US3 / BHMA 605; 315 / BHMA 711; 313 / BHMA 710

RM3917 Specifications (HD Mounting):

Base Metals: Aluminum, Stainless Steel, Brass, Bronze
Diameter: 1-1/4"
Lengths: 8" pull CTC; specify push CTC (center-to-center measurement between mounts)
Projection: 3"
Finishes: US32D / BHMA 630; US32 / BHMA 629; US28 / BHMA 628; US10B / BHMA 613; US10 / BHMA 612; US4 / BHMA 606; US3 / BHMA 605; 315 / BHMA 711; 313 / BHMA 710

Offset Push/Pull Sets - Square Ends

RM3955 Specifications (HD Mounting):

Base Metals: Aluminum, Stainless Steel, Brass, Bronze
Diameter: 1-1/2"
Lengths: 11" pull CTC; specify push CTC (center-to-center measurement between mounts)
Projection: 3-1/4"
Finishes: US32D / BHMA 630; US32 / BHMA 629; US10B / BHMA 613; US10 / BHMA 612; US4 / BHMA 606; US3 / BHMA 605

Offset Push/Pull Sets - Round Ends

RM3937 Specifications:

Base Metals: Aluminum, Stainless Steel, Brass, Bronze
Diameter: 1"
Lengths: 8" pull CTC; specify push CTC (center-to-center measurement between mounts)
Projection: 2-3/4"
Finishes: US32D / BHMA 630; US32 / BHMA 629; US10B / BHMA 613; US10 / BHMA 612; US4 / BHMA 606; US3 / BHMA 605

RM3947 Specifications (HD Mounting):

Base Metals: Aluminum, Stainless Steel, Brass, Bronze
Diameter: 1-1/4"
Lengths: 8" pull CTC; specify push CTC (center-to-center measurement between mounts)
Projection: 3"
Finishes: US32D / BHMA 630; US32 / BHMA 629; US10B / BHMA 613; US10 / BHMA 612; US4 / BHMA 606; US3 / BHMA 605

RM3957 Specifications (HD Mounting):

Base Metals: Aluminum, Stainless Steel, Brass, Bronze
Diameter: 1-1/2"
Lengths: 11" pull CTC; specify push CTC (center-to-center measurement between mounts)
Projection: 3-1/4"
Finishes: US32D / BHMA 630; US32 / BHMA 629; US10B / BHMA 613; US10 / BHMA 612; US4 / BHMA 606; US3 / BHMA 605

Push Bars - Square Ends

RM3902 Specifications:

Base Metals: Aluminum, Stainless Steel, Brass, Bronze
(aluminum not available for posts)
Diameter: 1"
Length: Specify CTC (center-to-center measurement between mounts)
Projection: 2-3/4"
Finishes: US32D / BHMA 630; US32 / BHMA 629; US28 / BHMA 628; US10B / BHMA 613; US10 / BHMA 612; US4 / BHMA 606; US3 / BHMA 605; 315 / BHMA 711; 313 / BHMA 710

RM3912 Specifications (HD Mounting):

Base Metals: Aluminum, Stainless Steel, Brass, Bronze
(aluminum not available for posts)
Diameter: 1-1/4"
Length: Specify CTC (center-to-center measurement between mounts)
Projection: 3"
Finishes: US32D / BHMA 630; US32 / BHMA 629; US28 / BHMA 628; US10B / BHMA 613; US10 / BHMA 612; US4 / BHMA 606; US3 / BHMA 605; 315 / BHMA 711; 313 / BHMA 710

RM3922 Specifications (HD Mounting):

Base Metals: Aluminum, Stainless Steel, Brass, Bronze
(aluminum not available for posts)
Diameter: 1-1/2"
Length: Specify CTC (center-to-center measurement between mounts)
Projection: 3-1/4"
Finishes: US32D / BHMA 630; US32 / BHMA 629; US28 / BHMA 628; US10B / BHMA 613; US10 / BHMA 612; US4 / BHMA 606; US3 / BHMA 605; 315 / BHMA 711; 313 / BHMA 710

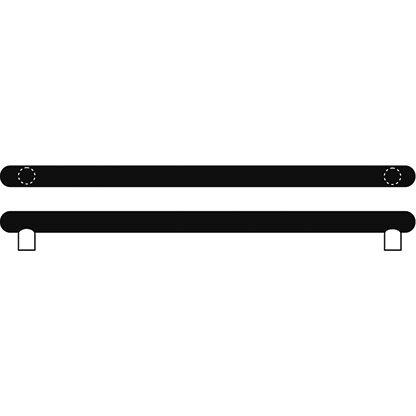

Push Bars - Round Ends

RM3906 Specifications:

Base Metals: Aluminum, Stainless Steel, Brass, Bronze
(aluminum not available for posts)
Diameter: 1"
Length: Specify CTC (center-to-center measurement between mounts)
Projection: 2-3/4"
Finishes: US32D / BHMA 630; US32 / BHMA 629; US28 / BHMA 628; US10B / BHMA 613; US10 / BHMA 612; US4 / BHMA 606; US3 / BHMA 605; 315 / BHMA 711; 313 / BHMA 710

RM3916 Specifications (HD Mounting):

Base Metals: Aluminum, Stainless Steel, Brass, Bronze
(aluminum not available for posts)
Diameter: 1-1/4"
Length: Specify CTC (center-to-center measurement between mounts)
Projection: 3"
Finishes: US32D / BHMA 630; US32 / BHMA 629; US28 / BHMA 628; US10B / BHMA 613; US10 / BHMA 612; US4 / BHMA 606; US3 / BHMA 605; 315 / BHMA 711; 313 / BHMA 710

RM3926 Specifications (HD Mounting):

Base Metals: Aluminum, Stainless Steel, Brass, Bronze
(aluminum not available for posts)
Diameter: 1-1/2"
Length: Specify CTC (center-to-center measurement between mounts)
Projection: 3-1/4"
Finishes: US32D / BHMA 630; US32 / BHMA 629; US28 / BHMA 628; US10B / BHMA 613; US10 / BHMA 612; US4 / BHMA 606; US3 / BHMA 605; 315 / BHMA 711; 313 / BHMA 710

General Warranty: Rockwood Manufacturing Company warrants that its products when properly delivered, installed and maintained, under normal use and service conditions, will be free from defects in material and workmanship for a period of one year from the date of delivery. Because of variations in atmospheric and climatic conditions, Rockwood does not warrant that its products will maintain a “like new” appearance for any length of time, so this warranty does not extend to the appearance of Rockwood’s products. Rockwood shall have no responsibility other than the repair or replacement of defective products.
