MezzoTek Collection

MezzoTek pulls appear to float on necked posts yet are made with Rockwood's unique sturdy construction.

Available in most architectural finishes in
1-1/4" and 1-1/2" diameter straight pulls and push bars. Full height pulls are also available.

Rockwood's popular "GripZone" contrasting finish is available, as shown in the Designs tab and closeup detail to the right.

Designs
Specifications
Downloads

RM2110 - straight pull

1-1/4" diameter

8", 11", 16", up to 96" CTC

Over 96" CTC on select finishes

3" projection

RM2111 - straight pull

1-1/2" diameter

11", 16", 20", up to 96" CTC

Over 96" CTC on select finishes

3-1/4" projection

RM2112 - push bar

1-1/4" diameter

Specify CTC

Specify door handing

3" projection

RM2115 - push-pull set

1-1/4" diameter

Specify push/pull CTC

Specify door handing

3" projection

RM2117 - push-pull set, GripZone

1-1/2" diameter

Specify push/pull CTC

Specify door handing

3-1/4" projection

RM2122 - push bar

1-1/2" diameter

Specify CTC

Specify door handing

3-1/4" projection

RM2125 - push-pull set

1-1/2" diameter

Specify push/pull CTC

Specify door handing

3-1/4" projection

RM2127 - push-pull set, GripZone

1-1/2" diameter

Specify push/pull CTC

Specify door handing

3-1/4" projection

RM2130 - straight pull, GripZone

1-1/4" diameter

8", 11", 16", up to 96" CTC

Over 96" CTC on select finishes

3" projection

RM2132 - push bar, GripZone

1-1/4" diameter

Specify CTC

Specify door handing

3" projection

RM2140 - straight pull, GripZone

1-1/2" diameter

11", 16", 20", up to 96" CTC

Over 96" CTC on select finishes

3-1/4" projection

RM2142 - push bar, GripZone

1-1/2" diameter

Specify CTC

Specify door handing

3-1/4" projection

MezzoTek Collection Specifications

Most of Rockwood's products are available in a wide variety of architectural finishes. The photographs generally show only one finish for aesthetic reasons, but all traditional architectural finishes are available. The base metal options for the MezzoTek Collection are stainless steel, brass or bronze.

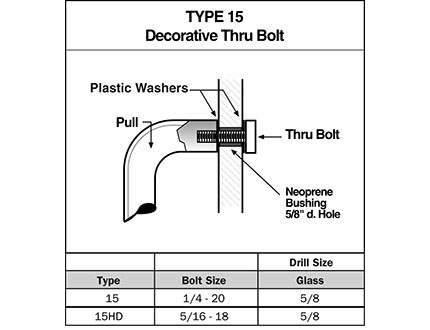

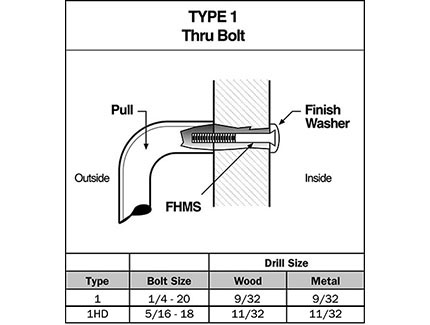

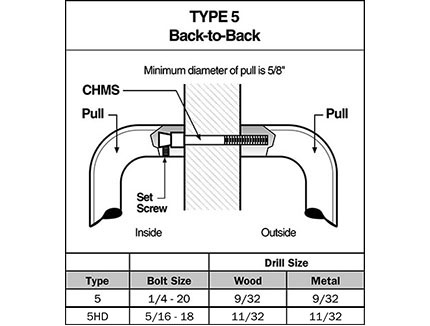

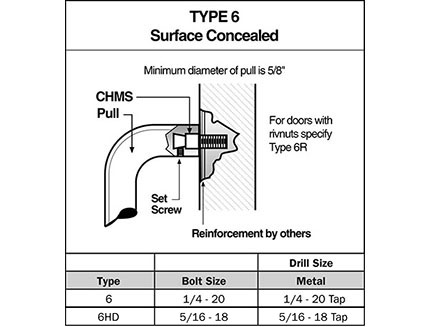

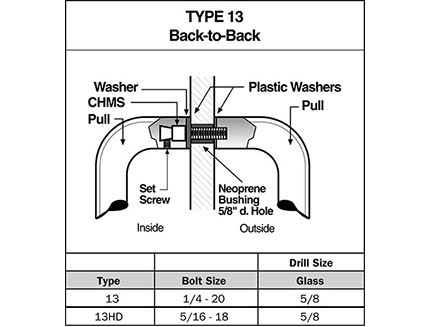

Rockwood Door Pulls – Mounting Types

Rockwood mounting systems firmly attach the pull to the door and are guaranteed for the life of the door. Choose from thrubolt, back-to-back or concealed mountings for wood, metal and glass doors.

Please note the following:

Y base plates are recommended on wood or glass doors to make a stable and durable mounting.
Heavy Duty (HD) mounting features hex drive for positive tightening and large overall size for superior strength. (Recommended for high frequency and rough service openings.)
To specify multi-bar sets, suffix -2 or -3 to pull number (example: RM2132-3).

Options:

For optional mid-post, suffix the product number with “MP” (example: RM2120MP).
Over 96" available on select finishes.

Application Suggestions

Straight Pull (without GripZone)

RM2110 Specifications (HD Mounting):

Base Metal: Stainless Steel, Brass, Bronze
Diameter: 1-1/4"
Lengths: 8", 11", 16"; up to 96" CTC (center-to-center measurement between mounts)
Projection: 3"
Finishes: US32D316; US32D / BHMA 630; US32316 ; US32 / BHMA 629; US10B / BHMA 613; US10 / BHMA 612; US4 / BHMA 606; US3 / BHMA 605

RM2120 Specifications (HD Mounting):

Base Metal: Stainless Steel, Brass, Bronze
Diameter: 1-1/2"
Lengths: 11", 16", 20"; up to 96" CTC (center-to-center measurement between mounts)
Projection: 3-1/4"
Finishes: US32D / BHMA 630; US32 / BHMA 629; US10B / BHMA 613; US10 / BHMA 612; US4 / BHMA 606; US3 / BHMA 605

Straight Pull (with GripZone)

RM2130 Specifications (HD Mounting):

Base Metal: Stainless Steel, Brass, Bronze
Diameter: 1-1/4"
Lengths: 8", 11", 16"; up to 96" CTC (center-to-center measurement between mounts)
Projection: 3"
Finishes: US32316 ; US32 / BHMA 629; US9 / BHMA 611; US3 / BHMA 605

RM2140 Specifications (HD Mounting):

Base Metal: Stainless Steel, Brass, Bronze
Diameter: 1-1/2"
Lengths: 11", 16", 20"; up to 96" CTC (center-to-center measurement between mounts)
Projection: 3-1/4"
Finishes: US32 / BHMA 629; US9 / BHMA 611; US3 / BHMA 605

Push-Pull Set (without GripZone)

RM2115 Specifications:

Base Metal: Stainless Steel, Brass, Bronze
Diameter: 1-1/4"
Lengths: Specify push/pull CTC (center-to-center measurement between mounts)
Door Handing: Specify
Projection: 3"
Finishes: US32D316; US32D / BHMA 630; US32316 ; US32 / BHMA 629; US10B / BHMA 613; US10 / BHMA 612; US4 / BHMA 606; US3 / BHMA 605

RM2125 Specifications:

Base Metal: Stainless Steel, Brass, Bronze
Diameter: 1-1/2"
Lengths: Specify push/pull CTC (center-to-center measurement between mounts)
Door Handing: Specify
Projection: 3-1/4"
Finishes: US32 / BHMA 629; US10B / BHMA 613; US10 / BHMA 612; US4 / BHMA 606; US3 / BHMA 605

Push-Pull Set (with GripZone)

RM2117 Specifications:

Base Metal: Stainless Steel, Brass, Bronze
Diameter: 1-1/4"
Lengths: Specify push/pull CTC (center-to-center measurement between mounts)
Door Handing: Specify
Projection: 3"
Finishes: US32 / BHMA 629; US9 / BHMA 611; US3 / BHMA 605

RM2127 Specifications:

Base Metal: Stainless Steel, Brass, Bronze
Diameter: 1-1/2"
Lengths: Specify push/pull CTC (center-to-center measurement between mounts)
Door Handing: Specify
Projection: 3-1/4"
Finishes: US32 / BHMA 629; US9 / BHMA 611; US3 / BHMA 605

Push Bar (without GripZone)

RM2112 Specifications (HD Mounting):

Base Metal: Stainless Steel, Brass, Bronze
Diameter: 1-1/4"
Length: Specify CTC (center-to-center measurement between mounts)
Door Handing: Specify
Projection: 3"
Finishes: US32D / BHMA 630; US32 / BHMA 629; US10B / BHMA 613; US10 / BHMA 612; US4 / BHMA 606; US3 / BHMA 605

RM2122 Specifications (HD Mounting):

Base Metal: Stainless Steel, Brass, Bronze
Diameter: 1-1/2"
Length: Specify CTC (center-to-center measurement between mounts)
Door Handing: Specify
Projection: 3-1/4"
Finishes: US32D / BHMA 630; US32 / BHMA 629; US10B / BHMA 613; US10 / BHMA 612; US4 / BHMA 606; US3 / BHMA 605

Push Bar (with GripZone)

RM2132 Specifications (HD Mounting):

Base Metal: Stainless Steel, Brass, Bronze
Diameter: 1-1/4"
Length: Specify CTC (center-to-center measurement between mounts)
Door Handing: Specify
Projection: 3"
Finishes: US32 / BHMA 629; US10B / BHMA 613; US10 / BHMA 612; US4 / BHMA 606; US3 / BHMA 605

RM2142 Specifications (HD Mounting):

Base Metal: Stainless Steel, Brass, Bronze
Diameter: 1-1/2"
Length: Specify CTC (center-to-center measurement between mounts)
Door Handing: Specify
Projection: 3-1/4"
Finishes: US32 / BHMA 629; US9 / BHMA 611; US3 / BHMA 605

General Warranty: Rockwood Manufacturing Company warrants that its products when properly delivered, installed and maintained, under normal use and service conditions, will be free from defects in material and workmanship for a period of one year from the date of delivery. Because of variations in atmospheric and climatic conditions, Rockwood does not warrant that its products will maintain a “like new” appearance for any length of time, so this warranty does not extend to the appearance of Rockwood’s products. Rockwood shall have no responsibility other than the repair or replacement of defective products.
