MegaCurve Collection
Ever since the discovery of calculus by Sir Isaac Newton and Gottfried Leibniz in the 17th century, man has been fascinated with the building of precise curved surfaces.
Rockwood is eager to build the long curved pull you envision.
Select from the standard shapes shown here in 1-1⁄4" diameter, or send a drawing to Penner of your own creation.
- Designs
- Specifications
- Finishes
- Downloads
RM2000 - mid bow pull, square ends
RM2000 - mid bow pull, square ends
72" to 96" CTC
Over 96" on select finishes
3" projection
RM2004 - mid bow pull, round ends
RM2004 - mid bow pull, round ends
72" to 96" CTC
Over 96" on select finishes
3" projection
RM2010 - long bow pull, square ends
RM2010 - long bow pull, square ends
72" to 96" CTC
Over 96" on select finishes
3" projection
RM2014 - long bow pull, round ends
RM2014 - long bow pull, round ends
72" to 96" CTC
Over 96" on select finishes
3" projection
RM2020 - 45° pull, square ends
RM2020 - 45° pull, square ends
72" to 96" CTC
Over 96" on select finishes
3" projection
RM2024 - 45° pull, round ends
RM2024 - 45° pull, round ends
72" to 96" CTC
Over 96" on select finishes
3" projection

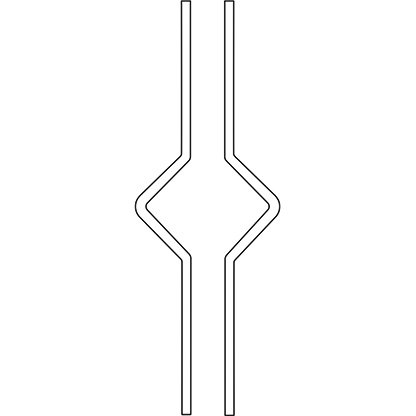

RM2030 - triangle pull, square ends
RM2030 - triangle pull, square ends
72" to 96" CTC
Over 96" on select finishes
3" projection
RM2034 - triangle pull, round ends
RM2034 - triangle pull, round ends
72" to 96" CTC
Over 96" on select finishes
3" projection
MegaCurve Collection Specifications

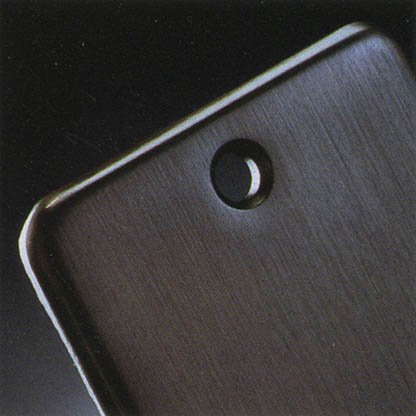

Most of Rockwood's products are available in a wide variety of architectural finishes. The photographs generally show only one finish for aesthetic reasons, but all traditional architectural finishes are available. The base metal options for the MegaCurve Collection are stainless steel, brass or bronze.
Rockwood Door Pulls – Mounting Types

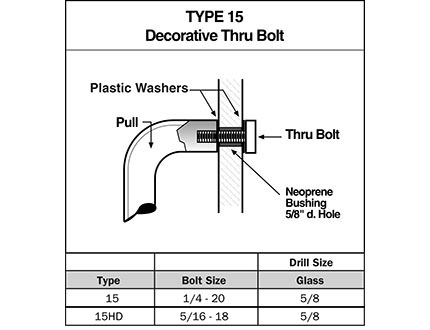

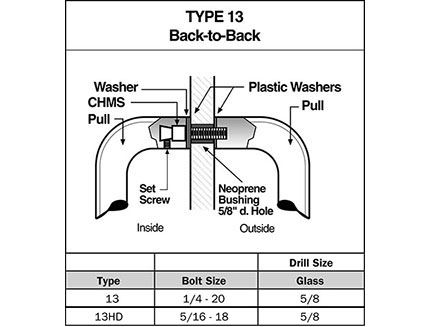

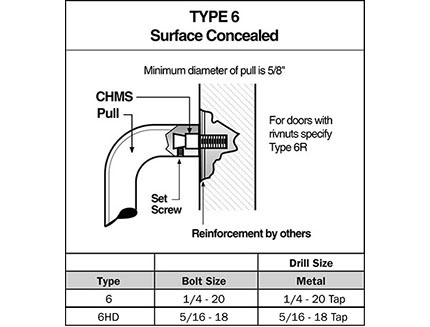

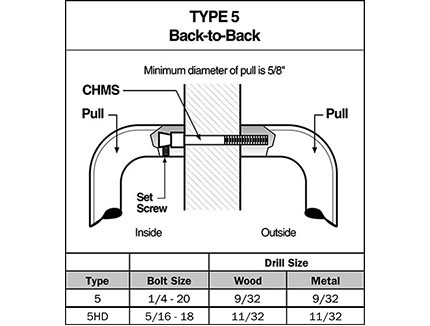

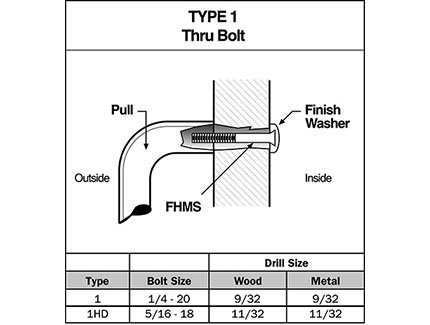

Rockwood mounting systems firmly attach the pull to the door and are guaranteed for the life of the door. Choose from thrubolt, back-to-back or concealed mountings for wood, metal and glass doors.
Please note the following:
-
Y base plates are recommended on wood or glass doors to make a stable and durable mounting.
-
Heavy Duty (HD) mounting features hex drive for positive tightening and large overall size for superior strength. (Recommended for high frequency and rough service openings.)
Options:
-
Over 96" available on select finishes.
Application Suggestions
Mid Bow Long Pull - Square Ends
RM2000 Specifications (HD Mounting):
- Base Metal: Stainless Steel, Brass, Bronze
- Diameter: 1-1/4"
- Lengths: 72" to 96" CTC (center-to-center measurement between mounts)
- Projection: 3"
- Finishes: US32D316; US32D / BHMA 630; US32316; US32 / BHMA 629; US10B / BHMA 613; US10 / BHMA 612; US4 / BHMA 606; US3 / BHMA 605
RM2004 Specifications (HD Mounting):
- Base Metal: Stainless Steel, Brass, Bronze
- Diameter: 1-1/4"
- Lengths: 72" to 96" CTC (center-to-center measurement between mounts)
- Projection: 3"
- Finishes: US32D / BHMA 630; US32 / BHMA 629; US10B / BHMA 613; US10 / BHMA 612; US4 / BHMA 606; US3 / BHMA 605
RM2010 Specifications (HD Mounting):
- Base Metal: Stainless Steel, Brass, Bronze
- Diameter: 1-1/4"
- Lengths: 72" to 96" CTC (center-to-center measurement between mounts)
- Projection: 3"
- Finishes: US32D316; US32D / BHMA 630; US32316; US32 / BHMA 629; US10B / BHMA 613; US10 / BHMA 612; US4 / BHMA 606; US3 / BHMA 605
RM2014 Specifications (HD Mounting):
- Base Metal: Stainless Steel, Brass, Bronze
- Diameter: 1-1/4"
- Lengths: 72" to 96" CTC (center-to-center measurement between mounts)
- Projection: 3"
- Finishes: US32D / BHMA 630; US32 / BHMA 629; US10B / BHMA 613; US10 / BHMA 612; US4 / BHMA 606; US3 / BHMA 605
RM2020 Specifications (HD Mounting):
- Base Metal: Stainless Steel, Brass, Bronze
- Diameter: 1-1/4"
- Lengths: 72" to 96" CTC (center-to-center measurement between mounts)
- Projection: 3"
- Finishes: US32D316; US32D / BHMA 630; US32316; US32 / BHMA 629; US10B / BHMA 613; US10 / BHMA 612; US4 / BHMA 606; US3 / BHMA 605
RM2024 Specifications (HD Mounting):
- Base Metal: Stainless Steel, Brass, Bronze
- Diameter: 1-1/4"
- Lengths: 72" to 96" CTC (center-to-center measurement between mounts)
- Projection: 3"
- Finishes: US32D / BHMA 630; US32 / BHMA 629; US10B / BHMA 613; US10 / BHMA 612; US4 / BHMA 606; US3 / BHMA 605
RM2030 Specifications (HD Mounting):
- Base Metal: Stainless Steel, Brass, Bronze
- Diameter: 1-1/4"
- Lengths: 72" to 96" CTC (center-to-center measurement between mounts)
- Projection: 3"
- Finishes: US32D316; US32D / BHMA 630; US32316; US32 / BHMA 629; US10B / BHMA 613; US10 / BHMA 612; US4 / BHMA 606; US3 / BHMA 605
RM2034 Specifications (HD Mounting):
- Base Metal: Stainless Steel, Brass, Bronze
- Diameter: 1-1/4"
- Lengths: 72" to 96" CTC (center-to-center measurement between mounts)
- Projection: 3"
- Finishes: US32D / BHMA 630; US32 / BHMA 629; US10B / BHMA 613; US10 / BHMA 612; US4 / BHMA 606; US3 / BHMA 605
General Warranty: Rockwood Manufacturing Company warrants that its products when properly delivered, installed and maintained, under normal use and service conditions, will be free from defects in material and workmanship for a period of one year from the date of delivery. Because of variations in atmospheric and climatic conditions, Rockwood does not warrant that its products will maintain a “like new” appearance for any length of time, so this warranty does not extend to the appearance of Rockwood’s products. Rockwood shall have no responsibility other than the repair or replacement of defective products.
MegaCurve Mounting Types
