LineaTek Collection

LineaTek fully grooved pulls feature grooved tubular material that differentiates these pulls from all others on the market.

The material is similar to fluted tubing but with a streamlined defined surface.

These post mount pulls and push bars make
a smart contemporary statement.

Designs
Specifications
Finishes
Options
Downloads

RM3610 - straight pull, square ends

1-1/4" diameter

8", 11", 16" CTC

3" projection

RM3612 - push bar, square ends

1-1/4" diameter

Specify CTC

3" projection

RM3614 - straight pull, round ends

1-1/4" diameter

8", 11", 16" CTC

3" projection

RM3615 - straight push-pull, square ends

1-1/4" diameter

Specify push/pull CTC

3" projection

RM3616 - push bar, round ends

1-1/4" diameter

Specify push/pull CTC

3" projection

RM3617 - straight push-pull, round ends

1-1/4" diameter

Specify push/pull CTC

3" projection

RM3620 - straight pull, square ends

1-1/2" diameter

11", 16", 20" CTC

3" projection

RM3622 - push bar, square ends

1-1/2" diameter

Specify CTC

3-1/4" projection

RM3624 - straight pull, round ends

1-1/2" diameter

11", 16", 20" CTC

3-1/4" projection

RM3625 - straight push-pull, square ends

1-1/2" diameter

Specify push/pull CTC

3-1/4" projection

RM3626 - push bar, round ends

1-1/2" diameter

Specify CTC

3-1/4" projection

RM3627 - straight push-pull, round ends

1-1/2" diameter

Specify push/pull CTC

3-1/4" projection

RM3640 - offset pull, square ends

1-1/4" diameter

8", 11", 16" CTC

2-3/4" projection

RM3644 - offset pull, round ends

1-1/4" diameter

8", 11", 16" CTC

2-3/4" projection

RM3645 - offset push-pull, square ends

1-1/4" diameter

Specify push/pull CTC

3" projection

RM3647 - offset push-pull, round ends

1-1/4" diameter

Specify push/pull CTC

3" projection

RM3650 - offset pull, square ends

1-1/2" diameter

11", 16", 20" CTC

3" projection

RM3654 - offset pull, round ends

1-1/2" diameter

11", 16", 20" CTC

3" projection

RM3655 - offset push-pull, square ends

1-1/2" diameter

Specify push/pull CTC

3-1/4" projection

RM3657 - offset push-pull, round ends

1-1/2" diameter

Specify push/pull CTC

3-1/4" projection

LineaTek Collection Specifications

Most of Rockwood's products are available in a wide variety of architectural finishes. The photographs generally show only one finish for aesthetic reasons, but all traditional architectural finishes are available. The base metal options for the LineaTek Collection are stainless steel, brass or bronze.

Rockwood Door Pulls – Mounting Types

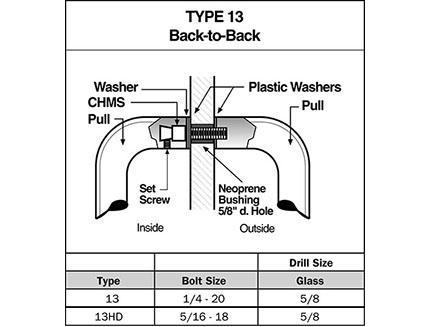

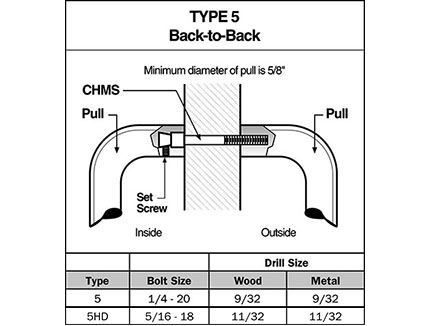

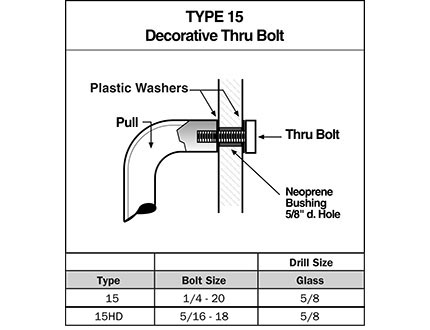

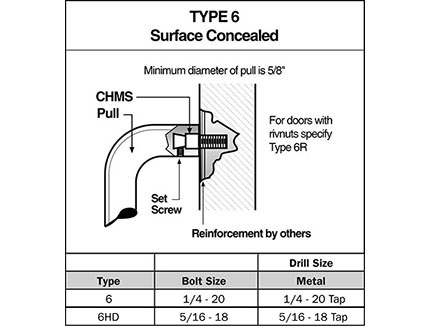

Rockwood mounting systems firmly attach the pull to the door and are guaranteed for the life of the door. Choose from thrubolt, back-to-back or concealed mountings for wood, metal and glass doors.

Please note the following:

Y base plates are recommended on wood or glass doors to make a stable and durable mounting.
Heavy Duty (HD) mounting features hex drive for positive tightening and large overall size for superior strength. (Recommended for high frequency and rough service openings.)
To specify multi-bar sets, suffix -2 or -3 to pull number (example: RM3612-2).

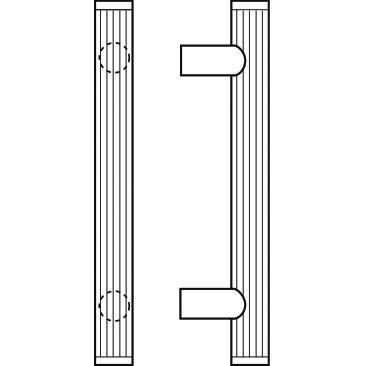

Straight Pull - Square Ends

RM3610 Specifications (HD Mounting):

Base Metal: Stainless Steel, Brass, Bronze
Diameter: 1-1/4"
Lengths: 8", 11", 16" CTC (center-to-center measurement between mounts)
Projection: 3"
Finishes: US32D / BHMA 630; US32 / BHMA 629; US10B / BHMA 613; US10 / BHMA 612; US4 / BHMA 606; US3 / BHMA 605

RM3620 Specifications (HD Mounting):

Base Metal: Stainless Steel, Brass, Bronze
Diameter: 1-1/2"
Lengths: 11", 16", 20" CTC (center-to-center measurement between mounts)
Projection: 3-1/4"
Finishes: US32D / BHMA 630; US32 / BHMA 629; US10B / BHMA 613; US10 / BHMA 612; US4 / BHMA 606; US3 / BHMA 605

Straight Pull - Round Ends

RM3614 Specifications (HD Mounting):

Base Metal: Stainless Steel, Brass, Bronze
Diameter: 1-1/4"
Lengths: 8", 11", 16" CTC (center-to-center measurement between mounts)
Projection: 3"
Finishes: US32D / BHMA 630; US32 / BHMA 629; US10B / BHMA 613; US10 / BHMA 612; US4 / BHMA 606; US3 / BHMA 605

RM3624 Specifications (HD Mounting):

Base Metal: Stainless Steel, Brass, Bronze
Diameter: 1-1/2"
Lengths: 11", 16", 20" CTC (center-to-center measurement between mounts)
Projection: 3-1/4"
Finishes: US32D / BHMA 630; US32 / BHMA 629; US10B / BHMA 613; US10 / BHMA 612; US4 / BHMA 606; US3 / BHMA 605

Offset Pull - Square Ends

RM3640 Specifications (HD Mounting):

Base Metal: Stainless Steel, Brass, Bronze
Diameter: 1-1/4"
Lengths: 8", 11", 16" CTC (center-to-center measurement between mounts)
Projection: 2-3/4"
Finishes: US32D / BHMA 630; US32 / BHMA 629; US10B / BHMA 613; US10 / BHMA 612; US4 / BHMA 606; US3 / BHMA 605

RM3650 Specifications (HD Mounting):

Base Metal: Stainless Steel, Brass, Bronze
Diameter: 1-1/2"
Lengths: 11", 16", 20" CTC (center-to-center measurement between mounts)
Projection: 3"
Finishes: US32D / BHMA 630; US32 / BHMA 629; US10B / BHMA 613; US10 / BHMA 612; US4 / BHMA 606; US3 / BHMA 605

Offset Pull - Round Ends

RM3644 Specifications (HD Mounting):

Base Metal: Stainless Steel, Brass, Bronze
Diameter: 1-1/4"
Lengths: 8", 11", 16" CTC (center-to-center measurement between mounts)
Projection: 2-3/4"
Finishes: US32D / BHMA 630; US32 / BHMA 629; US10B / BHMA 613; US10 / BHMA 612; US4 / BHMA 606; US3 / BHMA 605

RM3654 Specifications (HD Mounting):

Base Metal: Stainless Steel, Brass, Bronze
Diameter: 1-1/2"
Lengths: 11", 16", 20" CTC (center-to-center measurement between mounts)
Projection: 3"
Finishes: US32D / BHMA 630; US32 / BHMA 629; US10B / BHMA 613; US10 / BHMA 612; US4 / BHMA 606; US3 / BHMA 605

Straight Push-Pull Set – Square Ends

RM3615 Specifications (HD Mounting):

Base Metal: Stainless Steel, Brass, Bronze
Diameter: 1-1/4"
Lengths: Specify push/pull CTC (center-to-center measurement between mounts)
Projection: 3"
Finishes: US32D / BHMA 630; US32 / BHMA 629; US10B / BHMA 613; US10 / BHMA 612; US4 / BHMA 606; US3 / BHMA 605

RM3625 Specifications (HD Mounting):

Base Metal: Stainless Steel, Brass, Bronze
Diameter: 1-1/2"
Lengths: Specify push/pull CTC (center-to-center measurement between mounts)
Projection: 3-1/4"
Finishes: US32D / BHMA 630; US32 / BHMA 629; US10B / BHMA 613; US10 / BHMA 612; US4 / BHMA 606; US3 / BHMA 605

Straight Push-Pull Set – Round Ends

RM3617 Specifications (HD Mounting):

Base Metal: Stainless Steel, Brass, Bronze
Diameter: 1-1/4"
Lengths: Specify push/pull CTC (center-to-center measurement between mounts)
Projection: 3"
Finishes: US32D / BHMA 630; US32 / BHMA 629; US10B / BHMA 613; US10 / BHMA 612; US4 / BHMA 606; US3 / BHMA 605

RM3627 Specifications (HD Mounting):

Base Metal: Stainless Steel, Brass, Bronze
Diameter: 1-1/2"
Lengths: Specify push/pull CTC (center-to-center measurement between mounts)
Projection: 3-1/4"
Finishes: US32D / BHMA 630; US32 / BHMA 629; US10B / BHMA 613; US10 / BHMA 612; US4 / BHMA 606; US3 / BHMA 605

Offset Push-Pull Set – Square Ends

RM3645 Specifications (HD Mounting):

Base Metal: Stainless Steel, Brass, Bronze
Diameter: 1-1/4"
Lengths: Specify push/pull CTC (center-to-center measurement between mounts)
Projection: 3"
Finishes: US32D / BHMA 630; US32 / BHMA 629; US10B / BHMA 613; US10 / BHMA 612; US4 / BHMA 606; US3 / BHMA 605

RM3655 Specifications (HD Mounting):

Base Metal: Stainless Steel, Brass, Bronze
Diameter: 1-1/2"
Lengths: Specify push/pull CTC (center-to-center measurement between mounts)
Projection: 3-1/4"
Finishes: US32D / BHMA 630; US32 / BHMA 629; US10B / BHMA 613; US10 / BHMA 612; US4 / BHMA 606; US3 / BHMA 605

Straight Push-Pull Set – Round Ends

RM3647 Specifications (HD Mounting):

Base Metal: Stainless Steel, Brass, Bronze
Diameter: 1-1/4"
Lengths: Specify push/pull CTC (center-to-center measurement between mounts)
Projection: 3"
Finishes: US32D / BHMA 630; US32 / BHMA 629; US10B / BHMA 613; US10 / BHMA 612; US4 / BHMA 606; US3 / BHMA 605

RM3657 Specifications (HD Mounting):

Base Metal: Stainless Steel, Brass, Bronze
Diameter: 1-1/2"
Lengths: Specify push/pull CTC (center-to-center measurement between mounts)
Projection: 3-1/4"
Finishes: US32D / BHMA 630; US32 / BHMA 629; US10B / BHMA 613; US10 / BHMA 612; US4 / BHMA 606; US3 / BHMA 605

Push Bar - Square Ends

RM3612 Specifications (HD Mounting):

Base Metal: Stainless Steel, Brass, Bronze
Diameter: 1-1/4"
Lengths: Specify CTC (center-to-center measurement between mounts)
Projection: 3"
Finishes: US32D / BHMA 630; US32 / BHMA 629; US10B / BHMA 613; US10 / BHMA 612; US4 / BHMA 606; US3 / BHMA 605

RM3622 Specifications (HD Mounting):

Base Metal: Stainless Steel, Brass, Bronze
Diameter: 1-1/2"
Lengths: Specify push/pull CTC (center-to-center measurement between mounts)
Projection: 3-1/4"
Finishes: US32D / BHMA 630; US32 / BHMA 629; US10B / BHMA 613; US10 / BHMA 612; US4 / BHMA 606; US3 / BHMA 605

Push Bar - Round Ends

RM3616 Specifications (HD Mounting):

Base Metal: Stainless Steel, Brass, Bronze
Diameter: 1-1/4"
Lengths: Specify CTC (center-to-center measurement between mounts)
Projection: 3"
Finishes: US32D / BHMA 630; US32 / BHMA 629; US10B / BHMA 613; US10 / BHMA 612; US4 / BHMA 606; US3 / BHMA 605

RM3626 Specifications (HD Mounting):

Base Metal: Stainless Steel, Brass, Bronze
Diameter: 1-1/2"
Lengths: Specify CTC (center-to-center measurement between mounts)
Projection: 3-1/4"
Finishes: US32D / BHMA 630; US32 / BHMA 629; US10B / BHMA 613; US10 / BHMA 612; US4 / BHMA 606; US3 / BHMA 605

General Warranty: Rockwood Manufacturing Company warrants that its products when properly delivered, installed and maintained, under normal use and service conditions, will be free from defects in material and workmanship for a period of one year from the date of delivery. Because of variations in atmospheric and climatic conditions, Rockwood does not warrant that its products will maintain a “like new” appearance for any length of time, so this warranty does not extend to the appearance of Rockwood’s products. Rockwood shall have no responsibility other than the repair or replacement of defective products.
