LineaMax Collection

The crisp appearance of the LineaMax Collection makes a beautiful long door pull.

Two post mounted styles – one with solid smooth ends and the other fully grooved, are available in both straight and offset versions (bent end version available as well).

Base metals of brass, bronze, and stainless steel allow a wide variety of finishes.

Available in 1-1/4" and 1-1/2" diameters and any CTC length required.

Designs
Specifications
Finishes
Downloads

RM3701 - straight pull, square ends

1-1/4" diameter; solid ends

Specify 36" to 96" CTC

Over 96" available on select finishes

RM3702 - straight pull, square ends

1-1/2" diameter; solid ends

Specify 36" to 96" CTC

Over 96" available on select finishes

RM3711 - offset pull, square ends

1-1/4" diameter; solid ends

Specify 36" to 96" CTC

Over 96" available on select finishes

RM3712 - offset pull, square ends

1-1/2" diameter; solid ends

Specify 36" to 96" CTC

Over 96" available on select finishes

RM3721 - straight pull, square ends

1-1/4" diameter; fully grooved ends

Specify 36" to 96" CTC

Over 96" available on select finishes

RM3722 - straight pull, square ends

1-1/2" diameter; fully grooved ends

Specify 36" to 96" CTC

Over 96" available on select finishes

RM3731 - offset pull, square ends

1-1/4" diameter; fully grooved ends

Specify 36" to 96" CTC

Over 96" available on select finishes

RM3732 - offset pull, square ends

1-1/2" diameter; fully grooved ends

Specify 36" to 96" CTC

Over 96" available on select finishes

RM3741 - straight pull, bent ends

1-1/4" diameter; fully grooved, heavy duty

Specify 36" to 96" CTC

Over 96" available on select finishes

RM3742 - straight pull, bent ends

1-1/2" diameter; fully grooved, heavy duty

Specify 36" to 96" CTC

Over 96" available on select finishes

RM3751 - straight pull, round ends

1-1/4" diameter; solid ends

Specify 36" to 96" CTC

Over 96" available on select finishes

RM3752 - straight pull, round ends

1-1/2" diameter; solid ends

Specify 36" to 96" CTC

Over 96" available on select finishes

RM3761 - offset pull, round ends

1-1/4" diameter; solid ends

Specify 36" to 96" CTC

Over 96" available on select finishes

RM3762 - offset pull, round ends

1-1/2" diameter; solid ends

Specify 36" to 96" CTC

Over 96" available on select finishes

RM3771 - straight pull, round ends

1-1/4" diameter; fully grooved ends

Specify 36" to 96" CTC

Over 96" available on select finishes

RM3772 - straight pull, round ends

1-1/2" diameter; fully grooved ends

Specify 36" to 96" CTC

Over 96" available on select finishes

RM3781 - offset pull, round ends

1-1/4" diameter; fully grooved ends

Specify 36" to 96" CTC

Over 96" available on select finishes

RM3782 - offset pull, round ends

1-1/2" diameter; fully grooved ends

Specify 36" to 96" CTC

Over 96" available on select finishes

LineaMax Collection Specifications

Most of Rockwood's products are available in a wide variety of architectural finishes. The photographs generally show only one finish for aesthetic reasons, but all traditional architectural finishes are available. The base metal options for the LineaMax Collection are stainless steel, brass or bronze.

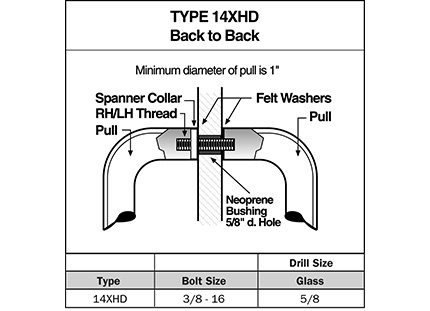

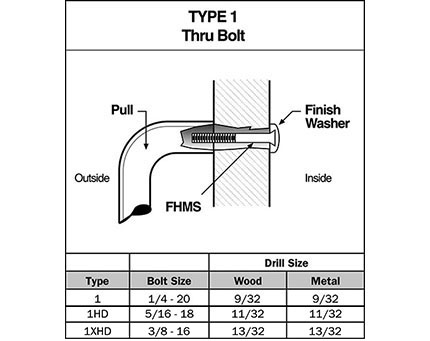

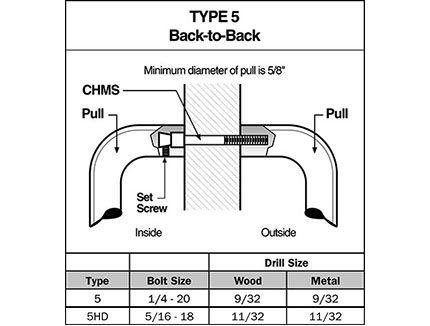

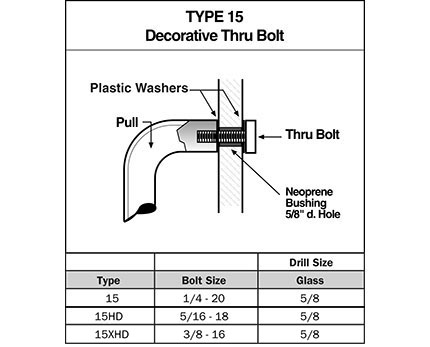

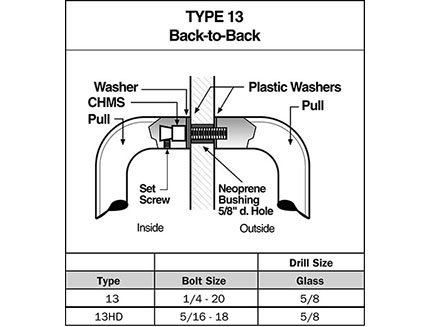

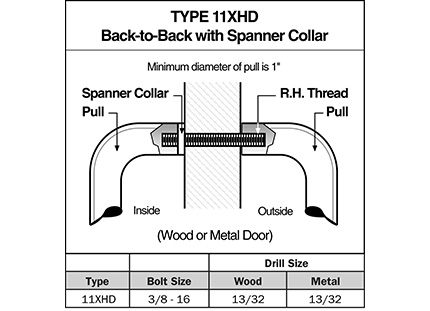

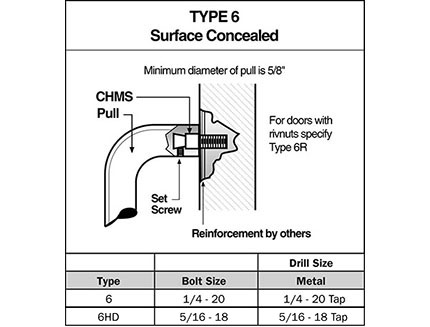

Rockwood Door Pulls – Mounting Types

Rockwood mounting systems firmly attach the pull to the door and are guaranteed for the life of the door. Choose from thrubolt, back-to-back or concealed mountings for wood, metal and glass doors.

Please note the following:

Y base plates are recommended on wood or glass doors to make a stable and durable mounting.
Heavy Duty (HD) mounting features hex drive for positive tightening and large overall size for superior strength. (Recommended for high frequency and rough service openings.)
To specify multi-bar sets, suffix -2 or -3 to pull number (example: RM3512-3).

Options:

For optional mid-post, suffix the product number with "MP" (example: RM3701MP).
Mid-post recommended for maximum rigidity on pulls over 80".
Over 96" CTC available on select finishes.

Application Suggestion

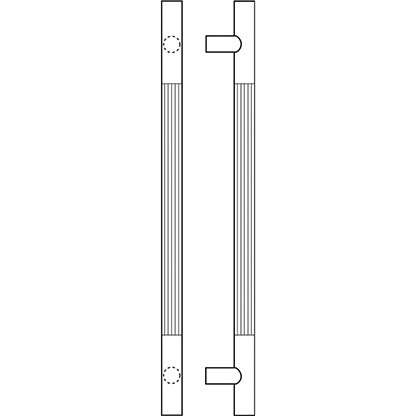

Straight Pull - Solid Square Ends

RM3701 Specifications:

Base Metal: Brass, Bronze, Stainless Steel
Diameter: 1-1/4"
Lengths: 36 to 96" CTC (center-to-center measurement between mounts)
Over 96" available on select finishes
Finishes: US32D / BHMA 630; US32 / BHMA 629; US10B / BHMA 613; US10 / BHMA 612; US4 / BHMA 606; US3 / BHMA 605

RM3702 Specifications:

Base Metal: Brass, Bronze, Stainless Steel
Diameter: 1-1/2"
Lengths: 36 to 96" CTC (center-to-center measurement between mounts)
Over 96" available on select finishes
Finishes: US32D / BHMA 630; US32 / BHMA 629; US10B / BHMA 613; US10 / BHMA 612; US4 / BHMA 606; US3 / BHMA 605

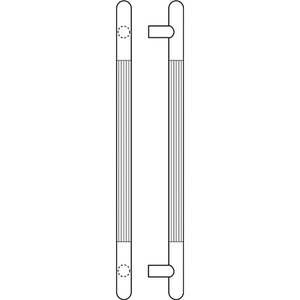

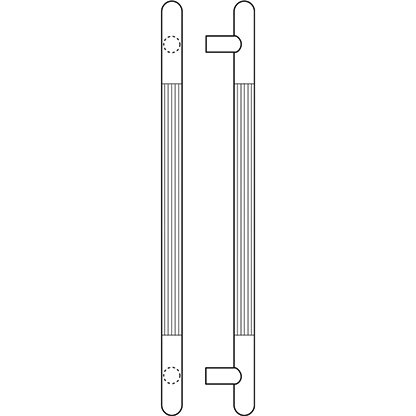

Straight Pull - Solid Round Ends

RM3751 Specifications:

Base Metal: Brass, Bronze, Stainless Steel
Diameter: 1-1/4"
Lengths: 36 to 96" CTC (center-to-center measurement between mounts)
Over 96" available on select finishes
Finishes: US32D / BHMA 630; US32 / BHMA 629; US10B / BHMA 613; US10 / BHMA 612; US4 / BHMA 606; US3 / BHMA 605

RM3752 Specifications:

Base Metal: Brass, Bronze, Stainless Steel
Diameter: 1-1/2"
Lengths: 36 to 96" CTC (center-to-center measurement between mounts)
Over 96" available on select finishes
Finishes: US32D / BHMA 630; US32 / BHMA 629; US10B / BHMA 613; US10 / BHMA 612; US4 / BHMA 606; US3 / BHMA 605

Offset Pull - Solid Square Ends

RM3711 Specifications:

Base Metal: Brass, Bronze, Stainless Steel
Diameter: 1-1/4"
Lengths: 36 to 96" CTC (center-to-center measurement between mounts)
Over 96" available on select finishes
Finishes: US32D / BHMA 630; US32 / BHMA 629; US10B / BHMA 613; US10 / BHMA 612; US4 / BHMA 606; US3 / BHMA 605

RM3712 Specifications:

Base Metal: Brass, Bronze, Stainless Steel
Diameter: 1-1/2"
Lengths: 36 to 96" CTC (center-to-center measurement between mounts)
Over 96" available on select finishes
Finishes: US32D / BHMA 630; US32 / BHMA 629; US10B / BHMA 613; US10 / BHMA 612; US4 / BHMA 606; US3 / BHMA 605

Offset Pull - Solid Round Ends

RM3761 Specifications:

Base Metal: Brass, Bronze, Stainless Steel
Diameter: 1-1/4"
Lengths: 36 to 96" CTC (center-to-center measurement between mounts)
Over 96" available on select finishes
Finishes: US32D / BHMA 630; US32 / BHMA 629; US10B / BHMA 613; US10 / BHMA 612; US4 / BHMA 606; US3 / BHMA 605

RM3762 Specifications:

Base Metal: Brass, Bronze, Stainless Steel
Diameter: 1-1/2"
Lengths: 36 to 96" CTC (center-to-center measurement between mounts)
Over 96" available on select finishes
Finishes: US32D / BHMA 630; US32 / BHMA 629; US10B / BHMA 613; US10 / BHMA 612; US4 / BHMA 606; US3 / BHMA 605

Straight Pull - Fully Grooved Bent Ends

RM3741 Specifications:

Base Metal: Brass, Bronze, Stainless Steel
Diameter: 1-1/4"
Lengths: 36 to 96" CTC (center-to-center measurement between mounts)
Over 96" available on select finishes
Finishes: US32D / BHMA 630; US32 / BHMA 629; US10B / BHMA 613; US10 / BHMA 612; US4 / BHMA 606; US3 / BHMA 605

RM3742 Specifications:

Base Metal: Brass, Bronze, Stainless Steel
Diameter: 1-1/2"
Lengths: 36 to 96" CTC (center-to-center measurement between mounts)
Over 96" available on select finishes
Finishes: US32D / BHMA 630; US32 / BHMA 629; US10B / BHMA 613; US10 / BHMA 612; US4 / BHMA 606; US3 / BHMA 605

Straight Pull - Fully Grooved Square Ends

RM3721 Specifications:

Base Metal: Brass, Bronze, Stainless Steel
Diameter: 1-1/4"
Lengths: 36 to 96" CTC (center-to-center measurement between mounts)
Over 96" available on select finishes
Finishes: US32D / BHMA 630; US32 / BHMA 629; US10B / BHMA 613; US10 / BHMA 612; US4 / BHMA 606; US3 / BHMA 605

RM3722 Specifications:

Base Metal: Brass, Bronze, Stainless Steel
Diameter: 1-1/2"
Lengths: 36 to 96" CTC (center-to-center measurement between mounts)
Over 96" available on select finishes
Finishes: US32D / BHMA 630; US32 / BHMA 629; US10B / BHMA 613; US10 / BHMA 612; US4 / BHMA 606; US3 / BHMA 605

Straight Pull - Fully Grooved Round Ends

RM3771 Specifications:

Base Metal: Brass, Bronze, Stainless Steel
Diameter: 1-1/4"
Lengths: 36 to 96" CTC (center-to-center measurement between mounts)
Over 96" available on select finishes
Finishes: US32D / BHMA 630; US32 / BHMA 629; US10B / BHMA 613; US10 / BHMA 612; US4 / BHMA 606; US3 / BHMA 605

RM3772 Specifications:

Base Metal: Brass, Bronze, Stainless Steel
Diameter: 1-1/2"
Lengths: 36 to 96" CTC (center-to-center measurement between mounts)
Over 96" available on select finishes
Finishes: US32D / BHMA 630; US32 / BHMA 629; US10B / BHMA 613; US10 / BHMA 612; US4 / BHMA 606; US3 / BHMA 605

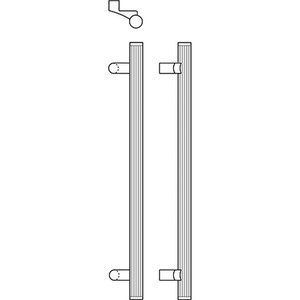

Offset Pull - Fully Grooved Square Ends

RM3731 Specifications:

Base Metal: Brass, Bronze, Stainless Steel
Diameter: 1-1/4"
Lengths: 36 to 96" CTC (center-to-center measurement between mounts)
Over 96" available on select finishes
Finishes: US32D / BHMA 630; US32 / BHMA 629; US10B / BHMA 613; US10 / BHMA 612; US4 / BHMA 606; US3 / BHMA 605

RM3732 Specifications:

Base Metal: Brass, Bronze, Stainless Steel
Diameter: 1-1/2"
Lengths: 36 to 96" CTC (center-to-center measurement between mounts)
Over 96" available on select finishes
Finishes: US32D / BHMA 630; US32 / BHMA 629; US10B / BHMA 613; US10 / BHMA 612; US4 / BHMA 606; US3 / BHMA 605

Offset Pull - Fully Grooved Round Ends

RM3781 Specifications:

Base Metal: Brass, Bronze, Stainless Steel
Diameter: 1-1/4"
Lengths: 36 to 96" CTC (center-to-center measurement between mounts)
Over 96" available on select finishes
Finishes: US32D / BHMA 630; US32 / BHMA 629; US10B / BHMA 613; US10 / BHMA 612; US4 / BHMA 606; US3 / BHMA 605

RM3782 Specifications:

Base Metal: Brass, Bronze, Stainless Steel
Diameter: 1-1/2"
Lengths: 36 to 96" CTC (center-to-center measurement between mounts)
Over 96" available on select finishes
Finishes: US32D / BHMA 630; US32 / BHMA 629; US10B / BHMA 613; US10 / BHMA 612; US4 / BHMA 606; US3 / BHMA 605

General Warranty: Rockwood Manufacturing Company warrants that its products when properly delivered, installed and maintained, under normal use and service conditions, will be free from defects in material and workmanship for a period of one year from the date of delivery. Because of variations in atmospheric and climatic conditions, Rockwood does not warrant that its products will maintain a “like new” appearance for any length of time, so this warranty does not extend to the appearance of Rockwood’s products. Rockwood shall have no responsibility other than the repair or replacement of defective products.
