GeoMetek Collection

Door Pulls That Go Beyond
The Ordinary

Rockwood has expanded their GeoMetek Collection with the addition of offset, leather wrapped and wood grip door pulls.

These tubular square and rectangular pulls offer a narrow profile and clean lines. Two shapes in two designs allow you to scale a pull to any size opening; custom sizes available.

GeoMetek architectural door pulls are a must-have element to a divinely designed interior.

Offset GeoMetek Pulls

The square and rectangular shapes of the GeoMetek Collection offer a narrow profile and clean lines. The new offset versions are best shown in pairs.

Upholstery Leather GeoMetek Pulls

These door pulls are beautifully crafted and use 3 to 4 ounce leather. The leather is tightly wrapped and neatly sewn on the back. If you are looking for something unique, ask for reverse stitching; the beautiful threads will be displayed on the front! There are two standard leather colors to choose from, or request custom color options to match any interior.

Wood Grip ArborMet GeoMetek Pulls

The hybrid ArborMet wood grip pulls feel warm to the touch and combines beautifully with the shapes of the GeoMetek Collection. The grip is comprised of select dyed hardwood veneers to produce a strong, durable solid wood element.

Don't forget about matching square accessories! A square coat hook, floor stop and wall stop are available to complement the GeoMetek Collection.

Leathers
Designs
Specifications
Finishes
Options
Downloads

U-DBRN

Dark Brown

Upholstery Leather

U-BLK

Black

Upholstery Leather

Custom Leather

Limitless varieties of leather designs and colors

Consult with Penner

LP6440 - locking pull, leather wrap

1-1/4" square post

For 3/8" to 1" thick glass doors, or 1-3/4" to 2-1/2" thick aluminum, hollow metal or wood doors

Key operates from outside

LP7901 - locking pull, smooth grip

1-1/4" square post

For 3/8" to 1" thick glass doors, or 1-3/4" to 2-1/2" thick aluminum, hollow metal or wood doors

Key operates from outside

RM4060 - straight square grip

3/4" grip, wood veneer

10", 12" CTC

2-1/4" projection

RM4062 - offset square grip

3/4" grip, wood veneer

10", 12" CTC

2-1/4" projection

RM4064 - straight rectangular grip

3/4" x 1-1/4" grip, wood veneer

11", 16" CTC

3-1/4" projection

RM4066 - offset rectangular grip

3/4" x 1-1/4" grip, wood veneer

11", 16" CTC

3-1/4" projection

RM4068 - straight square grip

1-1/4" x 1-1/4" grip, wood veneer

11", 16", 20" CTC

3" projection

RM6400 - straight square grip

3/4" x 3/4" grip, leather

11", 16", up to 48" CTC

2-1/4" projection

RM6410 - straight rectangular grip

3/4" x 1-1/2" grip, leather

11", 16", 20", up to 96" CTC

3-1/4" projection

RM6420 - offset square grip

3/4" x 3/4" grip, leather

11", 16", up to 48" CTC

2-1/4" projection

RM6430 - offset rectangular grip

3/4" x 1-1/2" grip, leather

11", 16", 20", up to 96" CTC

3-1/4" projection

RM6440 straight square grip

1-1/4" x 1-1/4" grip, leather

11", 16", up to 48" CTC

3" projection

RM7900 - square end pulls

3/4" x 3/4" grip

6", 8", 11", 16", up to 48" CTC

2-1/4" projection

RM7902 - square bridge pull

3/4" x 3/4" grip

6", 8", 11", 16", up to 48" CTC

2-1/4" projection

RM7910 - rectangular end pull

3/4" x 1-1/2" grip

11", 16", up to 96" CTC

3" projection

RM7912 - rectangular bridge pull

3/4" x 1-1/2" grip

11", 16", 20", up to 96" CTC

3" projection

RM7920 - offset pulls

3/4" x 3/4" grip

6", 8", 11", 16", up to 48" CTC

2-1/4" projection

RM7930 - offset pulls

3/4" x 1-1/4" grip

11", 16", 20", up to 96" CTC

3-1/4" projection

GeoMetek Collection Specifications

Most of Rockwood's products are available in a wide variety of architectural finishes. The photographs generally show only one finish for aesthetic reasons, but all traditional architectural finishes are available. The base metal for the GeoMetek Collection is stainless steel.

Leather Maintenance

All pulls leave our factory with an initial coating of leather dressing. We recommend periodic application of a good leather conditioner such as Mermac Mink Oil. Frequency of maintenance depends on exposure to weather and wear. Mermac will darken the leather about the same as a drop of water. Test a small spot prior to using to verify the slight color change that naturally occurs is appealing.

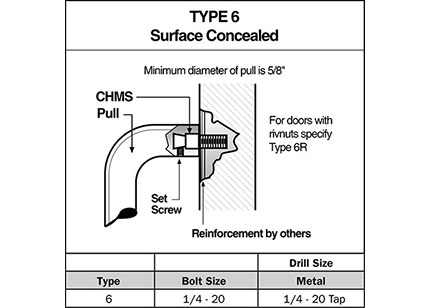

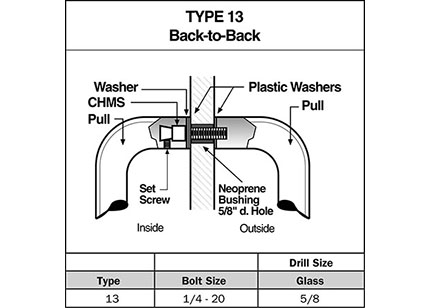

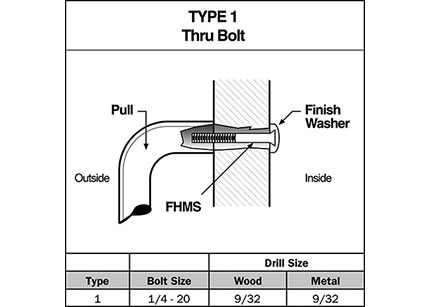

Rockwood Door Pulls – Mounting Types

Rockwood mounting systems firmly attach the pull to the door and are guaranteed for the life of the door. Choose from thrubolt, back-to-back or concealed mountings for wood, metal and glass doors.

Please note the following:

Y base plates are recommended on wood or glass doors to make a stable and durable mounting.
Heavy Duty (HD) mounting features hex drive for positive tightening and large overall size for superior strength. (Recommended for high frequency and rough service openings.)

Options:

For optional mid-post, suffix the product number with "MP" (example: RM7900MP).
Mid-post recommended for maximum rigidity on pulls over 80".
Over 96" CTC available on select finishes.

Application Suggestions

Square End Pulls

RM7900 Specifications:

Base Metal: Stainless Steel
Material: 3/4" x 3/4"
Lengths: 6", 8", 11", 16", up to 48" CTC available (center-to-center measurement between mounts)
Projection: 2-1/4"
Finishes: US32/BHMA 629 - Bright Stainless Steel; or US32D/BHMA 630 - Satin Stainless Steel

Square Bridge Pull

RM7902 Specifications:

Base Metal: Stainless Steel
Material: 3/4" x 3/4"
Lengths: 6", 8", 11", 16", up to 48" CTC available (center-to-center measurement between mounts)
Projection: 2-1/4"
Finishes: US32/BHMA 629 - Bright Stainless Steel; or US32D/BHMA 630 - Satin Stainless Steel

Rectangular End Pull

RM7910 Specifications:

Base Metal: Stainless Steel
Material: 3/4" x 1-1/2"
Lengths: 11", 16", 20", up to 96" CTC available (center-to-center measurement between mounts)
Projection: 3"
Finishes: US32/BHMA 629 - Bright Stainless Steel; or US32D/BHMA 630 - Satin Stainless Steel

Rectangular Bridge Pull

RM7912 Specifications:

Base Metal: Stainless Steel
Material: 3/4" x 1-1/2"
Lengths: 11", 16", 20", up to 96" CTC available (center-to-center measurement between mounts)
Projection: 3"
Finishes: US32/BHMA 629 - Bright Stainless Steel; or US32D/BHMA 630 - Satin Stainless Steel

Offset Pulls

RM7920 Specifications:

Base Metal: Stainless Steel
Material: 3/4" x 3/4"
Projection: 2-1/4"
Lengths: 6", 8", 11", 16", up to 48" CTC available (center-to-center measurement between mounts)
Finishes: US32/BHMA 629 - Bright Stainless Steel; or US32D/BHMA 630 - Satin Stainless Steel

RM7930 Specifications:

Base Metal: Stainless Steel
Material: 3/4" x 1-1/4"
Projection: 3-1/4"
Lengths: 11", 16", 20", up to 96" CTC available (center-to-center measurement between mounts)
Finishes: US32/BHMA 629 - Bright Stainless Steel; or US32D/BHMA 630 - Satin Stainless Steel

General Warranty: Rockwood Manufacturing Company warrants that its products when properly delivered, installed and maintained, under normal use and service conditions, will be free from defects in material and workmanship for a period of one year from the date of delivery. Because of variations in atmospheric and climatic conditions, Rockwood does not warrant that its products will maintain a “like new” appearance for any length of time, so this warranty does not extend to the appearance of Rockwood’s products. Rockwood shall have no responsibility other than the repair or replacement of defective products.
