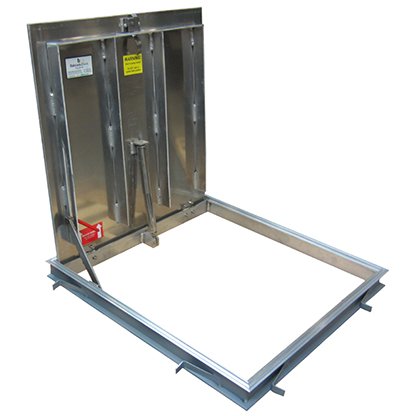

Floor Doors

Babcock-Davis' Floor Door product offering includes a variety of floor, vault and sidewalk doors to provide reliable and safe access below ground and between building floors.

  • Designs
  • Specifications
  • Downloads
  • Finishes
  • Options

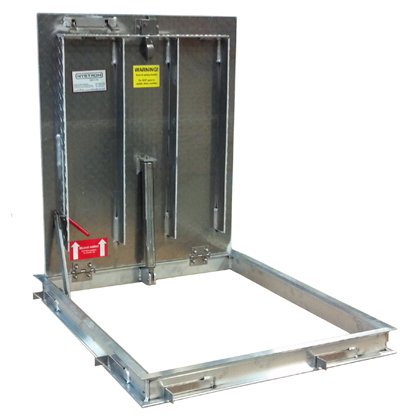

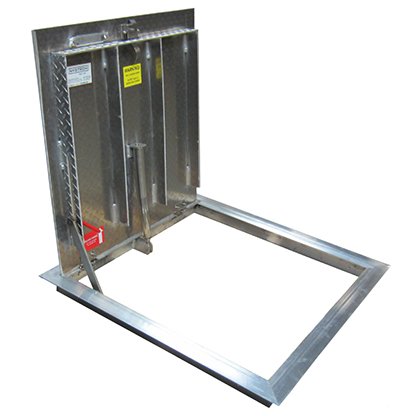

BFDDP - drainable, pedestrian





Close

BFDDP - drainable, pedestrian

Pedestrian 300psf live load

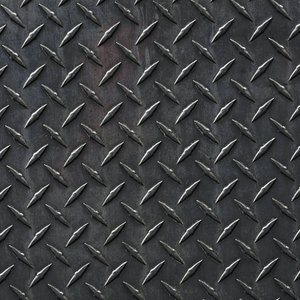

Diamond tread plate with latch & Hold-Open Arm

Formed gutter frame

Aluminum or steel

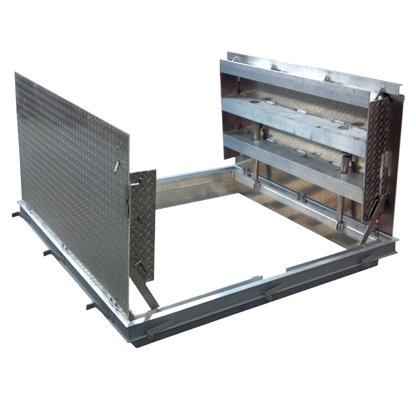

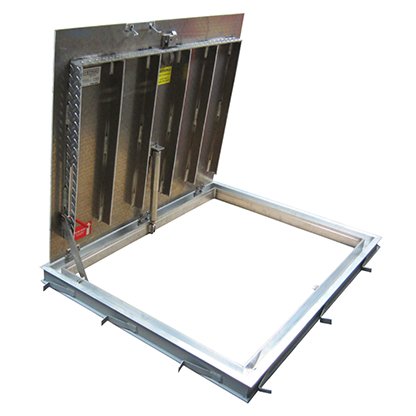

BFDDH - drainable, H20





Close

BFDDH - drainable, H20

H20 wheel load for infrequent, off-street traffic

Diamond tread plate with latch & Hold-Open Arm

Formed gutter frame

Aluminum or steel

BFDN - non-drainable





Close

BFDN - non-drainable

Pedestrian 300psf live load,
or H20 wheel load for infrequent, off-street traffic

Diamond tread plate with latch & Hold-Open Arm

Angle frame

Aluminum or steel

BFDE - existing opening





Close

BFDE - existing opening

Pedestrian 300psf live load

Diamond tread plate with latch & Hold-Open Arm

Drop-in angle frame

Aluminum or steel

BFDR - recessed





Close

BFDR - recessed

Pedestrian 300psf live load

Recessed cover with latch & Hold-Open Arm

Angle frame, formed channel (hinge side)

Aluminum or steel

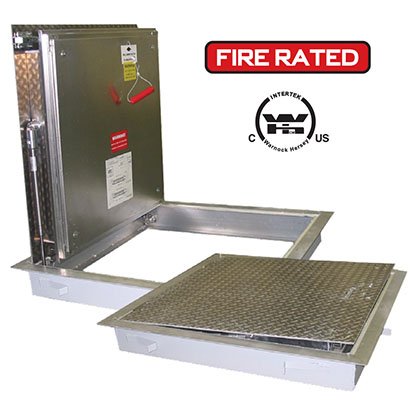

BF - fire rated





Close

BF - fire rated

2 hr & 3 hr, 300psf live load

Diamond tread plate with latch & Hold-Open Arm

Angle frame

Aluminum material

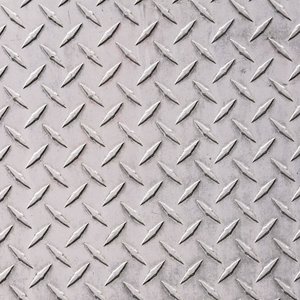

A - aluminum





Close

A - aluminum

(Type 6061-T6)

Standard material which is highly resistant to corrosion

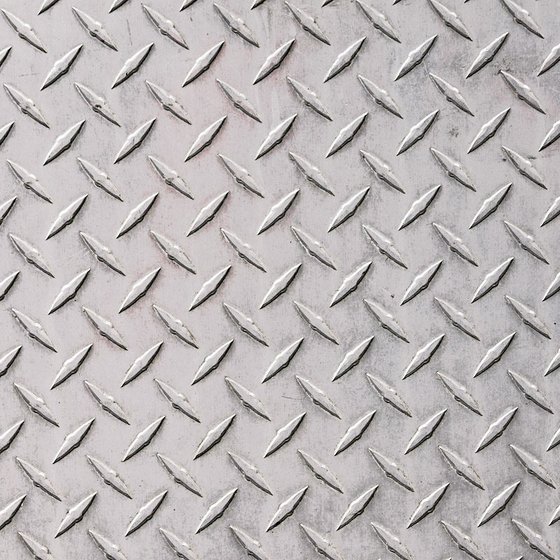

C - clear anodized aluminum





Close

C - clear anodized aluminum

(Type 6061-T6)

Greater corrosion resistance with an attractive finished appearance

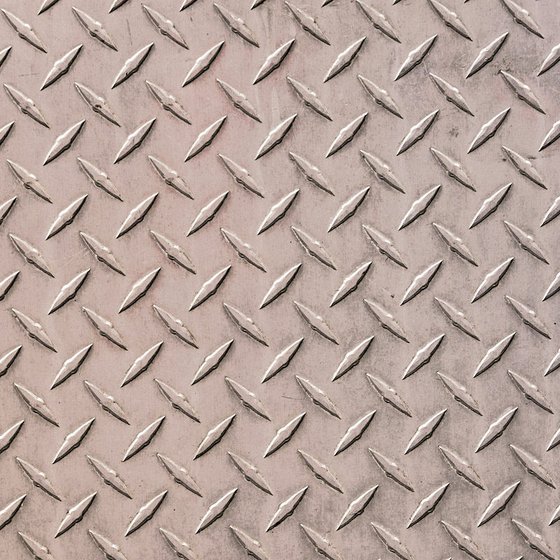

P - prime painted steel





Close

P - prime painted steel

Economical alternative to aluminum for interior applications

Prime coated with a rust inhibitive for finish painting

S - stainless steel #304





Close

S - stainless steel #304

Used in applications where certain corrosive chemicals may affect aluminum and steel

T - stainless steel #316





Close

T - stainless steel #316

Maximum level of corrosion resistance available

Non-skid tape provides a high traction surface

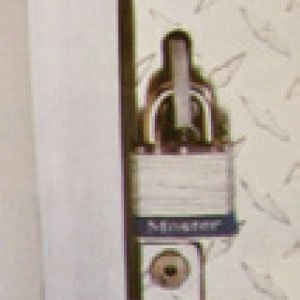

PH - padlock hasp





Close

PH - padlock hasp

Hasp through door

Simple hasp through floor door that allows door to be locked by a padlock

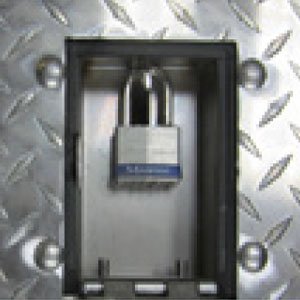

PR - recessed padlock hasp





Close

PR - recessed padlock hasp

Recessed hasp with hinged cover

Security and traffic applications: concealed hasp under lid that is flush with door

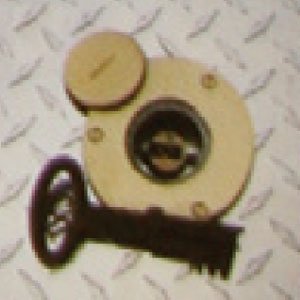

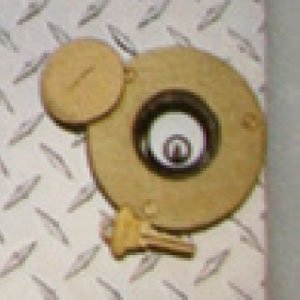

M - mortise cam lock





Close

M - mortise cam lock

High security option that allows door to receive a mortise cylinder

D - detention lock





Close

D - detention lock

Maximum security application: floor door is prepared to receive a detention deadbolt lock

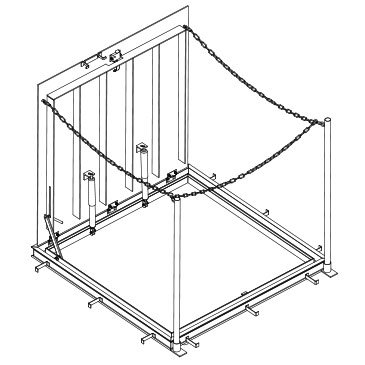

SC - safety chain





Close

SC - safety chain

Safety barrier, using permanent upright posts and proof coil chains

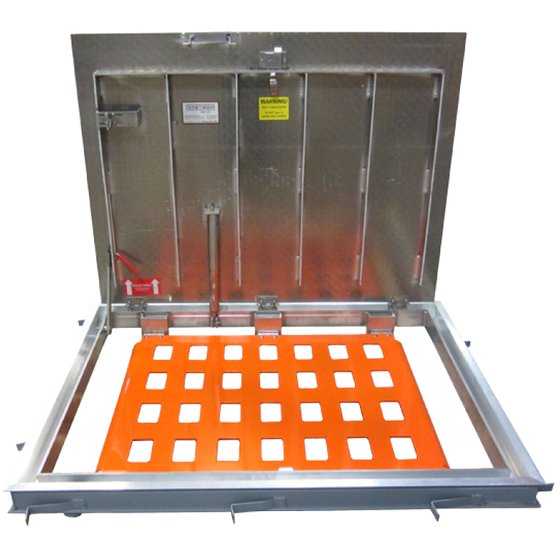

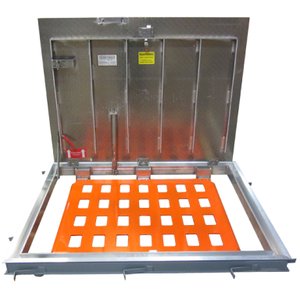

SG - safety grate





Close

SG - safety grate

Safety grate fall protection

Factory-installed; single or double doors

Aluminum powdercoated orange plate & Fiber Reinforced Plastic (FRP) yellow material

Hold-Open latch; optional hasp

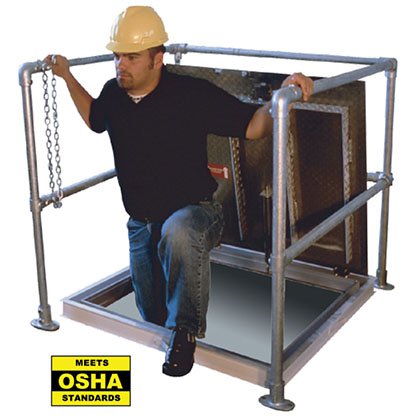

SR - safety railing





Close

SR - safety railing

OSHA Standards

1-1/4" galvanized steel pipe; cast aluminum fittings

3/16" proof coil chain; self closing gate

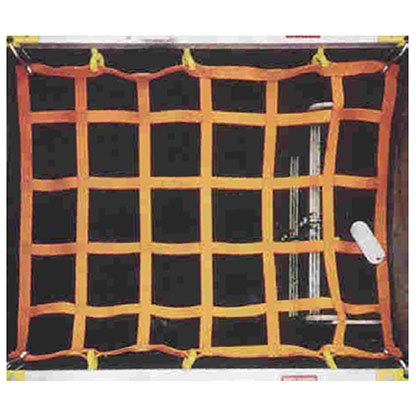

SN - safety netting





Close

SN - safety netting

Open hatch fall protection

Extruded aluminum with orange polyester (5,000 lb breaking strength)

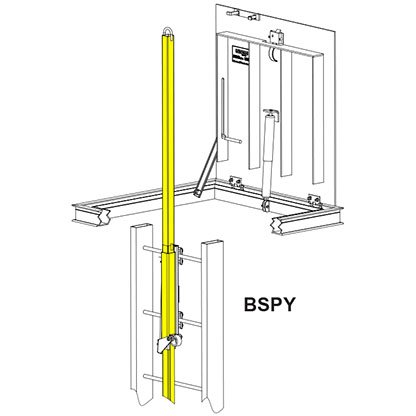

BSP - safety post





Close

BSP - safety post

1-1/2” square tubing; stainless steel clamps

Material & finish choices:
Y - steel, yellow powdercoat
G - steel, hot dip galvanized
A - aluminum, mill
S - stainless steel, mill
