CenTek Collection

CenTek Collection Specifications

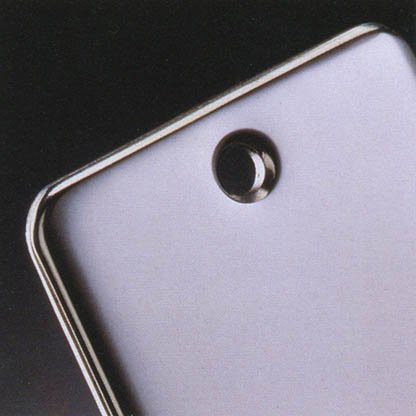

Most of Rockwood's products are available in a wide variety of architectural finishes. The photographs generally show only one finish for aesthetic reasons, but all traditional architectural finishes are available. The base metal options for the CenTek Collection are aluminum, stainless1 steel, brass or bronze.

Rockwood Door Pulls – Mounting Types

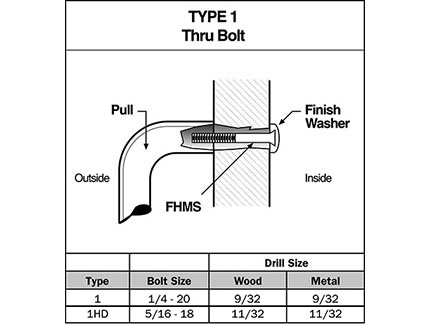

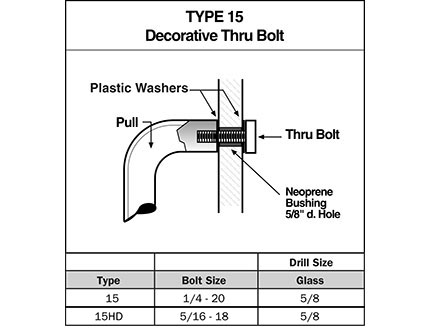

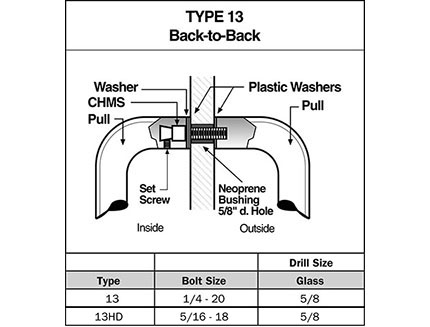

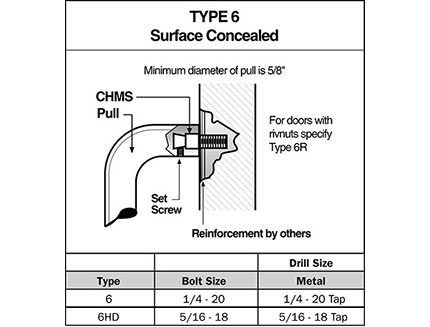

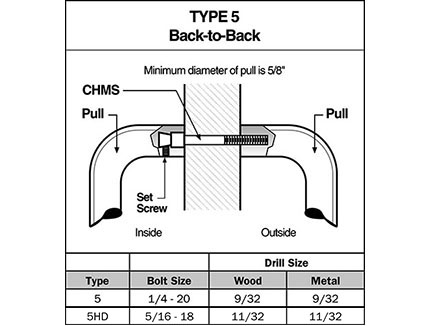

Rockwood mounting systems firmly attach the pull to the door and are guaranteed for the life of the door. Choose from thrubolt, back-to-back or concealed mountings for wood, metal and glass doors.

Please note the following:

• Y base plates are recommended on wood or glass doors to make a stable and durable mounting.

• Heavy Duty (HD) mounting features hex drive for positive tightening and large overall size for superior strength. (Recommended for high frequency and rough service openings.)


RM4300 Specifications (HD Mounting):

• Base Metal: Aluminum, Brass, Bronze, Stainless Steel
• Diameter: 1"
• Length: 42" CTC (center-to-center measurement between mounts)
• Projection: 3"
• Finishes: US32D / BHMA 630; US32 / BHMA 629; US10B / BHMA 613; US10 / BHMA 612; US4 / BHMA 606; US3 / BHMA 605

RM4301 Specifications (HD Mounting):

• Base Metal: Aluminum, Brass, Bronze, Stainless Steel
• Diameter: 1"
• Length: 42" CTC (center-to-center measurement between mounts)
• Projection: 3"
• Finishes: US32D / BHMA 630; US32 / BHMA 629; US10B / BHMA 613; US10 / BHMA 612; US4 / BHMA 606; US3 / BHMA 605

RM4302 Specifications (HD Mounting):

• Base Metal: Aluminum, Brass, Bronze, Stainless Steel
• Diameter: 1"
• Length: 42" CTC (center-to-center measurement between mounts)
• Projection: 3"
• Finishes: US32D / BHMA 630; US32 / BHMA 629; US10B / BHMA 613; US10 / BHMA 612; US4 / BHMA 606; US3 / BHMA 605

RM4303 Specifications (HD Mounting):

• Base Metal: Aluminum, Brass, Bronze, Stainless Steel
• Diameter: 1"
• Length: 42" CTC (center-to-center measurement between mounts)
• Projection: 3"
• Finishes: US32D / BHMA 630; US32 / BHMA 629; US10B / BHMA 613; US10 / BHMA 612; US4 / BHMA 606; US3 / BHMA 605

RM4304 Specifications (HD Mounting):

• Base Metal: Aluminum, Brass, Bronze, Stainless Steel
• Diameter: 1"
• Length: 42" CTC (center-to-center measurement between mounts)
• Projection: 3"
• Finishes: US32D / BHMA 630; US32 / BHMA 629; US10B / BHMA 613; US10 / BHMA 612; US4 / BHMA 606; US3 / BHMA 605

RM4305 Specifications (HD Mounting):

• Base Metal: Aluminum, Brass, Bronze, Stainless Steel
• Diameter: 1"
• Length: 42" CTC (center-to-center measurement between mounts)
• Projection: 3"
• Finishes: US32D / BHMA 630; US32 / BHMA 629; US10B / BHMA 613; US10 / BHMA 612; US4 / BHMA 606; US3 / BHMA 605

General Warranty: Rockwood Manufacturing Company warrants that its products when properly delivered, installed and maintained, under normal use and service conditions, will be free from defects in material and workmanship for a period of one year from the date of delivery. Because of variations in atmospheric and climatic conditions, Rockwood does not warrant that its products will maintain a “like new” appearance for any length of time, so this warranty does not extend to the appearance of Rockwood’s products. Rockwood shall have no responsibility other than the repair or replacement of defective products.
