LS Series

Daybar’s LS Series of doors combine quality features in a competitive package.

Built with pride in Canada, these pre-machined doors are galvannealed steel with standard honeycomb core—ideally suited for commercial and industrial applications. LS Series Doors are manufactured to industry standards as specified by the Canadian Steel Door Manufacturer's Association (CSDMA).


  • Designs
  • Specifications
  • Downloads
  • Cores
  • Glass
  • Options
  • Prep

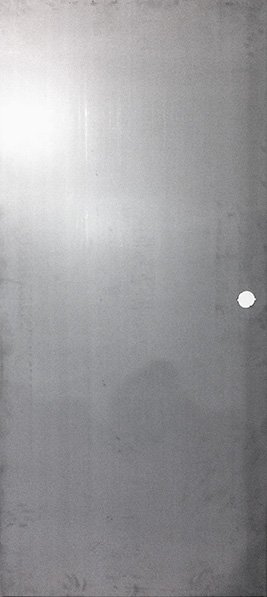

Hollow Metal Door





Close

Hollow Metal Door

  • Lock seam and beveled edge

  • A40 galvanneal steel (A60 available)

  • 20, 18 or 16 gauge

  • Honeycomb core – standard

  • Insulated core options: rigid polystyrene or polyurethane

  • Temperature rise rated core – optional

  • Hinge reinforcement: 7 gauge galvanneal steel

  • Widths: 2/0 to 4/0, in 2" increments as standard

  • Height: 6/8 to 8/0, in 2" increments as standard

  • Custom, non-standard and oversize also available

  • Fire rated 45-90-180 minute

  • 1 year limited warranty

  • Standard pre-machining

Honeycomb (Standard)





Close

Honeycomb (Standard)

R-value 2.5

STC rating 32

Rigid Polystyrene





Close

Rigid Polystyrene

R-value 6.6

STC rating 34

Polyurethane





Close

Polyurethane

R-value 11.1

STC rating 34

Steel Stiffened





Close

Steel Stiffened

Stiffened, laminated

R-value 1.2

STC rating 24

Temperature Rise





Close

Temperature Rise

Inorganic based composite; woven fiberglass both sides

R-value: 3.25

STC 35

Clear Tempered





Close

Clear Tempered

1/4" thickness (uninsulated door)
or 1" sealed unit (insulated door)

Fire Rated





Close

Fire Rated

1/4" thickness (uninsulated door)
or 1" sealed unit (insulated door)

Specify 45-90-180 minute

Georgian Wire





Close

Georgian Wire

1/4" thickness (uninsulated door)
or 1" sealed unit (insulated door)

Glazing configurations





Close

Glazing configurations

- Vision lite
- Narrow lite
- Long narrow lite
- Double narrow lite
- Half glass
- Full glass
- Full glass with rail
- Multiple lite

*Glazing limitations on labelled doors

Steel top cap





Close

Steel top cap

Thermoplane - glazing kit





Close

Thermoplane - glazing kit

Door glazing kit
(glass not included)

WHI Listed - glazing kit





Close

WHI Listed - glazing kit

Snap-in door glazing kit
(glass not included)

Z astragal





Close

Z astragal

161 Door





Close

161 Door

Cylinder cutout with barrel support

Closer Reinforced





Close

Closer Reinforced

14 ga closer reinforcement

Closer reinforcing top & bottom on blank doors, and 6/8 with 161 locks

Mortise Lock





Close

Mortise Lock

Includes lock centering guide

Rim Panic





Close

Rim Panic

Panic reinforcing channel

Surface applied, surface bolt, or vertical rod
